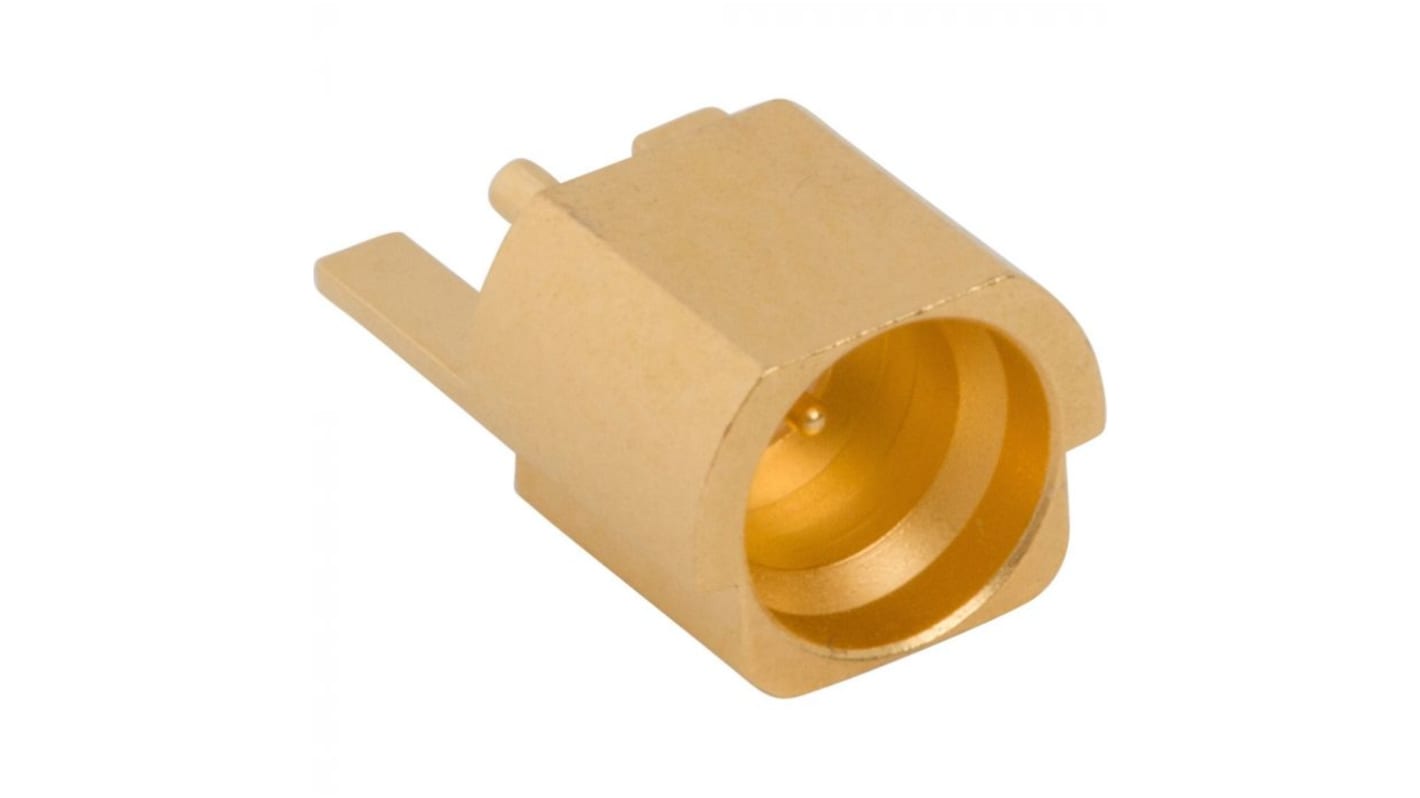

Amphenol RF RF Connector End Launch Female SMP, 50 Ω, Straight Body Solder
- RS Stock No.:
- 253-0138
- Mfr. Part No.:
- SMP-MSLD-PCE-5T
- Brand:
- Amphenol RF
Subtotal (1 reel of 1000 units)*
£2,712.00
(exc. VAT)
£3,254.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £2.712 | £2,712.00 |
*price indicative
- RS Stock No.:
- 253-0138
- Mfr. Part No.:
- SMP-MSLD-PCE-5T
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol RF | |
| Coaxial Connector Type | SMP | |
| Product Type | RF Connector | |
| Mount Type | End Launch | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Cable Type | Coaxial | |
| Bulkhead | Yes | |
| Operating Frequency | 18GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Gold | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 165°C | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Amphenol RF | ||
Coaxial Connector Type SMP | ||
Product Type RF Connector | ||
Mount Type End Launch | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Operating Frequency 18GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Termination Type Solder | ||
Maximum Operating Temperature 165°C | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
The Amphenol RF SMP straight connector is made of brass body material and has 50 ohm Impedance. This Amphenol RF connectors are the most sought after solution for industries and applications which involve RF circuits. It has all the necessary compliance required to be qualified for application as per manufacturers documentation.
Contact material beryllium copper
Size category micro miniature
RoHS (EU) compliant
