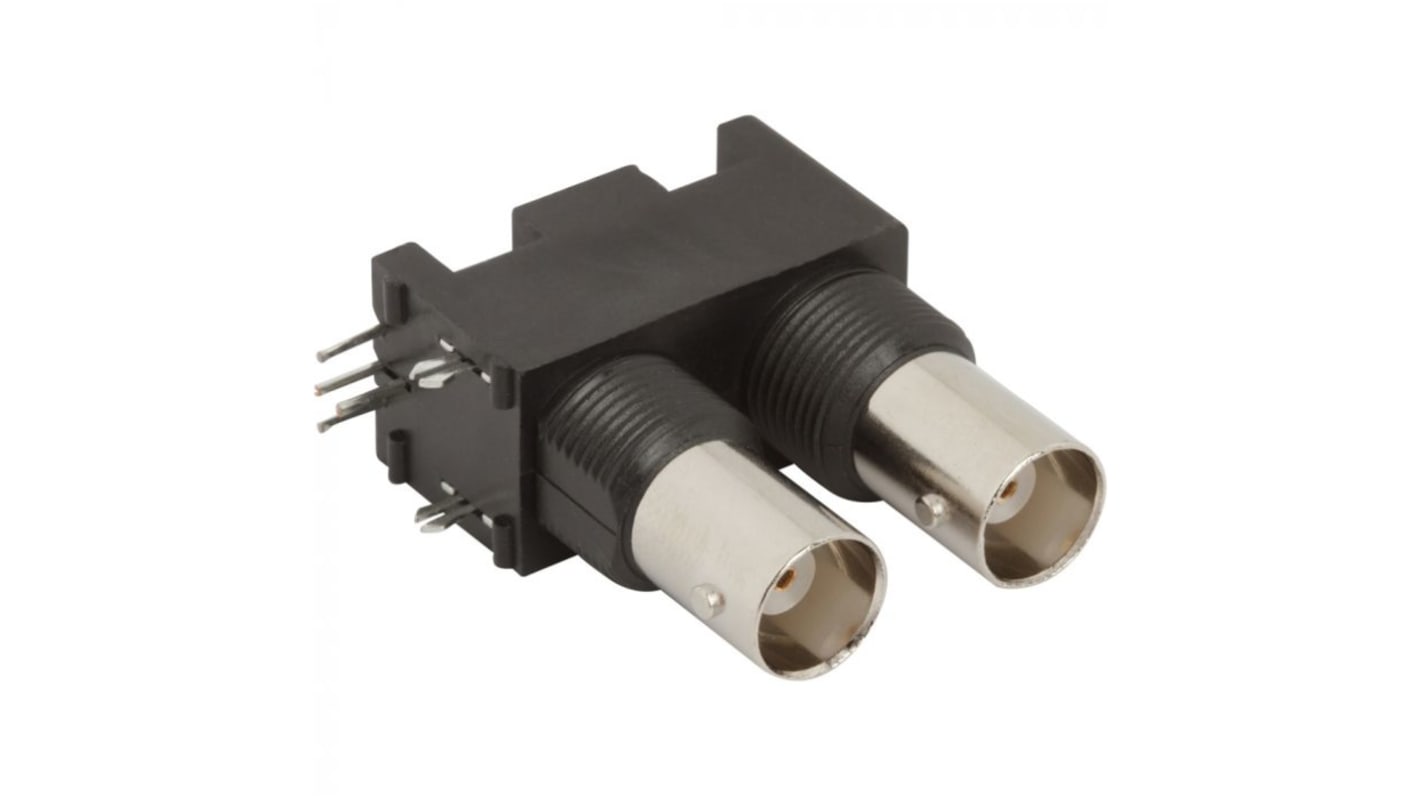

Amphenol RF Bulkhead Female BNC, 50 Ω, Right Angle Body Solder
- RS Stock No.:
- 253-0059
- Mfr. Part No.:
- 031-6575
- Brand:
- Amphenol RF
Bulk discount available
Subtotal (1 unit)*
£5.97
(exc. VAT)
£7.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.97 |
| 10 - 99 | £5.71 |
| 100 - 249 | £5.55 |
| 250 + | £5.41 |
*price indicative
- RS Stock No.:
- 253-0059
- Mfr. Part No.:
- 031-6575
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol RF | |
| Coaxial Connector Type | BNC | |
| Product Type | RF Connector | |
| Mount Type | Bulkhead | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Right Angle | |
| Cable Type | Coaxial | |
| Bulkhead | Yes | |
| Operating Frequency | 1 GHz | |
| Minimum Operating Temperature | -55°C | |
| Body Plating | Nickel | |
| Maximum Operating Temperature | 85°C | |
| Termination Type | Solder | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold Plated | |
| Select all | ||
|---|---|---|
Brand Amphenol RF | ||
Coaxial Connector Type BNC | ||
Product Type RF Connector | ||
Mount Type Bulkhead | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Right Angle | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Operating Frequency 1 GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Nickel | ||
Maximum Operating Temperature 85°C | ||
Termination Type Solder | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold Plated | ||
- COO (Country of Origin):
- TW
The Amphenol RF BNC right angle jack connectors are made of zinc die cast body material and has 50 ohm impedance. This jack connectors used in establishing connections with the connectors. It has all the necessary compliance required to be qualified for application as per manufacturers documentation.
Frequency supports up to 1 GHz
Insulator Material Polypropylene
Size Category miniature
