RS PRO, Jack Cable Mount MMCX Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 246-9490
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.93
(exc. VAT)
£7.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 867 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.93 |
5 - 9 | £5.74 |
10 - 24 | £5.53 |
25 + | £5.24 |
*price indicative
- RS Stock No.:
- 246-9490
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Gender | Female | |
Coaxial Connector Type | MMCX Connector | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Right Angle | |
Cable Type | RG174/U | |
Operating Frequency | 3GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -45°C | |
Maximum Operating Temperature | +165°C | |
Series | MMCX | |
Contact Material | Phosphor Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type MMCX Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type RG174/U | ||
Operating Frequency 3GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +165°C | ||
Series MMCX | ||
Contact Material Phosphor Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

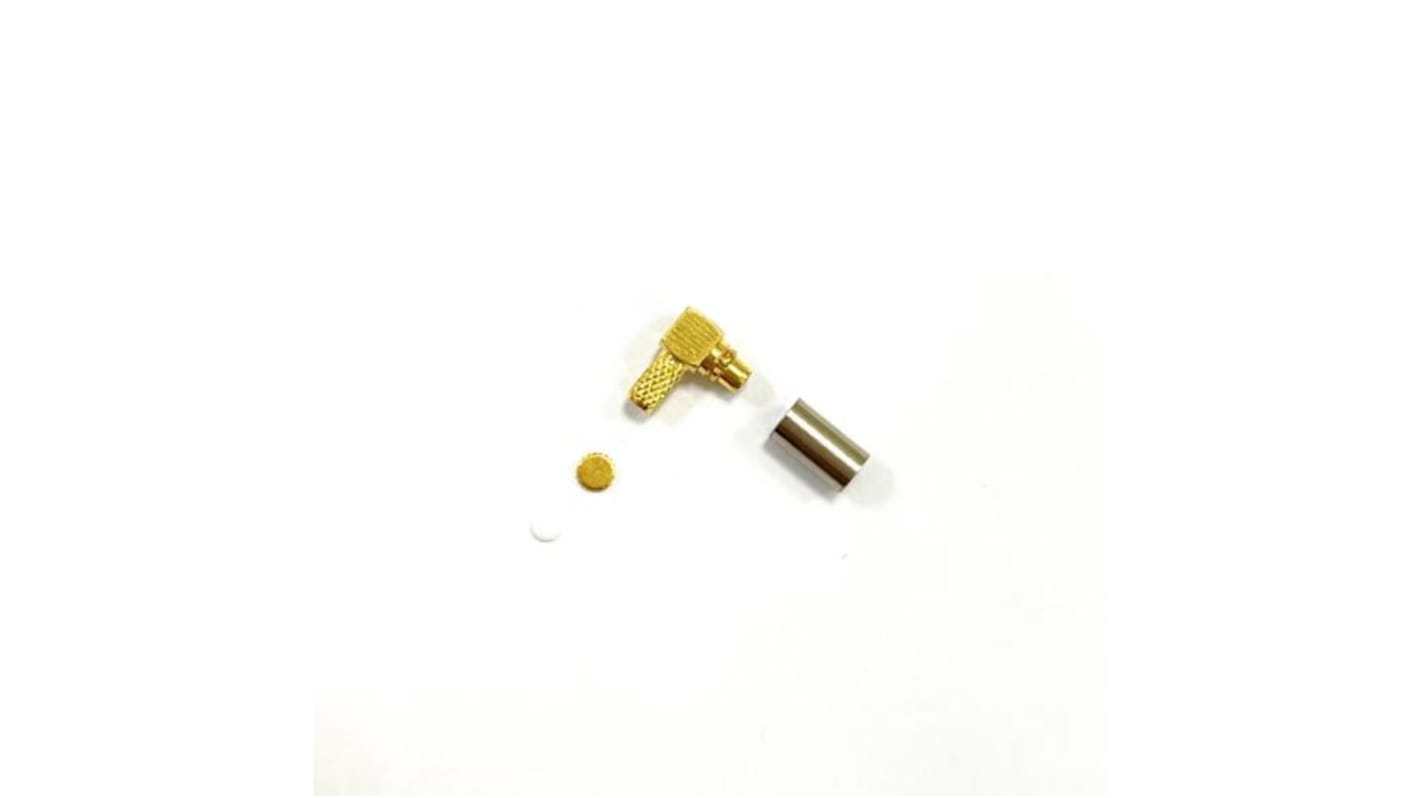

RS PRO Right Angle Cable Mount MMCX Connector Jack, RG174/U
A right angle cable mount MMCX (micro-miniature coxial) connector designed for use with RG174/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF).
As a MMCX connector the RS PRO MMCX Connector jack is similar in design to the MCX connectors but with a considerably smaller footprint and are ideally suited to applications with limited PCB board space. RS PRO MMCX connectors are designed with a snap-on mechanism allowing 360° rotation for quick tool free removal of cables.
MMCX connectors feature low RF leakage are often use in applications including Wireless devices, GPS receivers, telecommunication, WiFi PCMCIA Cards.
The RS PRO MMCX coax connector features a 3 GHz frequency range and includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
As a MMCX connector the RS PRO MMCX Connector jack is similar in design to the MCX connectors but with a considerably smaller footprint and are ideally suited to applications with limited PCB board space. RS PRO MMCX connectors are designed with a snap-on mechanism allowing 360° rotation for quick tool free removal of cables.
MMCX connectors feature low RF leakage are often use in applications including Wireless devices, GPS receivers, telecommunication, WiFi PCMCIA Cards.
The RS PRO MMCX coax connector features a 3 GHz frequency range and includes PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
Features and Benefits
- For use with RG174/U coax cable
- Right angle orientation
- Cable mount
- Crimp termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
