RS PRO, Plug PCB Mount SMB Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 246-9424
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£4.82
(exc. VAT)
£5.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 508 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.82 |
| 5 - 9 | £4.68 |
| 10 - 24 | £4.47 |
| 25 + | £4.26 |
*price indicative
- RS Stock No.:
- 246-9424
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coaxial Connector Type | SMB Connector | |
| Gender | Male | |
| Mounting Type | PCB Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Cable Type | Coaxial | |
| Operating Frequency | 4GHz | |
| Minimum Operating Temperature | -45°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +165°C | |
| Series | SMB | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMB Connector | ||
Gender Male | ||
Mounting Type PCB Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Operating Frequency 4GHz | ||
Minimum Operating Temperature -45°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +165°C | ||
Series SMB | ||
Contact Material Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

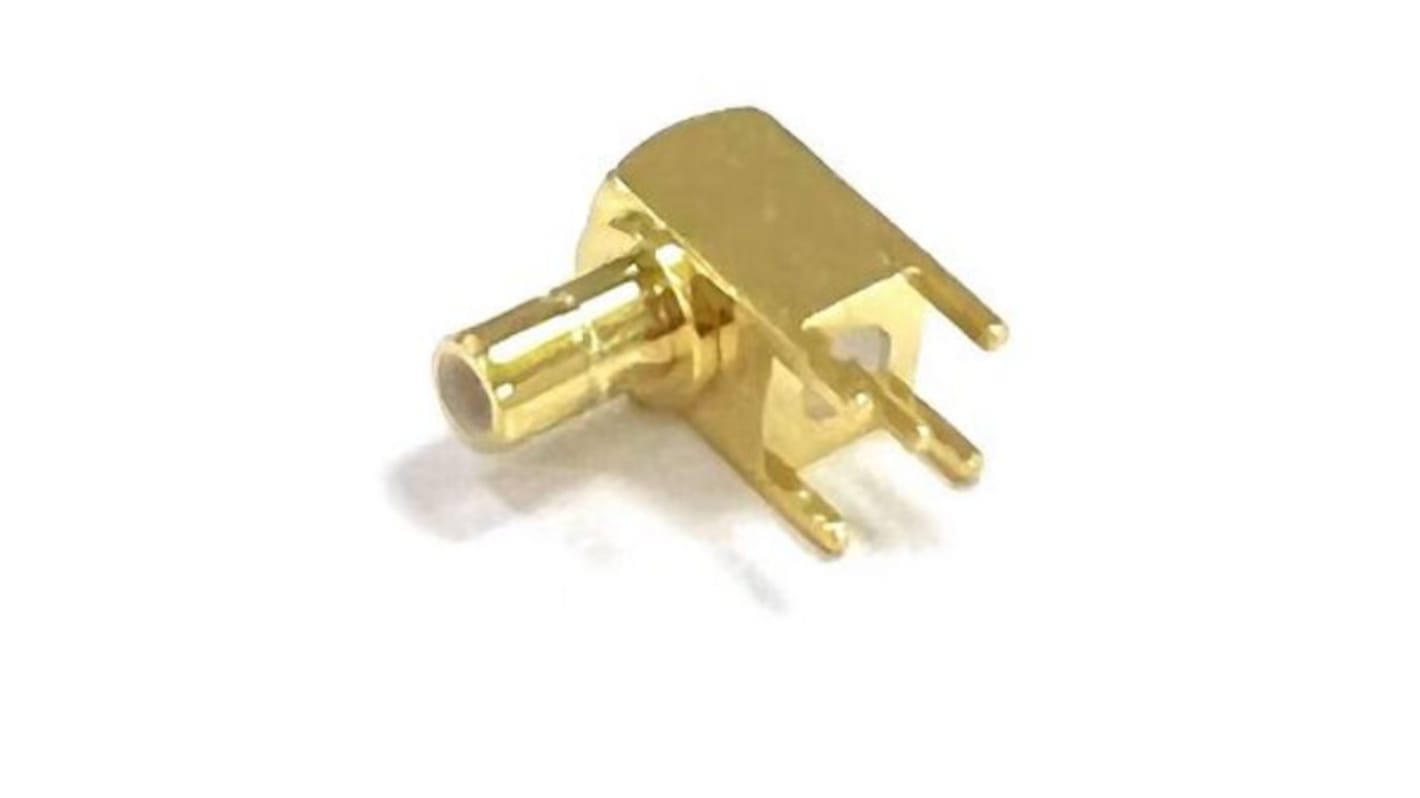

RS PRO Right Angle PCB Mount SMB Connector Plug
A right angle panel mount SMB (subminiature version B) connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).
Sub miniature B connectors all feature a snap on coupling for quick and easy and quick connection and disconnection of coax cables and with the right angle design this SMB is ideally suited for installation in hard to access areas.
The RS PRO SMB connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Typical applications include WiFi equipment and networks.
Sub miniature B connectors all feature a snap on coupling for quick and easy and quick connection and disconnection of coax cables and with the right angle design this SMB is ideally suited for installation in hard to access areas.
The RS PRO SMB connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Typical applications include WiFi equipment and networks.
Features and Benefits
- Sub-miniature size
- PCB mount
- Solder termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
