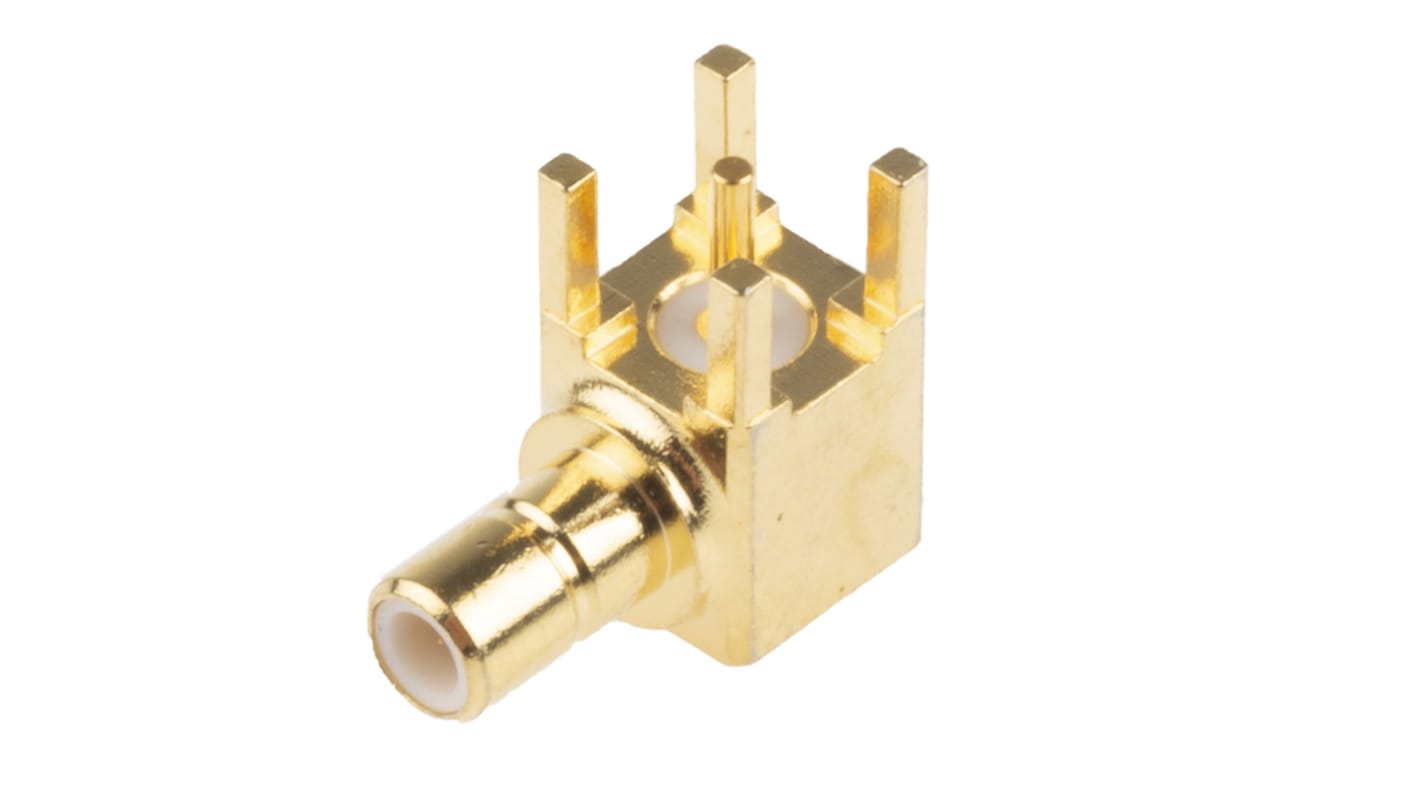

RS PRO, Plug PCB Mount SMB Connector, 50Ω, Solder Termination, Right Angle Body

Bulk discount available

Subtotal (1 unit)*

£10.46

(exc. VAT)

£12.55

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,421 unit(s) ready to ship
  • Plus 28 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 14£10.46
15 - 49£8.81
50 - 99£7.41
100 - 249£6.73
250 +£6.67

*price indicative

RS Stock No.:
546-3406
Distrelec Article No.:
304-05-748
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Gender

Male

Coaxial Connector Type

SMB Connector

Mounting Type

PCB Mount

Impedance

50Ω

Termination Method

Solder

Body Orientation

Right Angle

Size

Subminiature

Operating Frequency

4GHz

Body Plating

Gold

Contact Material

Brass

Contact Plating

Gold

COO (Country of Origin):
TW

RS PRO 50Ω Right Angle PCB Mount SMB Connector, Plug


This subminiature male SMB coaxial connector from our trusted RS PRO range offers a handy right-angle orientation, making it useful for data transmission in many hard-to-reach areas.

Found in most Wi-Fi applications and microwave systems, the main use of this type of cable is to convey data swiftly and securely across networks. This coaxial connector is quick and easy to mount to your printed circuit board (PBC) with its snap-on connect and disconnect mechanism. Once you’ve found the cables you want to join with the PCB, the connector can then be soldered onto them for termination.

With high-quality gold body plating and contact plating, this robust connector is heavily protected against wear from repeated insertions and vibration, ensuring a secure connection. This tight seal helps to protect against electromagnetic interference or 'noise'.

Features and Benefits


• Right angle male SMB connector
• PCB mounting type
• Handy snap-on coupling mechanism
• Brass contact material
• Solder termination method
• Characteristic impedance of 50 Ω
• Operating frequency of 4 GHz
• Normal polarity
• High-quality gold contact and body plating

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
