RS PRO, Jack Panel Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 246-9411
- Brand:
- RS PRO
Save 11% when you buy 25 units
Subtotal (1 unit)*
£9.97
(exc. VAT)
£11.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 274 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.97 |
| 5 - 9 | £9.67 |
| 10 - 24 | £9.28 |
| 25 + | £8.82 |
*price indicative
- RS Stock No.:
- 246-9411
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Bulkhead | Yes | |
| Operating Frequency | 6GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +165°C | |
| Series | SMA | |
| Contact Material | Phosphor Copper | |
| Contact Plating | Gold/GXT over Nickel | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Operating Frequency 6GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +165°C | ||
Series SMA | ||
Contact Material Phosphor Copper | ||
Contact Plating Gold/GXT over Nickel | ||
- COO (Country of Origin):
- CN

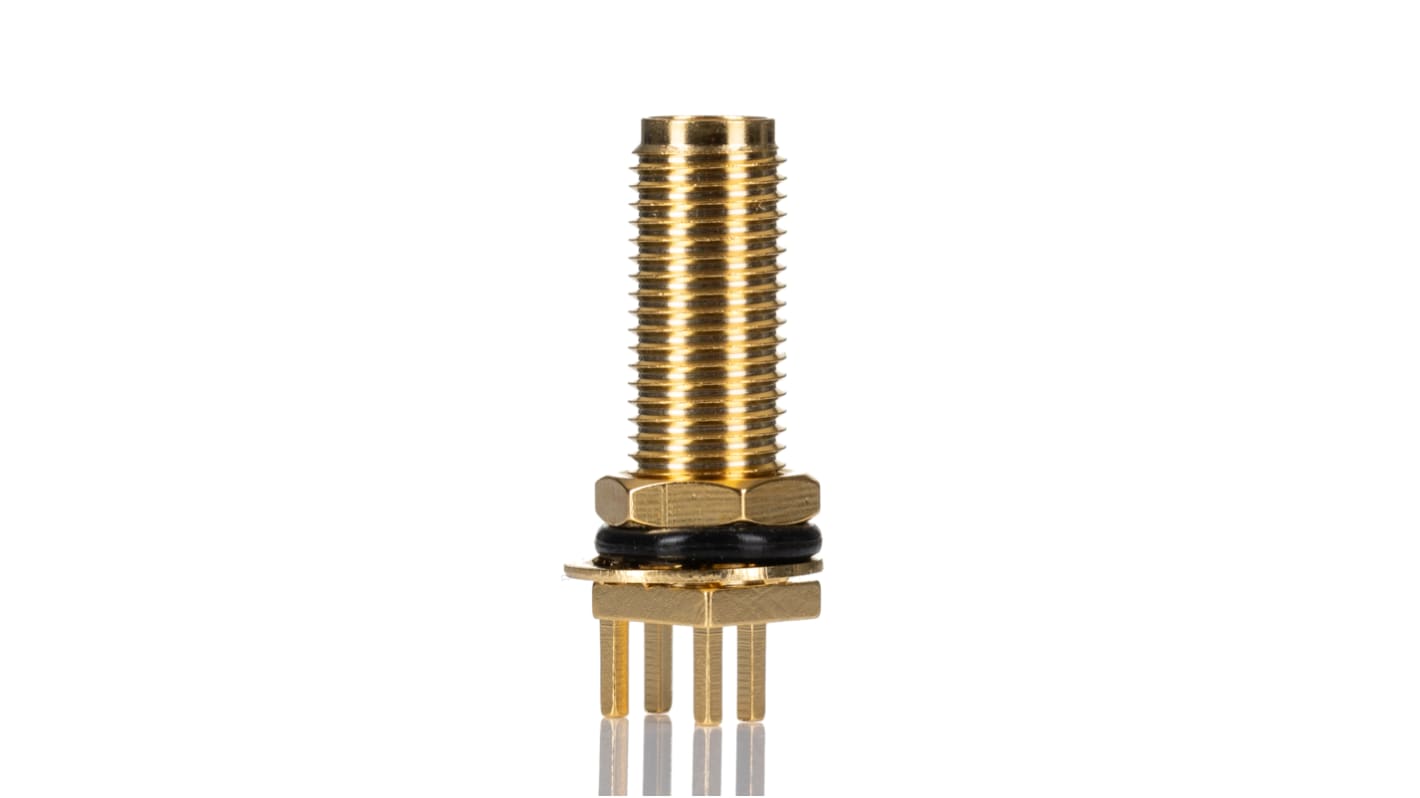

RS PRO Straight Angle Panel Mount SMA Bulkhead Connector Jack, IP68
A straight angle panel mount SMA (subminiature version A) Bulkhead connector jack designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF).
The RS PRO panel mount SMA connector features a 6 GHz frequency range and features silicone ’O’ rings with an IP rating of IP68 for protection against gas and moisture ingress and panel sealing between the connector body and panel mounting hole.
This subminiature coax connector also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
The RS PRO panel mount SMA connector features a 6 GHz frequency range and features silicone ’O’ rings with an IP rating of IP68 for protection against gas and moisture ingress and panel sealing between the connector body and panel mounting hole.
This subminiature coax connector also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and excellent wear resistance.
Features and Benefits
- Sub-miniature size
- Bulkhead connector
- IP68 protection against water and dirt ingress
- Panel mount
- Solder termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
