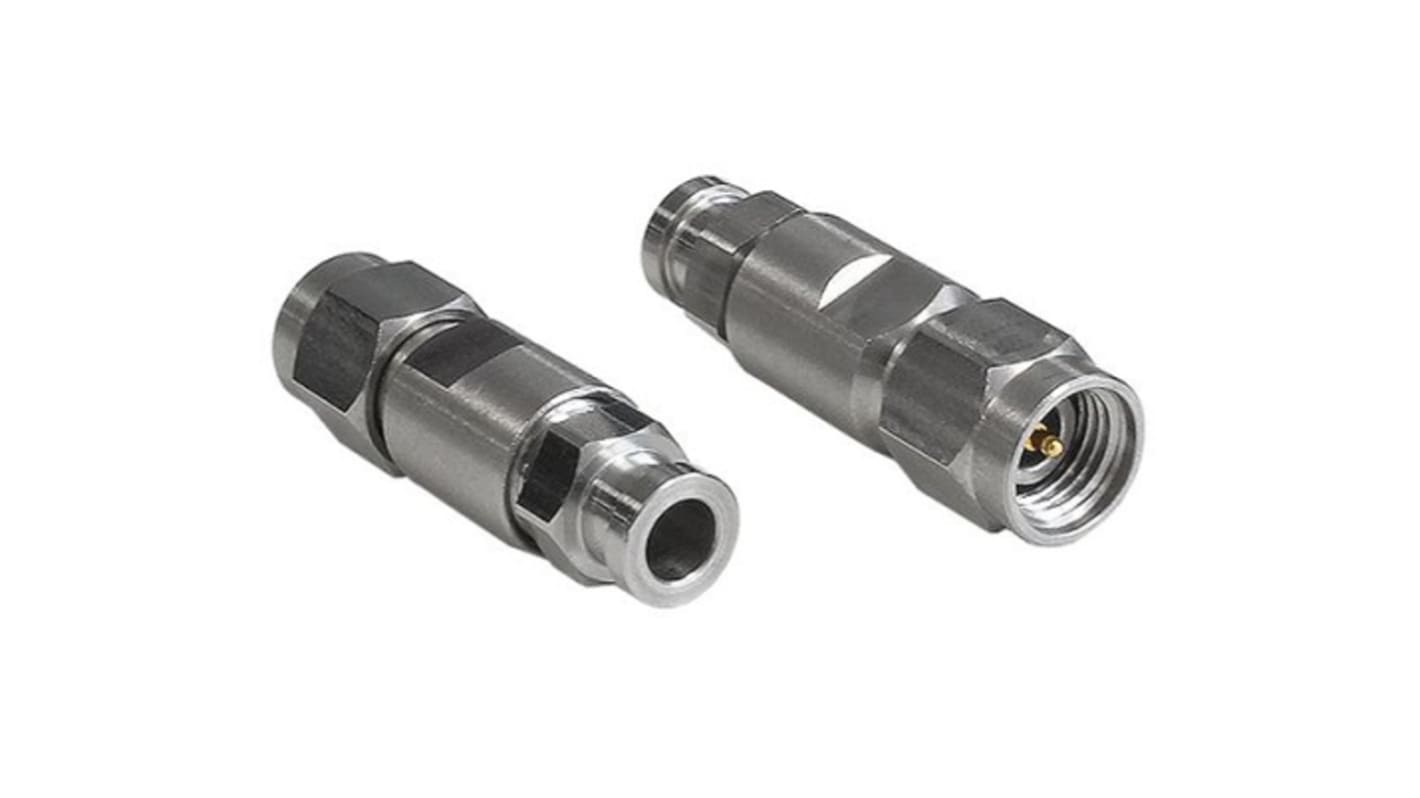

Bulgin 2.92 mm Series Coaxial Connector Cable Male/Female Circular Coaxial, 500 Ω, Straight Body Plug-In
- RS Stock No.:
- 241-0211
- Mfr. Part No.:
- RF292APG
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£38.31
(exc. VAT)
£45.97
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £38.31 |
| 10 - 24 | £35.13 |
| 25 - 49 | £32.41 |
| 50 - 99 | £30.11 |
| 100 + | £28.08 |
*price indicative
- RS Stock No.:
- 241-0211
- Mfr. Part No.:
- RF292APG
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Coaxial Connector Type | Circular Coaxial | |
| Product Type | Coaxial Connector | |
| Mount Type | Cable | |
| Impedance | 500Ω | |
| Orientation | Straight | |
| Connector Gender | Male/Female | |
| Cable Type | Coaxial | |
| Bulkhead | No | |
| Minimum Operating Temperature | -40°C | |
| Body Plating | Stainless Steel | |
| Termination Type | Plug-In | |
| Polarity | Reverse | |
| Maximum Operating Temperature | 165°C | |
| Contact Gender | Male/Female | |
| Series | 2.92 mm | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Coaxial Connector Type Circular Coaxial | ||
Product Type Coaxial Connector | ||
Mount Type Cable | ||
Impedance 500Ω | ||
Orientation Straight | ||
Connector Gender Male/Female | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Minimum Operating Temperature -40°C | ||
Body Plating Stainless Steel | ||
Termination Type Plug-In | ||
Polarity Reverse | ||
Maximum Operating Temperature 165°C | ||
Contact Gender Male/Female | ||
Series 2.92 mm | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
The Bulgin Radio Frequency Connectors of 2.92mm K connector range operate mode free up to 40GHz and are ideal for high frequency module and T&M applications. These connectors are also known as K connector, K Type, SMK adapter 2.92mm Series Bulgin’s High quality 2.92mm connectors are constructed with beryllium copper contacts, brass or stainless steel bodies. These connectors have a thicker wall than a standard SMA and also mate with the SMA and 3.50mm connector offerings.
Available in Male and Female Threads
Available in Plug or Jack
Beryllium Copper Contact Pin
Body Material available in Stainless Steel Passivation and Brass
50 ohm Impedance
Insulation resistance 5000M
Ohm Durability 500 Cycles
