Rosenberger SMA Series Panel Mount Female SMA, 50 Ω, Straight Body Solder
- RS Stock No.:
- 232-6501
- Mfr. Part No.:
- 32K607-302L5
- Brand:
- Rosenberger
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 232-6501
- Mfr. Part No.:
- 32K607-302L5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rosenberger | |
| Coaxial Connector Type | SMA | |
| Product Type | SMA Jack | |
| Mount Type | Panel Mount | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 12.4GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Gold | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 165°C | |
| Polarity | Normal | |
| Series | SMA | |
| Contact Gender | Female | |
| Standards/Approvals | MIL-STD-202, MIL-STD-348A, Cond. B etc, EN 122110, Fig. 310, IEC 60169-15, Meth. 107 | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold Plated | |
| Select all | ||
|---|---|---|
Brand Rosenberger | ||
Coaxial Connector Type SMA | ||
Product Type SMA Jack | ||
Mount Type Panel Mount | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 12.4GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Termination Type Solder | ||
Maximum Operating Temperature 165°C | ||
Polarity Normal | ||
Series SMA | ||
Contact Gender Female | ||
Standards/Approvals MIL-STD-202, MIL-STD-348A, Cond. B etc, EN 122110, Fig. 310, IEC 60169-15, Meth. 107 | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold Plated | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- HU

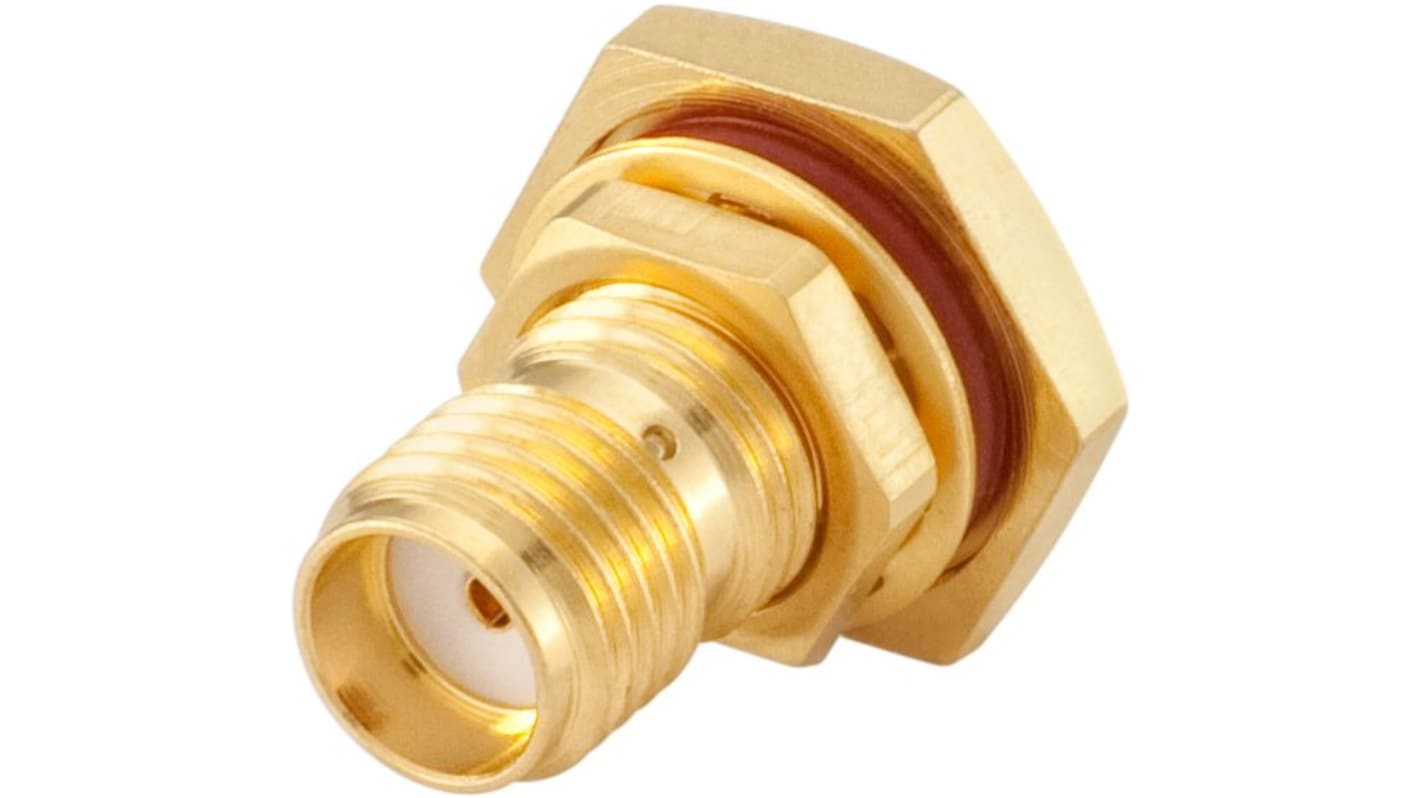

The Rosenberger Bulkhead jack has 50 Ohm impedance. It has hexagonal flange with nut panel mount. The jack uses radio frequency technology.
Series SMA
Gender jack
Configuration straight
Panel mounting hexagonal flange with nut
Cable RG 174 , 188 , 316 (ø2.6-50 Ohm)
