Rosenberger SMA Series Panel Mount Female SMA, 50 Ω, Straight Body Solder
- RS Stock No.:
- 232-6495
- Mfr. Part No.:
- 32K449-500L5
- Brand:
- Rosenberger
Bulk discount available
Subtotal (1 unit)*
£11.19
(exc. VAT)
£13.43
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £11.19 |
| 10 - 24 | £10.01 |
| 25 - 49 | £8.73 |
| 50 - 99 | £8.00 |
| 100 + | £7.51 |
*price indicative
- RS Stock No.:
- 232-6495
- Mfr. Part No.:
- 32K449-500L5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rosenberger | |
| Product Type | SMA Jack | |
| Coaxial Connector Type | SMA | |
| Mount Type | Panel Mount | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 12.4GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -65°C | |
| Polarity | Normal | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 165°C | |
| Series | SMA | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Rosenberger | ||
Product Type SMA Jack | ||
Coaxial Connector Type SMA | ||
Mount Type Panel Mount | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 12.4GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Termination Type Solder | ||
Maximum Operating Temperature 165°C | ||
Series SMA | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- HU

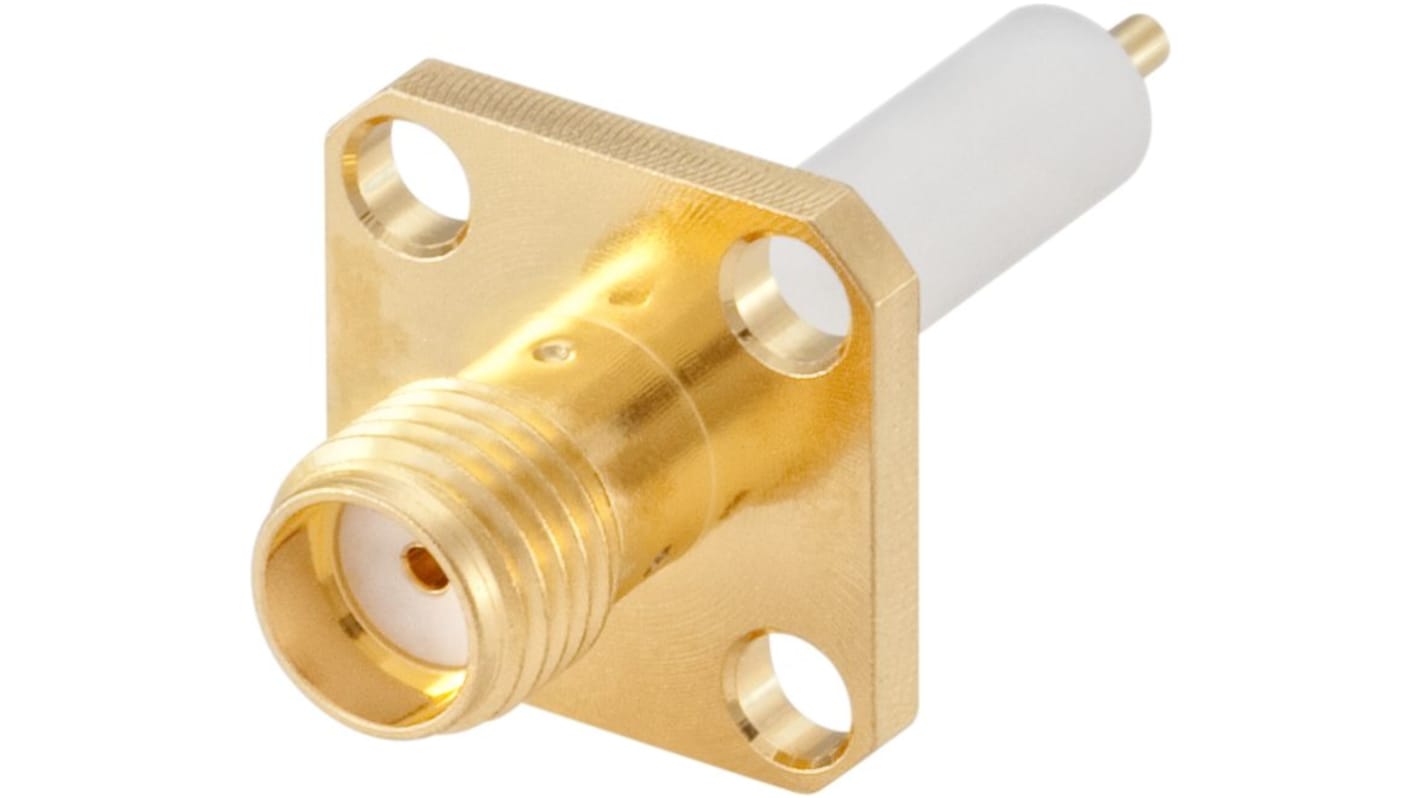

The Rosenberger Panel jack has 50 Ohm impedance. It has 4-hole flange panel mount method. The jack uses radio frequency technology.
Series SMA
Gender jack
Configuration straight
Panel mounting 4-hole flange
Backend type coaxial end
