Rosenberger Mini-SMP Series Cable Female SMP, 50 Ω, Right Angle Body Solder
- RS Stock No.:
- 232-6438
- Mfr. Part No.:
- 18K201-271L5
- Brand:
- Rosenberger
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 232-6438
- Mfr. Part No.:
- 18K201-271L5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rosenberger | |
| Product Type | SMP | |
| Coaxial Connector Type | SMP | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Orientation | Right Angle | |
| Connector Gender | Female | |
| Cable Type | UT-85-M17, RG405/U | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 65GHz | |
| Minimum Operating Temperature | -55°C | |
| Body Plating | Gold | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 155°C | |
| Polarity | Normal | |
| Contact Gender | Female | |
| Series | Mini-SMP | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Rosenberger | ||
Product Type SMP | ||
Coaxial Connector Type SMP | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Orientation Right Angle | ||
Connector Gender Female | ||
Cable Type UT-85-M17, RG405/U | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 65GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Gold | ||
Termination Type Solder | ||
Maximum Operating Temperature 155°C | ||
Polarity Normal | ||
Contact Gender Female | ||
Series Mini-SMP | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- HU

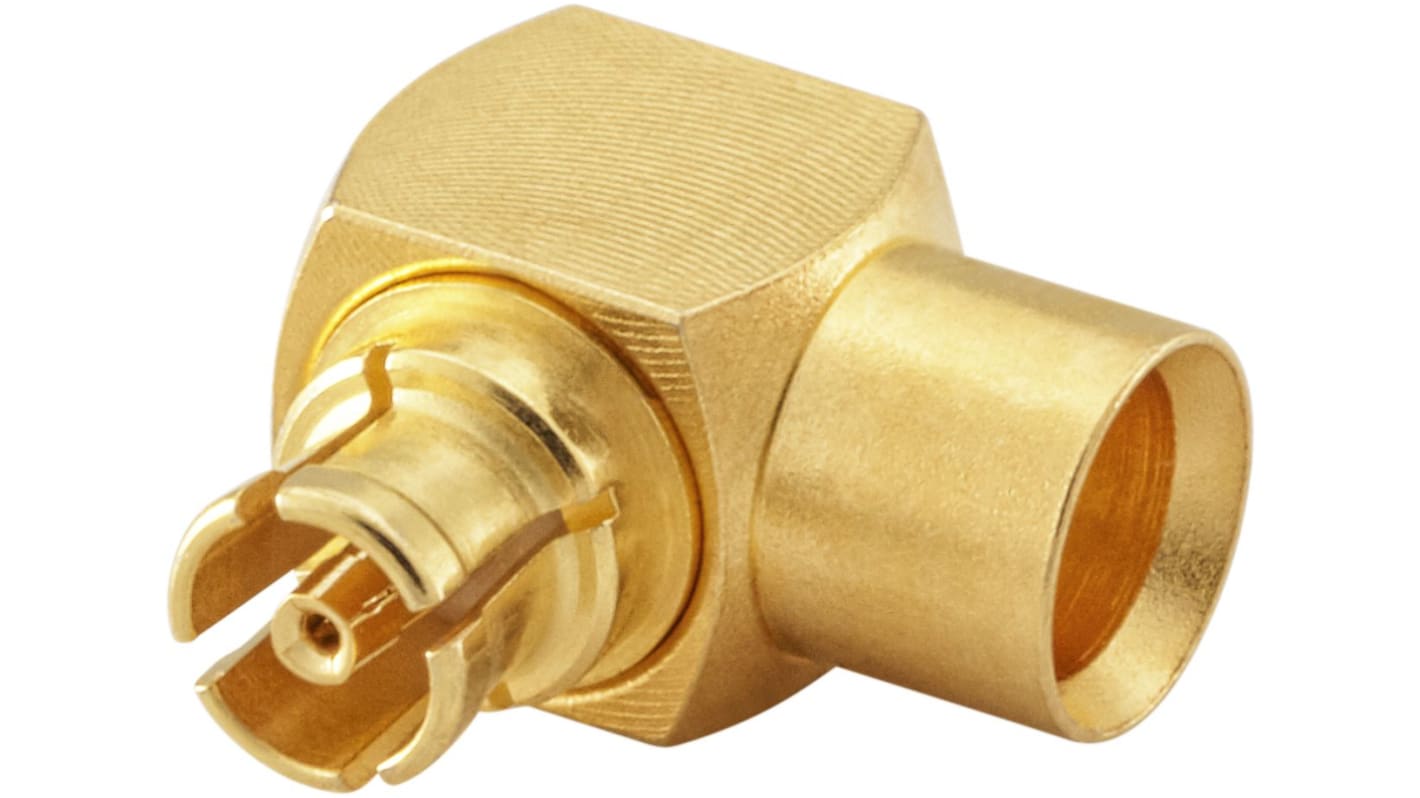

The Rosenberger Right angle jack has 50 Ohm impedance. It has cable full solder backend type. The jack uses radio frequency technology.
Series Mini-SMP
Gender jack
Configuration right angle
Cable UT 85 , RTK-FS 085 (ø2.2-50 Ohm)
Backend type cable full solder
