RS PRO, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 217-7788
- Brand:
- RS PRO
Subtotal (1 unit)*
£3.01
(exc. VAT)
£3.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 589 unit(s) ready to ship
- Plus 214 unit(s) ready to ship from another location
- Plus 2,000 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.01 |
*price indicative
- RS Stock No.:
- 217-7788
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | BNC Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Operating Frequency | 4GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +80°C | |
| Contact Material | Brass | |
| Contact Plating | Nickel | |
| Mating Type | Bayonet Coupling | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type BNC Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Operating Frequency 4GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +80°C | ||
Contact Material Brass | ||
Contact Plating Nickel | ||
Mating Type Bayonet Coupling | ||
- COO (Country of Origin):
- CN

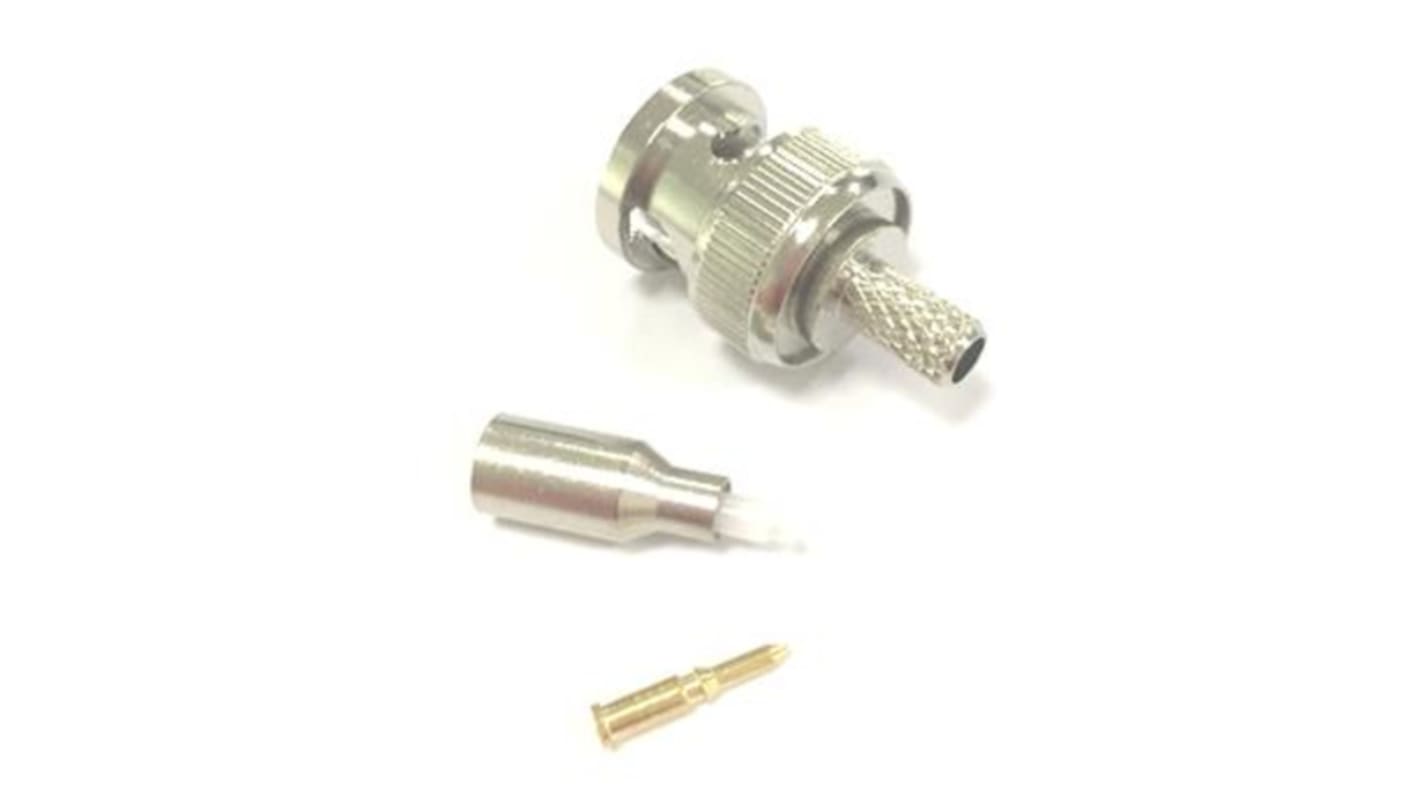

RS PRO 50 Ω BNC Connector
When you need coaxial connectors RS PRO is the trusted go-to brand. We are proud to introduce the latest RF connector that offers excellent signal transfer. Upon inspection, the coaxial connector is a 50 Ω male RF BNC connector made from high-quality materials such as nickel and brass and has a convenient bayonet coupling system. This BNC connector is commonly found in medical test equipment, telecom, and antenna connections.
The RS PRO BNC connector is a high-quality, straight, radio frequency (RF) connector designed for crimp cable mount applications and mates with female BNC coaxial cable assemblies. The coaxial connector features a rugged nickel-plated body, gold-plated centre pin contacts for excellent electrical conductivity over long service life, and PTFE insulators.
Features and Benefits
- Male BNC Connector
- Cable Mounting
- Body Plating Nickel
- Contact Material Brass
- Contact Plating: Nickel
- Crimp Termination
- Insulation material: PTFE
Electrical Specification
- Temperature Range -45°C ∼+80°C
- Characteristic Impedance 50Ω
- Frequency Range 0∼4GHz
- Working Voltage 500V
- Insulation Resistance ≥1000MΩ
- Medium Pressure 1000V(rms)
- VSWR ≤1.5
- Working Life 500 Cycles
Things to consider!
RS PRO offers an extensive range of crimp tools for BNC connectors installation. Browse our offer using the improved filters to find your ideal solution.
Applications
- Antenna connection
- Cable Modems
- Telecom
- Medical Equipment
- CCTV
