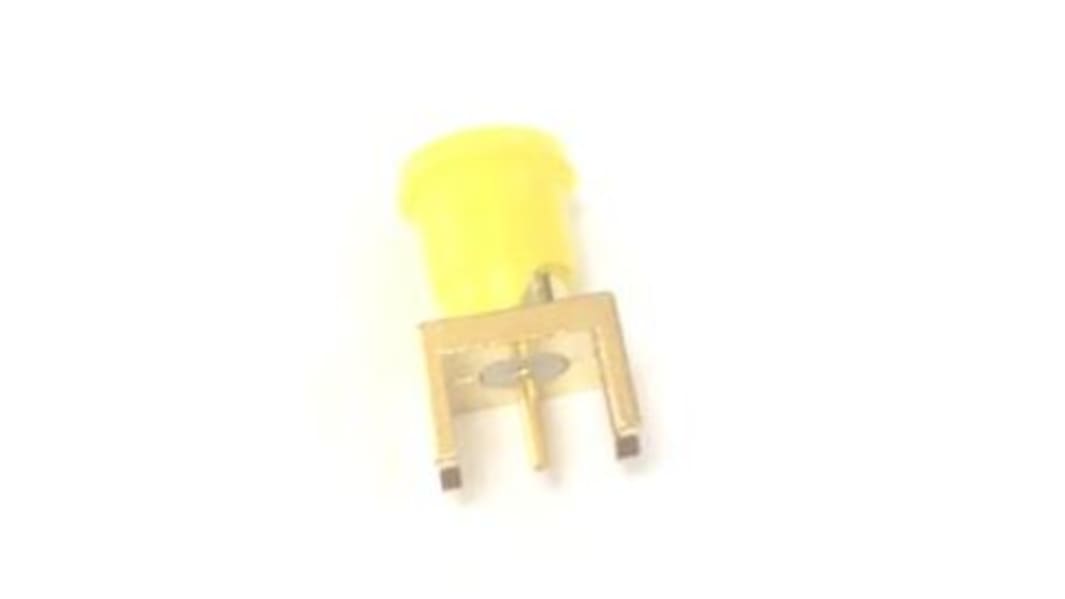

RS PRO, Jack Edge Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 213-8222
- Brand:
- RS PRO
Subtotal (1 unit)*
£3.25
(exc. VAT)
£3.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 373 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3.25 |
*price indicative
- RS Stock No.:
- 213-8222
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coaxial Connector Type | SMA Connector | |
Gender | Female | |
Mounting Type | Edge Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Size | Subminiature | |
Operating Frequency | 18GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -65°C | |
Polarity | Normal | |
Maximum Operating Temperature | +165°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type Edge Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Size Subminiature | ||
Operating Frequency 18GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Maximum Operating Temperature +165°C | ||
- COO (Country of Origin):
- CN
RS PRO 50Ω Straight Edge Mount, SMA PCB Connector
RS PRO has increased its range of coaxial connectors, here we are proud to introduce a new addition to the series of SMA connectors. This female SMA connector socket is a sub-miniature radio frequency (RF) connector designed to interface with coaxial cable assemblies SMA plugs.
Where would you find them?
This SMA edge mount connector is one of many RF connector types found in equipment such as transmitters, used in conjunction with coaxial cable to carry high-frequency electrical signals with low losses. Common applications are printed circuit boards where they are edge mounted and secured by solder for a sturdy connection.
How to Identify Male and Female SMA
Male gender SMA connectors have outward pins and threaded connection inside, whereas a female gender SMA have inward pins and threaded connection outside.
Features and Benefits
• Female SMA coaxial connector
• Fitted with gold-plated brass body and centre contact
• Teflon insulator
• Sub-miniature size
• Edge mount
• Characteristic impedance of 50 Ω
• Normal polarity
• Operating frequency up to 18 GHz
• Operating temperature range of -65°C to +165°C
• Termination: Solder
• Fitted with gold-plated brass body and centre contact
• Teflon insulator
• Sub-miniature size
• Edge mount
• Characteristic impedance of 50 Ω
• Normal polarity
• Operating frequency up to 18 GHz
• Operating temperature range of -65°C to +165°C
• Termination: Solder
Things to consider!
Its good practice to have the appropriate tools to carry out a new install or replacement coaxial. Consider these RS PRO products for soldering/de-soldering applications.
Applications
Telephone systems
Microwave systems
Wi-Fi Antenna systems
Electronic servicing
Microwave systems
Wi-Fi Antenna systems
Electronic servicing
Why would you choose RS PRO for Coaxial Connectors?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards. Theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
