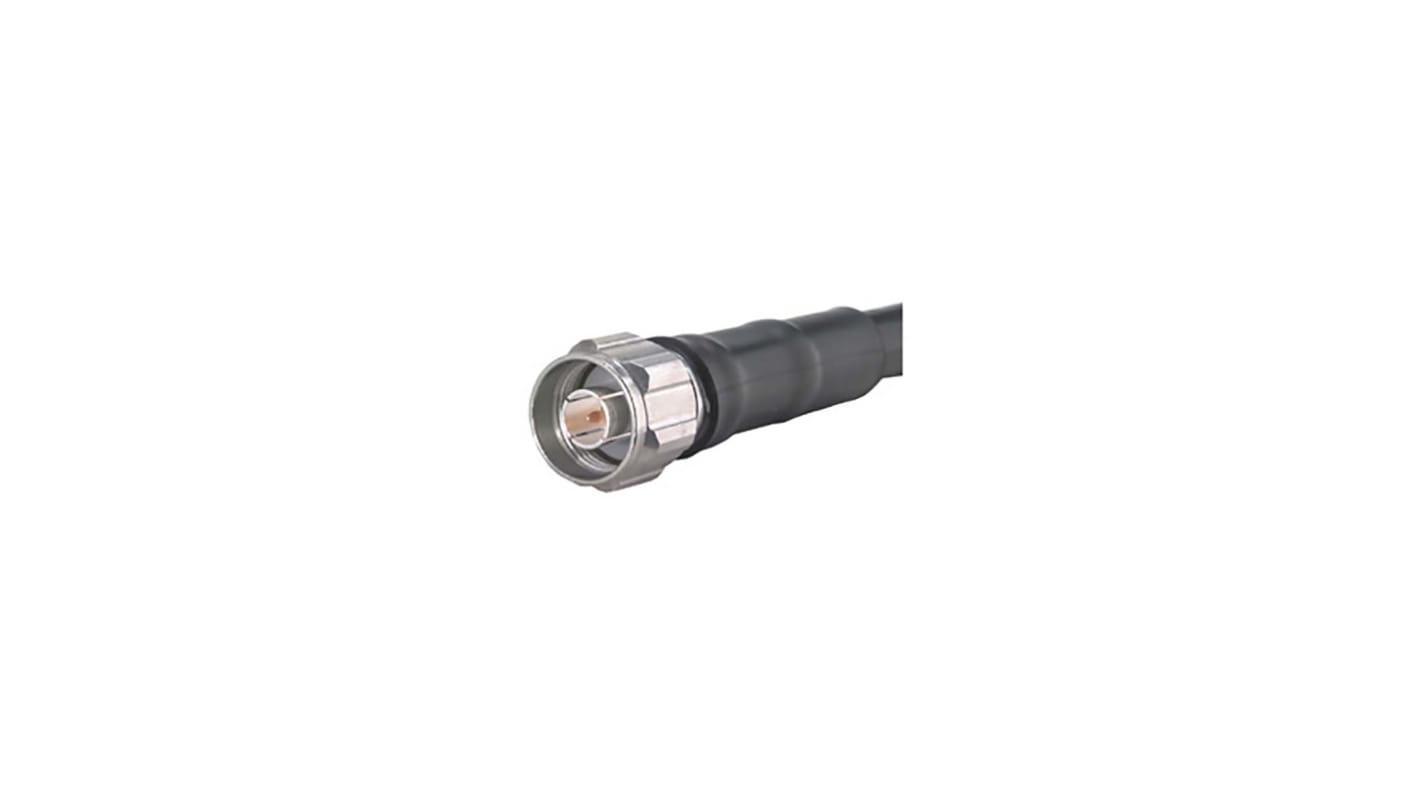

Huber+Suhner 11_N-50-10-5/103_UV Series, Plug Cable Mount N Connector, Crimp Termination, Straight Body

RS Stock No.:: 205-9185
Mfr. Part No.:: 11_N-50-10-5/103_UV
Brand:: Huber+Suhner

Huber+Suhner 11_N-50-10-5/103_UV Series, Plug Cable Mount N Connector, Crimp Termination, Straight Body

20 In stock - FREE next working day delivery available

Added

Price Each

£19.50

(exc. VAT)

£23.40

(inc. VAT)

Units	Per unit
1 - 9	£19.50
10 +	£17.80

RS Stock No.:: 205-9185
Mfr. Part No.:: 11_N-50-10-5/103_UV
Brand:: Huber+Suhner

Technical Reference

Datasheet - 11_N-50-10-5/103_UV

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 3 GHz
Return loss 30 dB
Centre contact plugged
Outer contact crimped
Weight 0.0378 kg
Operating temperature -65 °C to 165 °C

Specifications

Attribute	Value
Coaxial Connector Type	N Connector
Gender	Male
Mounting Type	Cable Mount
Termination Method	Crimp
Body Orientation	Straight
Cable Type	Coaxial
Bulkhead	No
Body Plating	Brass
Polarity	Normal
Series	11_N-50-10-5/103_UV

RS Stock No.:: 205-9185
Mfr. Part No.:: 11_N-50-10-5/103_UV
Brand:: Huber+Suhner

Datasheet - 11_N-50-10-5/103_UV
