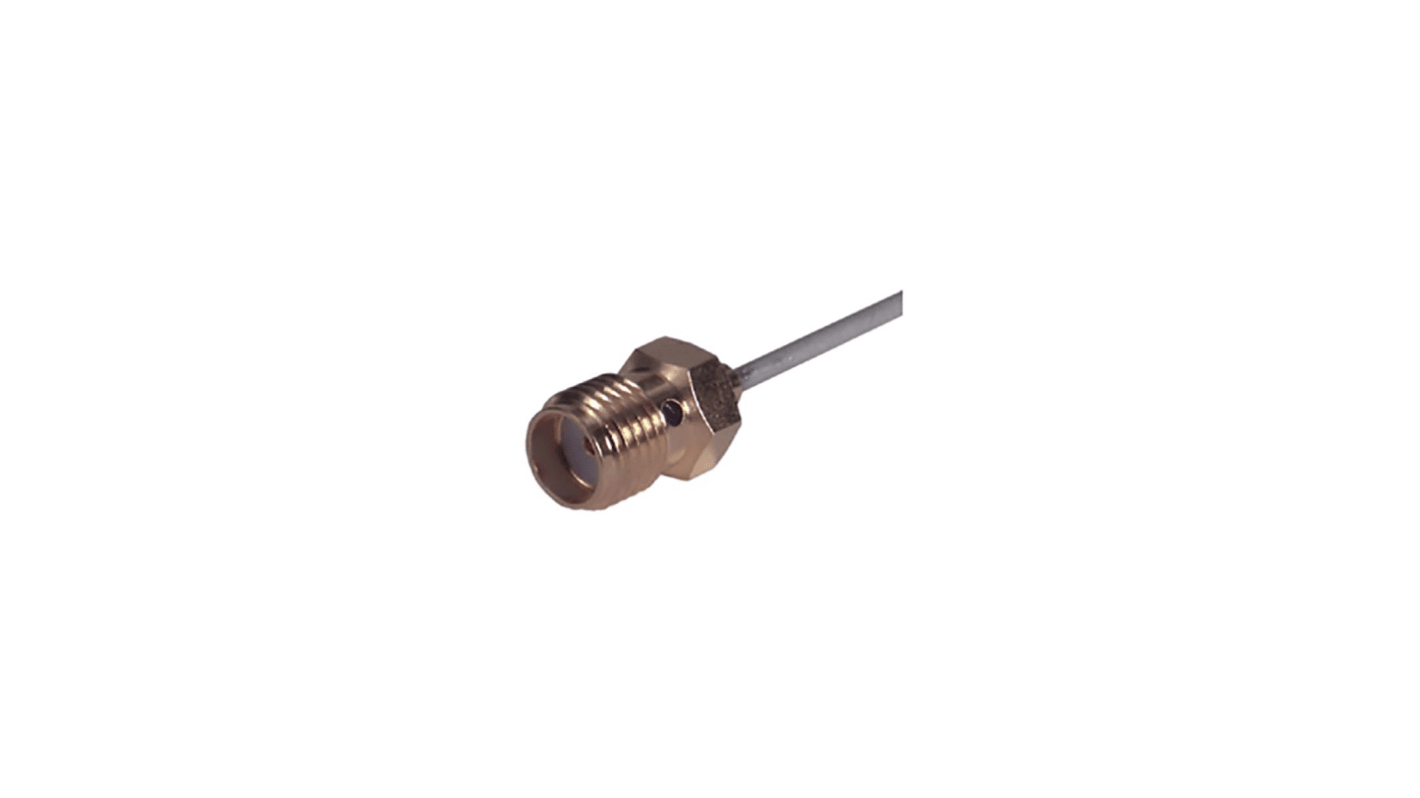

Huber+Suhner 21_SMA-50-1-2/111_NE Series, Jack Cable Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 205-9134
- Distrelec Article No.:
- 302-15-122
- Mfr. Part No.:
- 21_SMA-50-1-2/111_NE
- Brand:
- Huber+Suhner
Subtotal (1 unit)*
£18.20
(exc. VAT)
£21.84
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 49 unit(s), ready to ship
Units | Per unit |
---|---|
1 + | £18.20 |
*price indicative
- RS Stock No.:
- 205-9134
- Distrelec Article No.:
- 302-15-122
- Mfr. Part No.:
- 21_SMA-50-1-2/111_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Female | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Bulkhead | No | |
Polarity | Normal | |
Series | 21_SMA-50-1-2/111_NE | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Polarity Normal | ||
Series 21_SMA-50-1-2/111_NE | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 2.5 GHz 2.5 to 6 GHz 6 to 18 GHz
Return loss 35 dB 30 dB 25 dB
Centre contact soldered
Outer contact soldered
Weight 0.0015 kg
Interface frequency max. 18 GHz
Frequency range DC to 2.5 GHz 2.5 to 6 GHz 6 to 18 GHz
Return loss 35 dB 30 dB 25 dB
Centre contact soldered
Outer contact soldered
Weight 0.0015 kg
