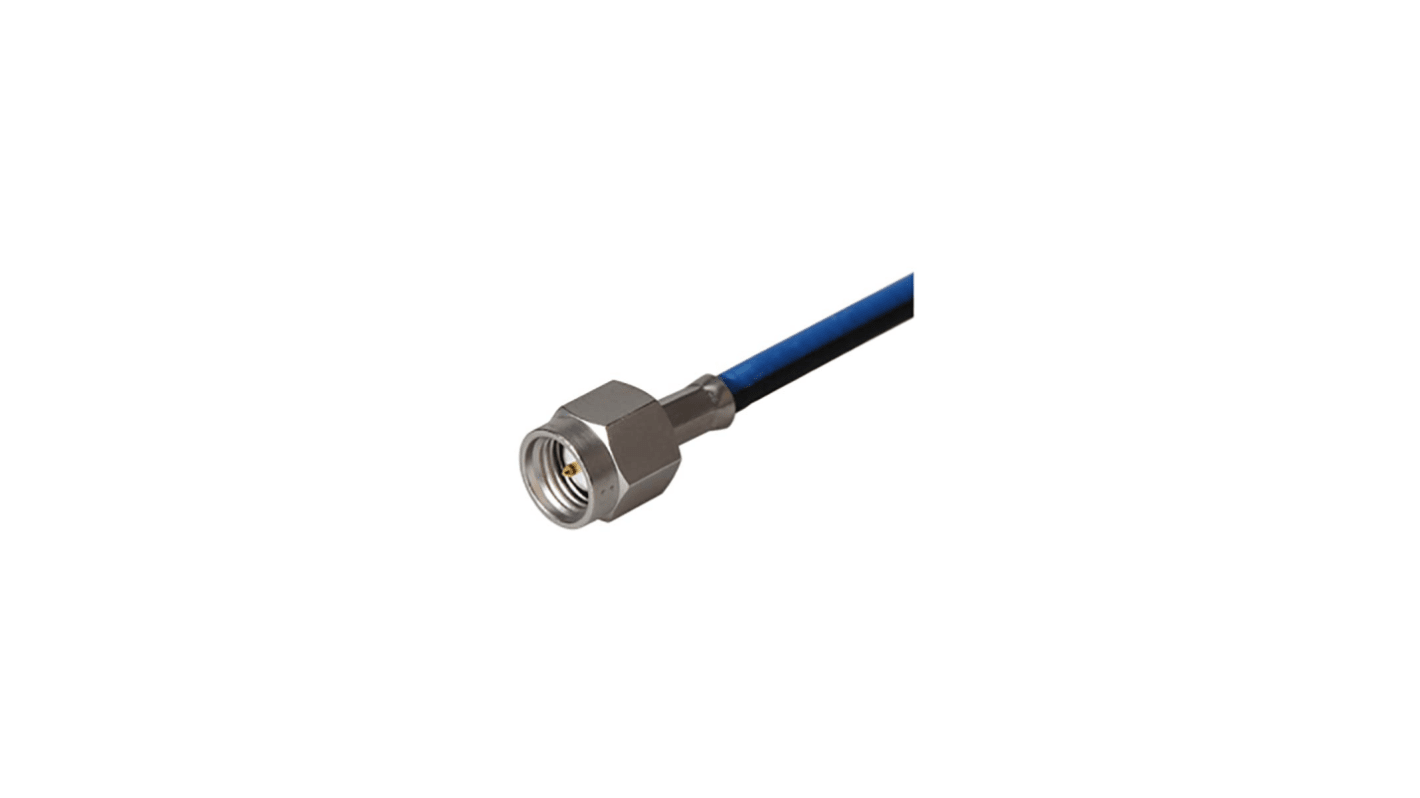

Huber+Suhner 11_SMA-50-2-112/133_NE Series, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 205-9072
- Mfr. Part No.:
- 11_SMA-50-2-112/133_NE
- Brand:
- Huber+Suhner
37 In stock - FREE next working day delivery available
Price Each
£8.30
(exc. VAT)
£9.96
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £8.30 |
| 10 - 24 | £7.59 |
| 25 - 49 | £6.97 |
| 50 - 99 | £6.45 |
| 100 + | £5.82 |
- RS Stock No.:
- 205-9072
- Mfr. Part No.:
- 11_SMA-50-2-112/133_NE
- Brand:
- Huber+Suhner
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 1 GHz 1 to 2.5 GHz 2.5 to 5 GHz
Return loss 32 dB 29 dB 26 dB
Centre contact soldered
Outer contact crimped
Weight 0.0026 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 18 GHz
Frequency range DC to 1 GHz 1 to 2.5 GHz 2.5 to 5 GHz
Return loss 32 dB 29 dB 26 dB
Centre contact soldered
Outer contact crimped
Weight 0.0026 kg
Operating temperature -65 °C to 165 °C
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMA Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Bulkhead | No |
| Body Plating | Brass |
| Polarity | Normal |
| Series | 11_SMA-50-2-112/133_NE |
