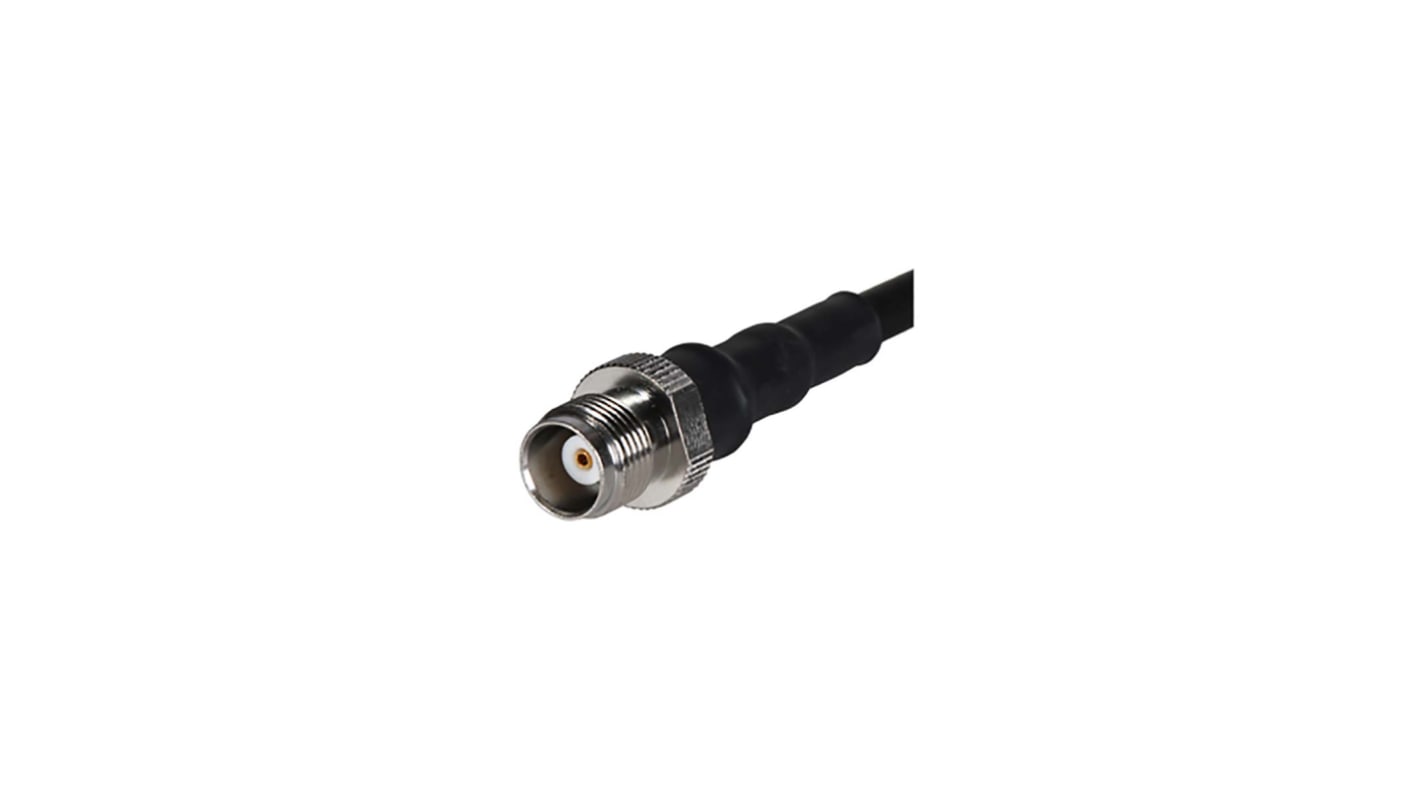

Huber+Suhner 21_TNC-50-4-16/133_NE Series, Jack Panel Mount TNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 205-8997
- Distrelec Article No.:
- 302-15-126
- Mfr. Part No.:
- 21_TNC-50-4-16/133_NE
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 unit)*
£28.56
(exc. VAT)
£34.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 81 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £28.56 |
10 - 24 | £26.08 |
25 - 49 | £23.99 |
50 - 99 | £22.22 |
100 + | £19.99 |
*price indicative
- RS Stock No.:
- 205-8997
- Distrelec Article No.:
- 302-15-126
- Mfr. Part No.:
- 21_TNC-50-4-16/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Female | |
Coaxial Connector Type | TNC Connector | |
Mounting Type | Panel Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Bulkhead | Yes | |
Body Plating | Brass | |
Polarity | Normal | |
Series | 21_TNC-50-4-16/133_NE | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Female | ||
Coaxial Connector Type TNC Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Body Plating Brass | ||
Polarity Normal | ||
Series 21_TNC-50-4-16/133_NE | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss 30 dB 27.4 dB 25.5 dB
Mechanical Data
Centre contact plugged
Outer contact crimped
Weight 0.01412 kg
Environmental Data
Operating temperature -65
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss 30 dB 27.4 dB 25.5 dB
Mechanical Data
Centre contact plugged
Outer contact crimped
Weight 0.01412 kg
Environmental Data
Operating temperature -65
