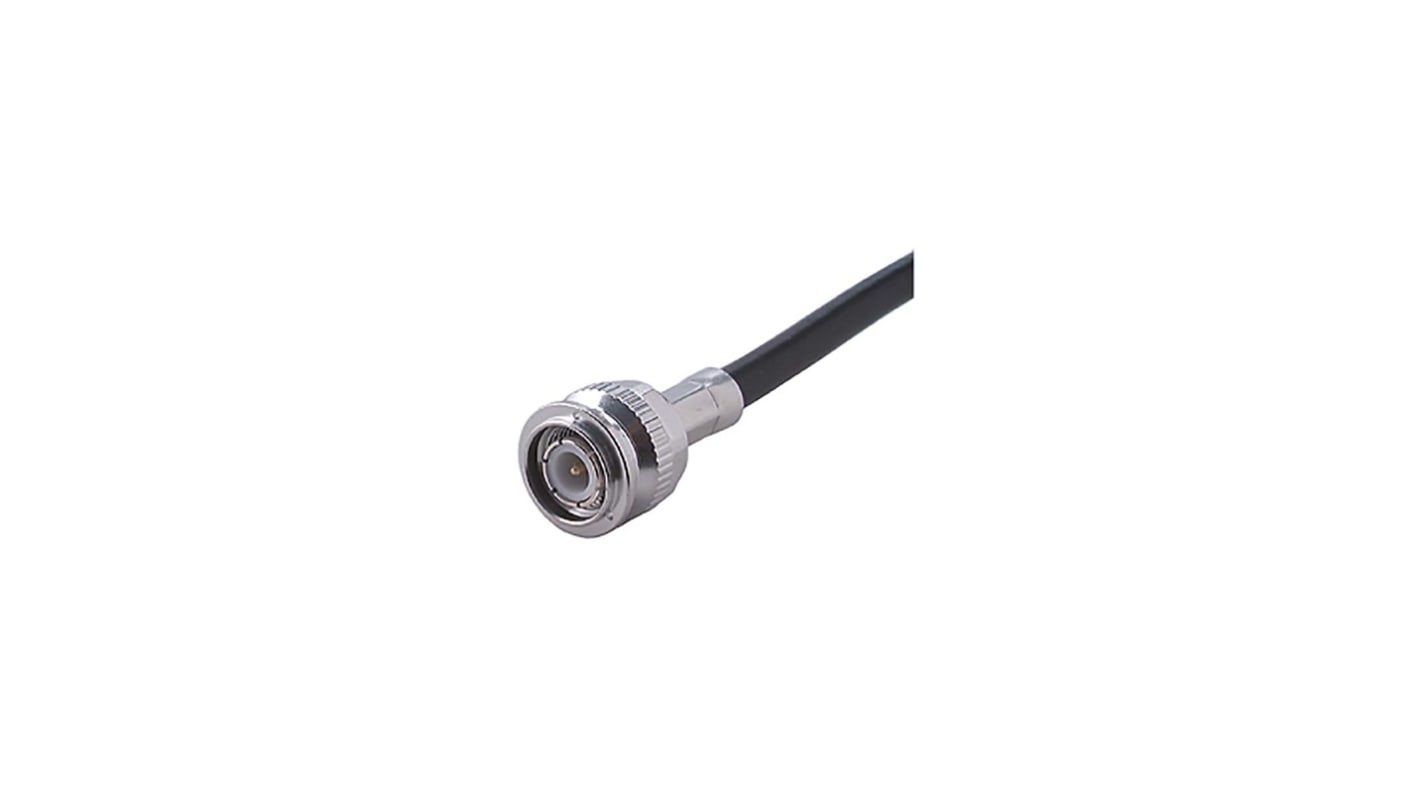

Huber+Suhner 11_TNC-50-3-117/133_NE Series, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body

RS Stock No.:: 205-8986
Mfr. Part No.:: 11_TNC-50-3-117/133_NE
Brand:: Huber+Suhner

Huber+Suhner 11_TNC-50-3-117/133_NE Series, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body

8 In stock - FREE next working day delivery available

Price Each

£15.45

(exc. VAT)

£18.54

(inc. VAT)

Units	Per unit
1 - 9	£15.45
10 - 24	£14.11
25 - 49	£12.98
50 - 99	£12.02
100 +	£10.82

RS Stock No.:: 205-8986
Mfr. Part No.:: 11_TNC-50-3-117/133_NE
Brand:: Huber+Suhner

Technical Reference

Datasheet - 11_TNC-50-3-117/133_NE

Legislation and Compliance

COO (Country of Origin):: CH

Product Details

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 2.5 GHz 2.5 to 5 GHz
Return loss 35 dB 30 dB
Centre contact crimped
Outer contact crimped
Weight 0.0135 kg
Operating temperature -65 °C to 165 °C

Specifications

Attribute	Value
Gender	Male
Coaxial Connector Type	TNC Connector
Mounting Type	Cable Mount
Impedance	50Ω
Termination Method	Crimp
Body Orientation	Straight
Cable Type	Coaxial
Bulkhead	No
Body Plating	Brass
Polarity	Normal
Series	11_TNC-50-3-117/133_NE
