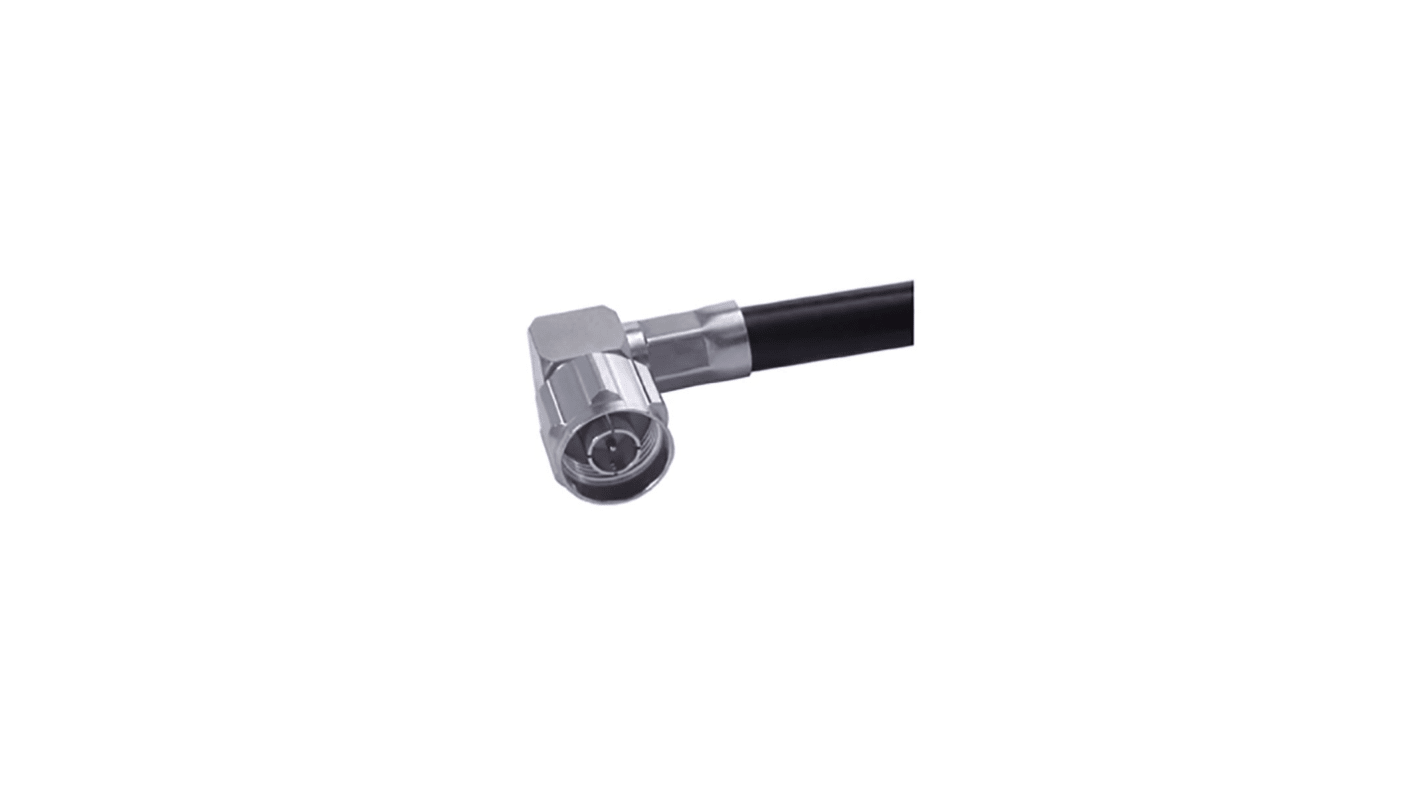

Huber+Suhner 16_N-50-7-31/133_NE Series Coaxial Connector Cable Male N Connector, 50 Ω, Right Angle Body Crimp

RS Stock No.:: 205-8898
Distrelec Article No.:: 146-45-321
Mfr. Part No.:: 16_N-50-7-31/133_NE
Brand:: Huber+Suhner

Huber+Suhner 16_N-50-7-31/133_NE Series Coaxial Connector Cable Male N Connector, 50 Ω, Right Angle Body Crimp

Subtotal (1 unit)*

£32.31

(exc. VAT)

£38.77

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 123 unit(s) shipping from 07 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£32.31

*price indicative

Coaxial Cable

Don't forget your Coaxial Cable!

Shop Coaxial Cable now

RS Stock No.:: 205-8898
Distrelec Article No.:: 146-45-321
Mfr. Part No.:: 16_N-50-7-31/133_NE
Brand:: Huber+Suhner

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Huber+Suhner
	Coaxial Connector Type	N Connector
	Product Type	Coaxial Connector
	Mount Type	Cable
	Impedance	50Ω
	Connector Gender	Male
	Orientation	Right Angle
	Cable Type	Coaxial
	Size	Standard
	Bulkhead	No
	Operating Frequency	11GHz
	Body Plating	Sucoplate
	Minimum Operating Temperature	-65°C
	Termination Type	Crimp
	Polarity	Normal
	Maximum Operating Temperature	165°C
	Series	16_N-50-7-31/133_NE
	Contact Gender	Male
	Contact Material	Brass
	Standards/Approvals	RoHS
	Contact Plating	Gold

	Select all
	Brand Huber+Suhner
	Coaxial Connector Type N Connector
	Product Type Coaxial Connector
	Mount Type Cable
	Impedance 50Ω
	Connector Gender Male
	Orientation Right Angle
	Cable Type Coaxial
	Size Standard
	Bulkhead No
	Operating Frequency 11GHz
	Body Plating Sucoplate
	Minimum Operating Temperature -65°C
	Termination Type Crimp
	Polarity Normal
	Maximum Operating Temperature 165°C
	Series 16_N-50-7-31/133_NE
	Contact Gender Male
	Contact Material Brass
	Standards/Approvals RoHS
	Contact Plating Gold

Datasheet - 16_N-50-7-31/133_NE

COO (Country of Origin):: CN

Huber+Suhner Coaxial Connector, 50Ω Impedance, Right Angle Orientation - 16_N-50-7-31/133_NE

This coaxial connector is a right-angle male N-type attachment designed to terminate coaxial cable assemblies for high-frequency signal transmission. It provides a cable-mounted, bulkheadless solution with normal polarity and is intended for use where a compact, angled connection is required in industrial and electronic systems.

Features and Benefits:

• 50Ω impedance supports matched high-frequency signal integrity
• Operates to 11 GHz for wideband RF applications
• Gold-plated brass contact ensures low-resistance mating
• Sucoplate body plating improves corrosion resistance
• Crimp termination offers secure, repeatable cable attachment
• Rated -65°C to 165°C for elevated temperature environments

Applications

• Suitable for antenna feedlines in test and measurement rigs
• Ideal for RF cable assemblies in automation control systems
• Used with communication modules in electronic equipment racks
• Can be used for high-frequency interconnects in laboratory instrumentation
• Useful for cable terminations in mechanically vibration-prone installations

What mounting style does it use for cable installation?

It is designed for cable mounting without a bulkhead, allowing direct crimp termination to the coaxial cable.

Which contact materials and finishes are employed for conductivity?

The central contact is formed from brass and finished with a gold plating to reduce contact resistance and maintain signal quality.

What termination method should I use during assembly?

The connector uses a crimp termination technique, which provides a mechanically robust and electrically consistent joint when correct crimp tooling is used.

How does the connector handle thermal extremes during operation?

It remains functional across a temperature range from -65°C up to 165°C, suitable for applications that experience low and elevated temperatures.
