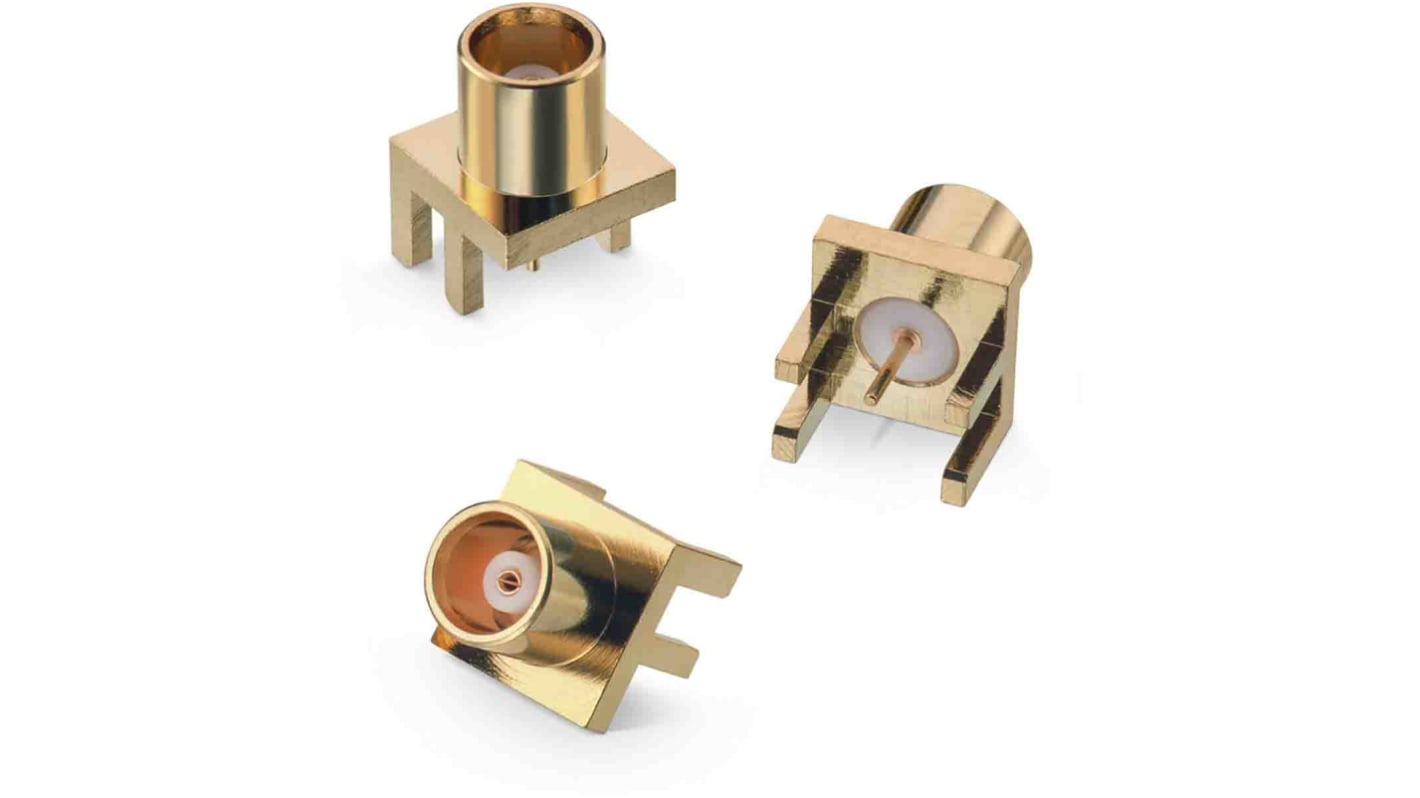

Wurth Elektronik WR-MCX Series, jack Surface Mount MCX Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 194-6031
- Mfr. Part No.:
- 60612202111511
- Brand:
- Wurth Elektronik
118 In stock - FREE next working day delivery available
Added
Price Each
£5.03
(exc. VAT)
£6.04
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £5.03 |
| 10 - 24 | £4.57 |
| 25 - 49 | £4.19 |
| 50 - 99 | £3.87 |
| 100 + | £3.60 |
- RS Stock No.:
- 194-6031
- Mfr. Part No.:
- 60612202111511
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Straight SMT MCX Jack Edge for PCB 1.6 mm is a coaxial connector designed for any wire-to-board application where easy and quick snap-on mating is needed. The RF connectors are available in 50 Ohm and frequencies up to 6 GHz. They are used in applications like:
- Telecommunication, base stations and telecom boxes
- Industrial machine-to-machine communication and automation
- Data communication and wireless LAN
- Measurement & test system and network analyzer
- Telecommunication, base stations and telecom boxes
- Industrial machine-to-machine communication and automation
- Data communication and wireless LAN
- Measurement & test system and network analyzer
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | MCX Connector |
| Gender | Female |
| Mounting Type | Surface Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Operating Frequency | 6GHz |
| Body Plating | Gold over Nickel |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
| Series | WR-MCX |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
