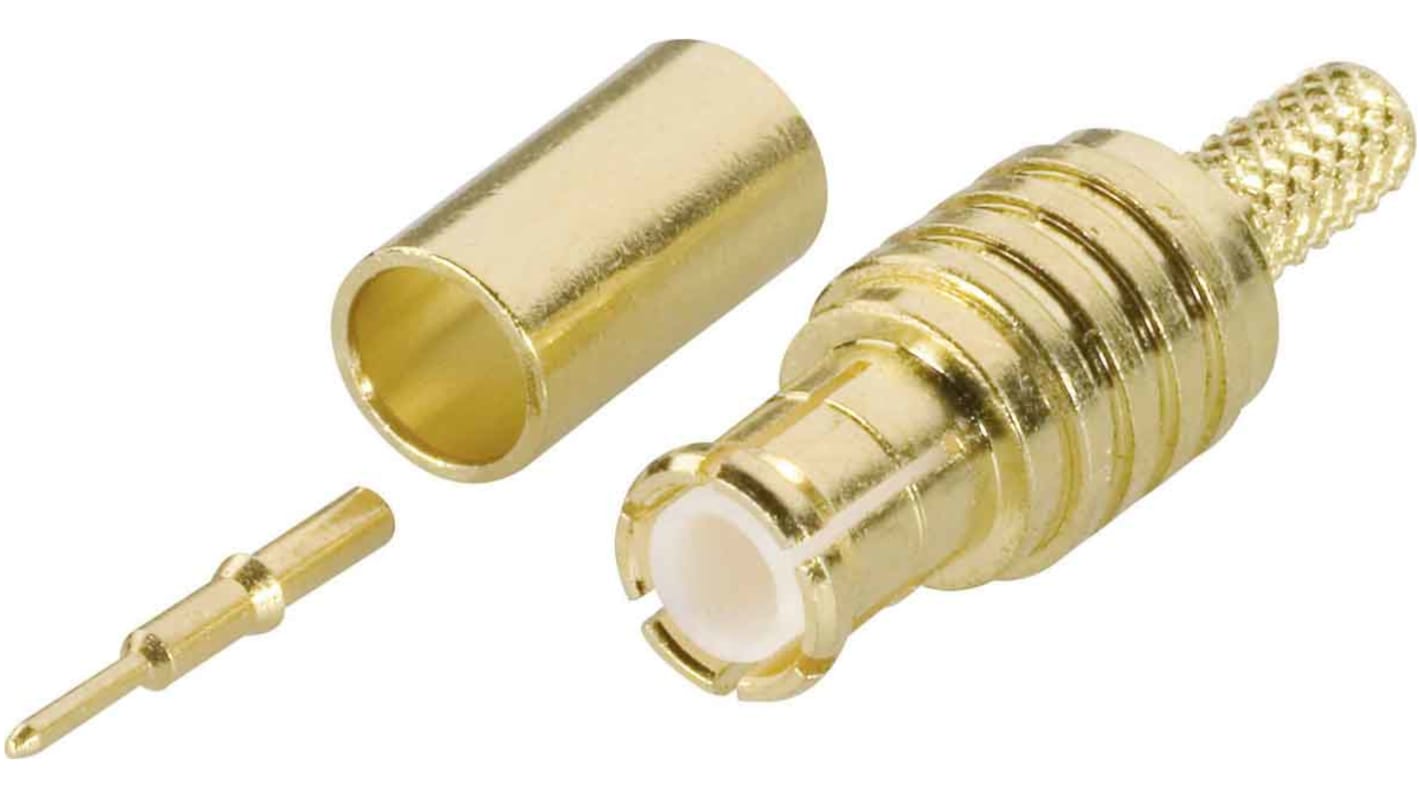

Amphenol RF MCX Connector, 50Ω, Solder Termination
- RS Stock No.:
- 194-3232
- Mfr. Part No.:
- MCX1121A1-3GT30G-5-50
- Brand:
- Amphenol RF
Subtotal (1 bag of 100 units)*
£373.50
(exc. VAT)
£448.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 + | £3.735 | £373.50 |
*price indicative
- RS Stock No.:
- 194-3232
- Mfr. Part No.:
- MCX1121A1-3GT30G-5-50
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol RF | |
| Coaxial Connector Type | MCX Connector | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Operating Frequency | 0 to 6GHz | |
| Minimum Operating Temperature | -65°C | |
| Polarity | Normal | |
| Maximum Operating Temperature | +165°C | |
Select all | ||
|---|---|---|
Brand Amphenol RF | ||
Coaxial Connector Type MCX Connector | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Operating Frequency 0 to 6GHz | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Maximum Operating Temperature +165°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Amphenol MCX Connector Series
The MCX (Micro Coaxial) series is available with 50 Ω or 75 Ω options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.
This series provides designers with options where weight and physical space are limited. While the MCX uses identical inner contact and insulator dimensions as the SMB, the outer diameter of the plug is .140 inches, which is 30% smaller than the SMB.
A range of connectors are available, including printed circuit board and cable connectors.
This series provides designers with options where weight and physical space are limited. While the MCX uses identical inner contact and insulator dimensions as the SMB, the outer diameter of the plug is .140 inches, which is 30% smaller than the SMB.
A range of connectors are available, including printed circuit board and cable connectors.
Features and Benefits
- Broadband performance with low reflection DC to 6 GHz. Low cost combined with high quality
- Quick connect/disconnect snap-on mating reduces installation time
- Accommodates a wide range of miniature RG flexible coaxial cables, including semi-rigid cable providing customers flexibility in their design and manufacturing
Applications
- WLAN
- GPS
- PC/LAN
- Automotive
- Base Station
- Head End Equipment
- Radios
- Wireless/ Networks Antenna
- Instrumentation
- Telecom
