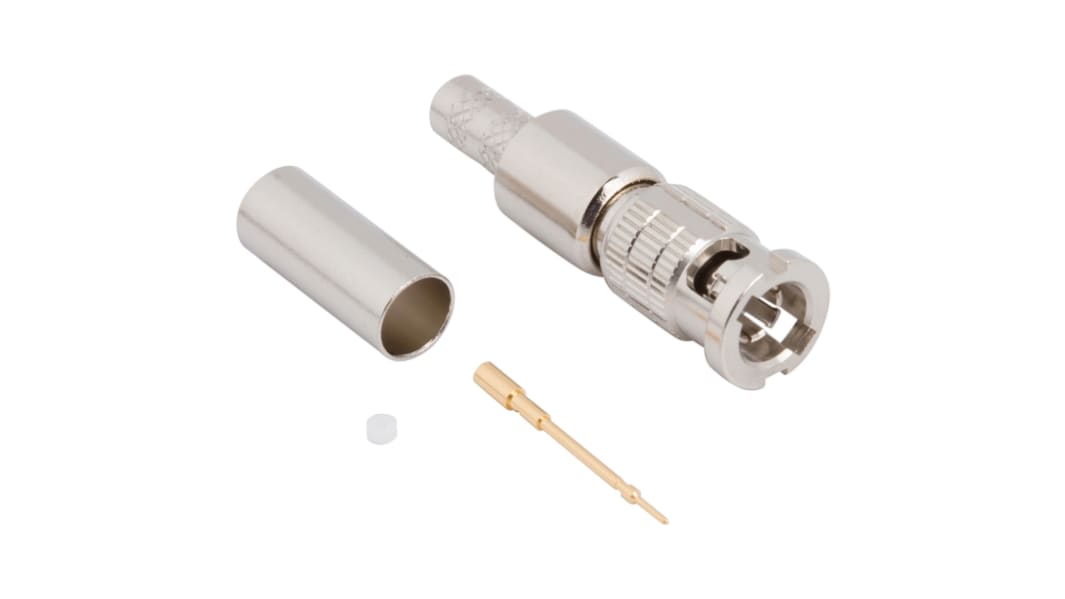

Amphenol RF HD-BNC Series HD-BNC Connector, 75Ω, Straight Body
- RS Stock No.:
- 194-3225
- Mfr. Part No.:
- 034-1107-12G
- Brand:
- Amphenol RF
Bulk discount available
Subtotal (1 unit)*
£10.06
(exc. VAT)
£12.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
- Plus 75 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £10.06 |
10 - 24 | £9.68 |
25 - 49 | £9.33 |
50 + | £8.99 |
*price indicative
- RS Stock No.:
- 194-3225
- Mfr. Part No.:
- 034-1107-12G
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol RF | |
Coaxial Connector Type | HD-BNC Connector | |
Impedance | 75Ω | |
Body Orientation | Straight | |
Cable Type | Belden 1855A, Belden 4855P, Belden 4855R | |
Operating Frequency | 18GHz | |
Body Plating | Nickel | |
Polarity | Standard | |
Series | HD-BNC | |
Contact Material | Phosphor Bronze | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand Amphenol RF | ||
Coaxial Connector Type HD-BNC Connector | ||
Impedance 75Ω | ||
Body Orientation Straight | ||
Cable Type Belden 1855A, Belden 4855P, Belden 4855R | ||
Operating Frequency 18GHz | ||
Body Plating Nickel | ||
Polarity Standard | ||
Series HD-BNC | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
HD-BNC Connector Series
Engineered to enhance electrical and mechanical performance, the HD-BNC connector line features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating.
The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4xs smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.
The HD-BNC product line delivers both true 50 and 75 ohm performance in a footprint 4xs smaller than traditional BNC connectors. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.
Features and Benefits
- Trusted bayonet style positive lock
- Closed entry interface
- VSWR or Return Loss: 30dB min @ 6GHz (for all straight configurations)
- Complete product portfolio including Calibration kit, Terminations and Precision adapters
- Assured mating with visual indicator
Applications
- Broadcast
- Military
- Instrumentation
