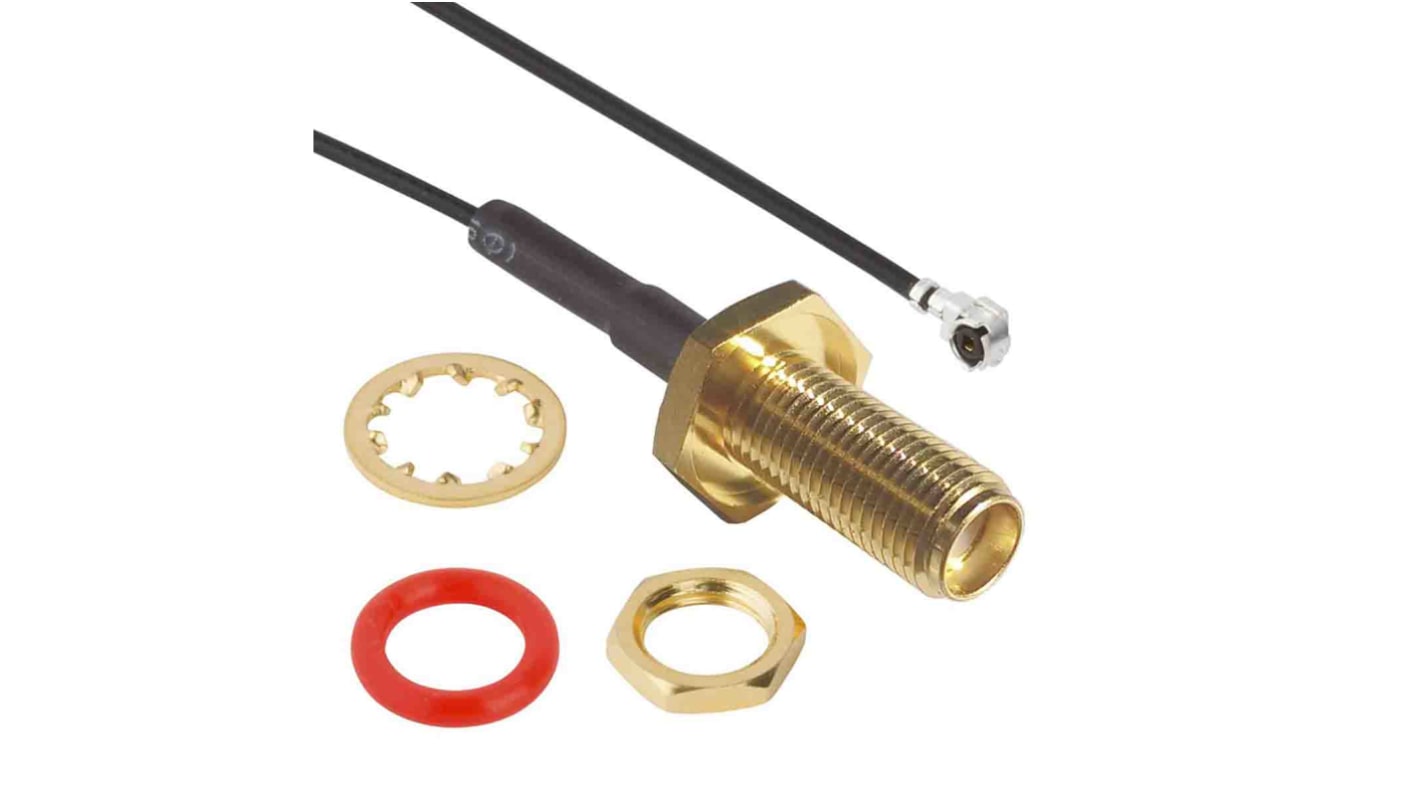

Amphenol RF SMA Series Female, Male Bulkhead SMA Connector, 50Ω, Right Angle Body
- RS Stock No.:
- 194-3219
- Mfr. Part No.:
- 336320-12-0150
- Brand:
- Amphenol RF
Subtotal (1 bag of 100 units)*
£1,793.20
(exc. VAT)
£2,151.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,900 unit(s) shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 + | £17.932 | £1,793.20 |
*price indicative
- RS Stock No.:
- 194-3219
- Mfr. Part No.:
- 336320-12-0150
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol RF | |
| Gender | Female, Male | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | Bulkhead | |
| Impedance | 50Ω | |
| Body Orientation | Right Angle | |
| Bulkhead | Yes | |
| Series | SMA | |
Select all | ||
|---|---|---|
Brand Amphenol RF | ||
Gender Female, Male | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Bulkhead | ||
Impedance 50Ω | ||
Body Orientation Right Angle | ||
Bulkhead Yes | ||
Series SMA | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Amphenol SMA Series
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 26.5 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and - 36 threaded coupling, which offers high performance in a compact design. For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
Features and Benefits
- Light weight, compact and vibration proof design
- Low cost commercial grade (Brass SMA) available in nickel or gold plating
- Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
Applications
- Base stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
