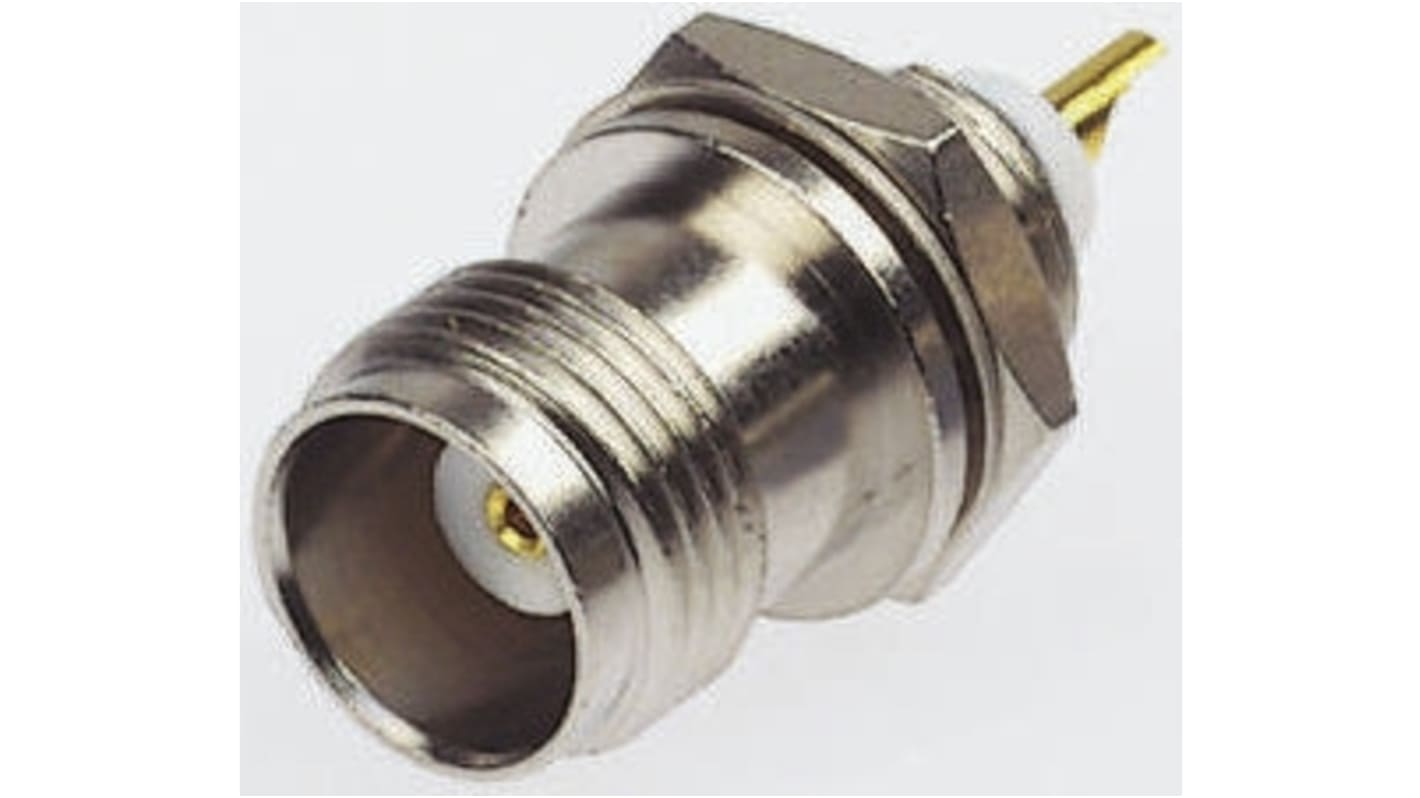

RS PRO, Jack Panel Mount TNC Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 193-8120
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£19.48
(exc. VAT)
£23.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
- Plus 999,999,991 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £19.48 |
| 15 - 49 | £18.33 |
| 50 - 99 | £17.32 |
| 100 - 249 | £16.40 |
| 250 + | £15.58 |
*price indicative
- RS Stock No.:
- 193-8120
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Coaxial Connector Type | TNC Connector | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | 32.1 mm | |
| Operating Frequency | 0 to 11GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel over Copper | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type TNC Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size 32.1 mm | ||
Operating Frequency 0 to 11GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel over Copper | ||
- COO (Country of Origin):
- DE
TNC Bulkhead Socket
Nickel Plated
Brass bodied TNC connectors with PTFE insulators and gold plated contacts.
Bulk kit containing 100 RG58 straight plugs 546-5200 is available, making production and servicing much easier. Component parts are neatly stored in a sturdy dispensing case
