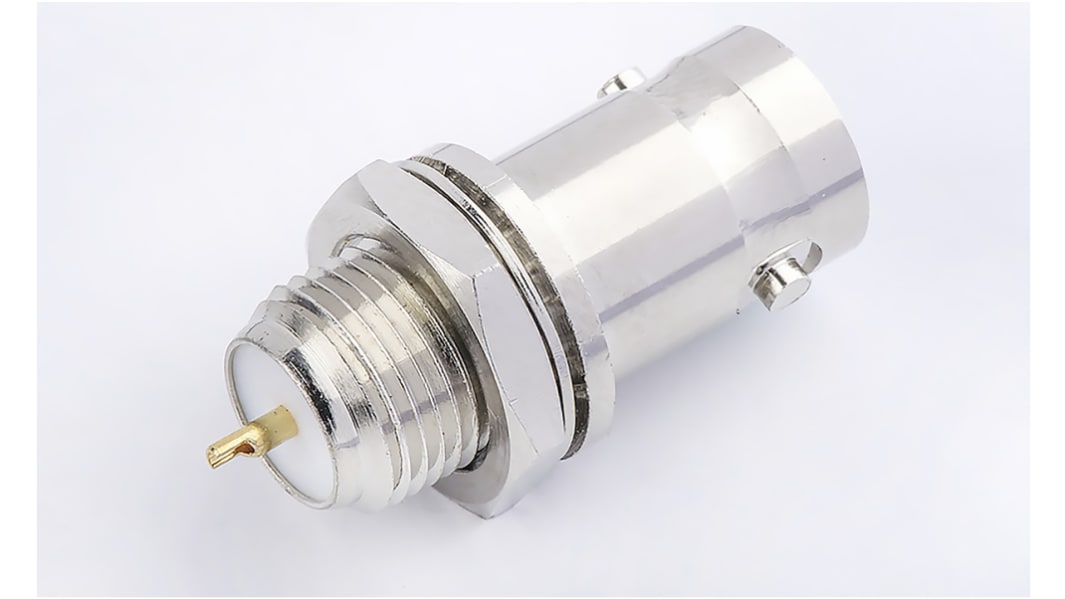

RS PRO Female, Male Panel Mount BNC Connector, 75Ω, Solder Termination, Straight Body
- RS Stock No.:
- 170-7017
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 170-7017
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coaxial Connector Type | BNC Connector | |
Gender | Female, Male | |
Mounting Type | Panel Mount | |
Impedance | 75Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Size | Standard | |
Bulkhead | Yes | |
Operating Frequency | 6GHz | |
Body Plating | Nickel | |
Minimum Operating Temperature | -65°C | |
Polarity | Normal | |
Maximum Operating Temperature | +165°C | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coaxial Connector Type BNC Connector | ||
Gender Female, Male | ||
Mounting Type Panel Mount | ||
Impedance 75Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 6GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
This is a 75 ohm BNC jack connector for PC board application. It will be horizontal to the PC board after soldering on PC board because of its PCB mount type. It has excellent performance form DC to 6GHz. This connector also has the bulkhead function, the applied panel thickness is .173" max.
Impedance: 75 OHM
Frequency Range:DC-6 GHz
V.S.W.R: 1.3 MAX
High Speed High Definition Video Applications such as 4K ULTRA HD TV and CoaXPress (CXP)
Finish: gold plated center contact & nickel plated body
Frequency Range:DC-6 GHz
V.S.W.R: 1.3 MAX
High Speed High Definition Video Applications such as 4K ULTRA HD TV and CoaXPress (CXP)
Finish: gold plated center contact & nickel plated body
