Amphenol RF MMCX Series Cable Male MCX, 50 Ω, Straight Body Crimp
- RS Stock No.:
- 170-2544
- Mfr. Part No.:
- MMCX1121A1-3GT30G-5-50
- Brand:
- Amphenol RF
Subtotal (1 bag of 100 units)*
£373.50
(exc. VAT)
£448.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 + | £3.735 | £373.50 |
*price indicative
- RS Stock No.:
- 170-2544
- Mfr. Part No.:
- MMCX1121A1-3GT30G-5-50
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol RF | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | MCX | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Orientation | Straight | |
| Connector Gender | Male | |
| Cable Type | RG-174U, RG188A/U, RG316/U | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 6GHz | |
| Body Plating | Gold | |
| Polarity | Normal | |
| Termination Type | Crimp | |
| Series | MMCX | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Amphenol RF | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type MCX | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Orientation Straight | ||
Connector Gender Male | ||
Cable Type RG-174U, RG188A/U, RG316/U | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 6GHz | ||
Body Plating Gold | ||
Polarity Normal | ||
Termination Type Crimp | ||
Series MMCX | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Brass | ||
Contact Plating Gold | ||

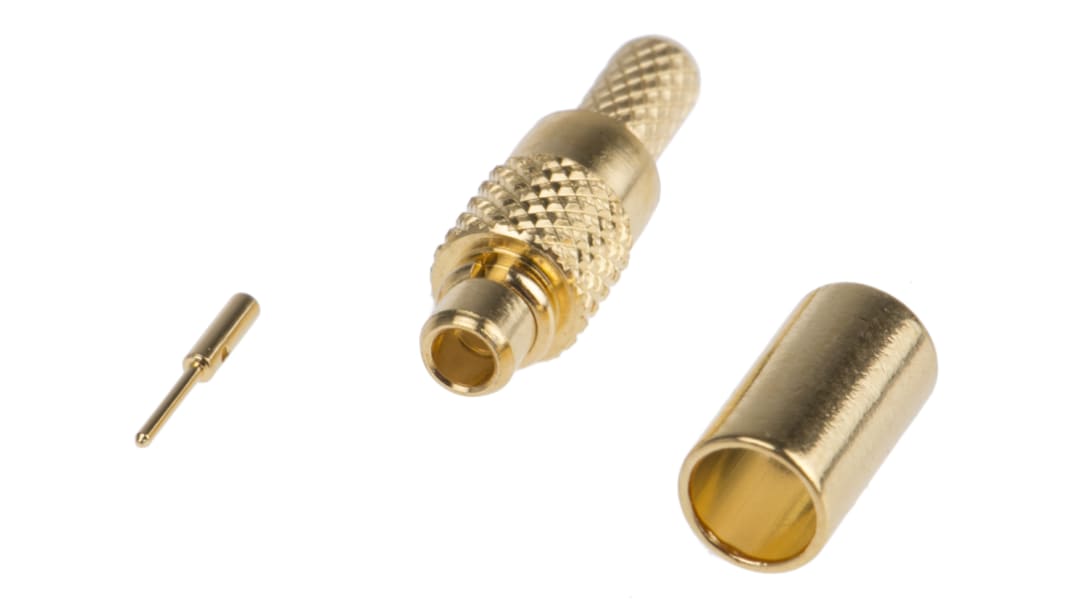

Amphenol 50 Ohm MMCX RF Coaxial Crimp Plug Connectors
50 Ohm MMCX RF coaxial crimp plug connectors with a crimp termination, TEFLON dielectric, a gold plated brass body and gold plated centre contact. These 50 Ohm MMCX RF coax crimp plug cable connectors are for use with RF coaxial cable types RG188, RG174 and RG316
Amphenol MMCX Connectors
