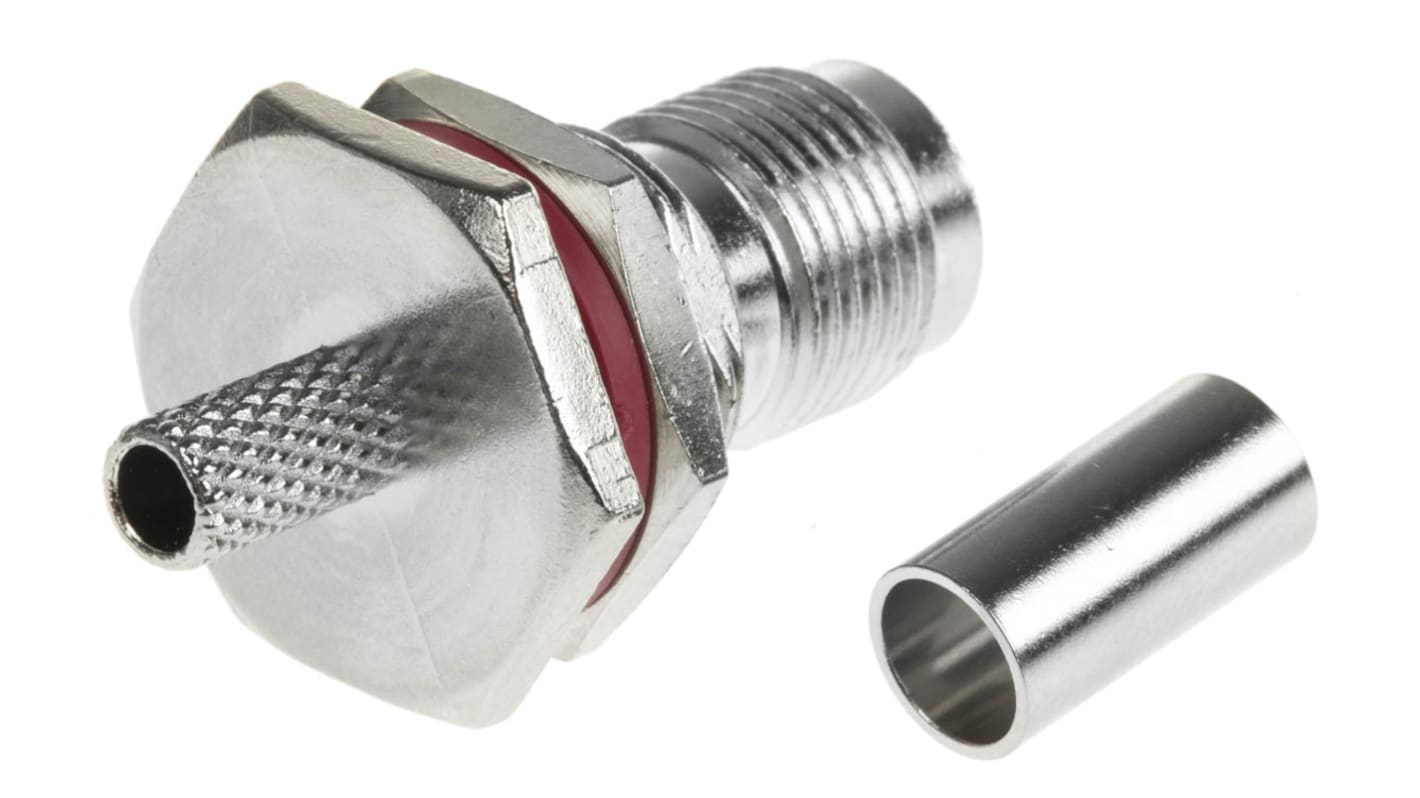

TE Connectivity, jack Panel Mount TNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 165-0629
- Mfr. Part No.:
- 5-1814802-3
- Brand:
- TE Connectivity
29 In stock - FREE next working day delivery available
Price Each (In a Box of 100)
£3.796
(exc. VAT)
£4.555
(inc. VAT)
Units | Per unit | Per Box* |
---|---|---|
100 + | £3.796 | £379.60 |
*price indicative
- RS Stock No.:
- 165-0629
- Mfr. Part No.:
- 5-1814802-3
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Rear Mounting Bulkhead Jack
Nickel plated connectors suitable for 50Ω or 75Ω applications. Complete with hex nut and washer.
TE Connectivity - Nickel Plated ZDC TNC
The TE Connectivity ZDC RoHS compliant coaxial connector series offers high quality cost-effective solutions for commercial applications by the use of precision die-cast components and thermoplastic dielectrics. The connector interface is fully compatible with the requirements of MIL-C-39012 and MIL STD348A, and therefore fully intermateable with products manufactured to these specifications. Available in a range of cable mounted plugs, bulkhead and PCB sockets, the TE Connectivity ZDC TNC range offers a comprehensive choice of solutions for cost demanding applications. The crimp connectors utilise standard hexagonal crimp tools and die-sets avoiding costly retooling.
Specifications
Attribute | Value |
---|---|
Gender | Female |
Coaxial Connector Type | TNC Connector |
Mounting Type | Panel Mount |
Impedance | 50Ω |
Termination Method | Crimp |
Body Orientation | Straight |
Cable Type | RG141 A/U, RG303/U, RG58 C/U |
Operating Frequency | 0 to 4GHz |
Minimum Operating Temperature | -65°C |
Body Plating | Nickel |
Maximum Operating Temperature | +85°C |
Contact Material | Phosphor Bronze |
Contact Plating | Nickel |
