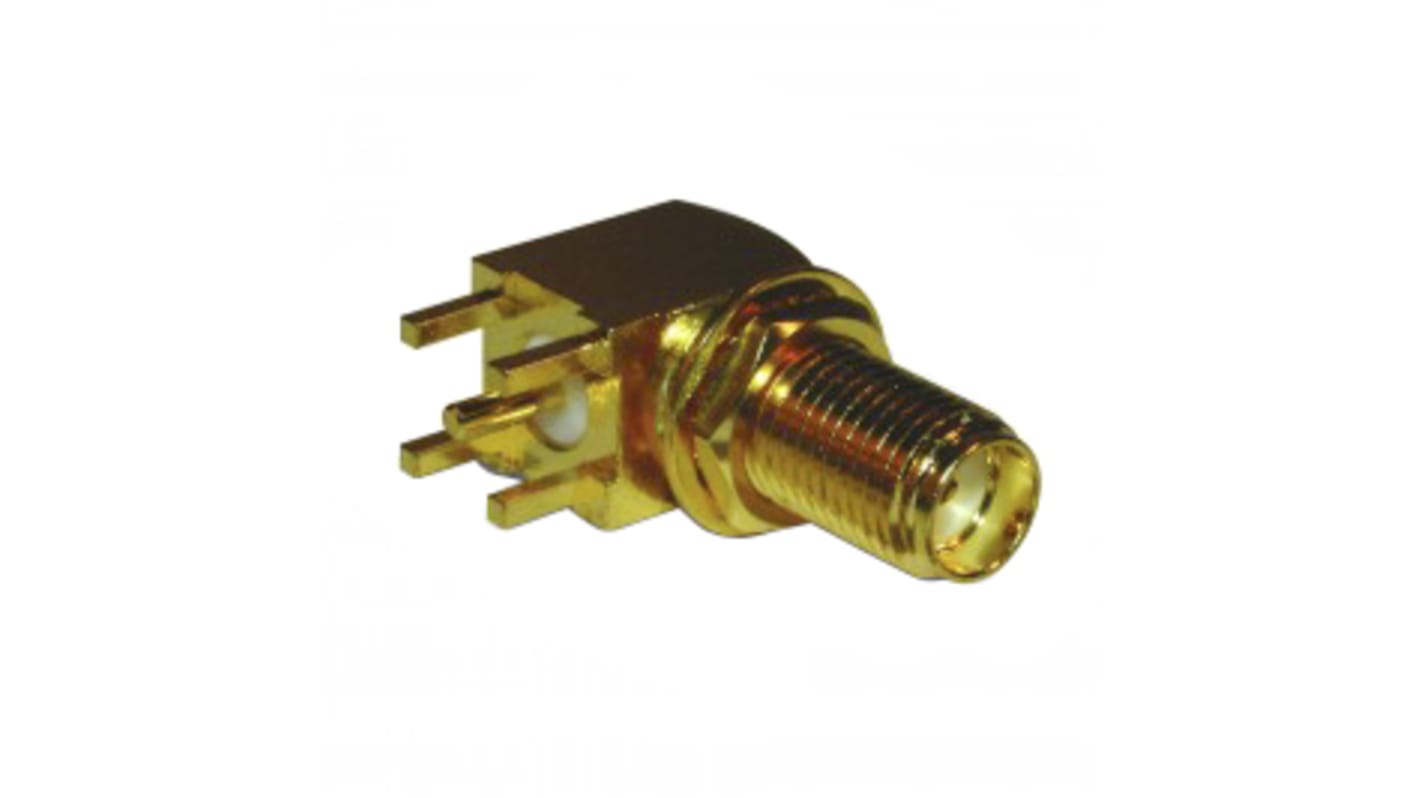

Amphenol RF, Jack PCB Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 144-0925
- Mfr. Part No.:
- 132203
- Brand:
- Amphenol RF
Bulk discount available
Subtotal (1 unit)*
£9.75
(exc. VAT)
£11.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 59 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 34 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £9.75 |
10 - 19 | £9.32 |
20 - 49 | £8.87 |
50 - 99 | £8.06 |
100 + | £7.66 |
*price indicative
- RS Stock No.:
- 144-0925
- Mfr. Part No.:
- 132203
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol RF | |
Coaxial Connector Type | SMA Connector | |
Gender | Female | |
Mounting Type | PCB Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Right Angle | |
Size | Standard | |
Bulkhead | No | |
Operating Frequency | 12.4GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -65°C | |
Polarity | Normal | |
Maximum Operating Temperature | +165°C | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Mating Type | Threaded | |
Select all | ||
---|---|---|
Brand Amphenol RF | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 12.4GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
The Connex SMA connectors are semi-precision, sub-miniature, high-frequency connectors which offer reliable broadband performance DC to 18GHz with low reflection and constant 50 ohm impedance. The main features are high mechanical strength, high durability and low VSWR. Matured design principles, careful manufacturing at all stages and a thorough quality assurance organization are the bases for the well-known quality of Connex SMA connectors.
Light weight, compact and vibration proof design
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
Low cost commercial grade (Brass SMA) available in nickel or gold plating
Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
RF Connector, SMA Right Angle PCB Jack, Through Hole, 50 Ohm, Bulkhead
