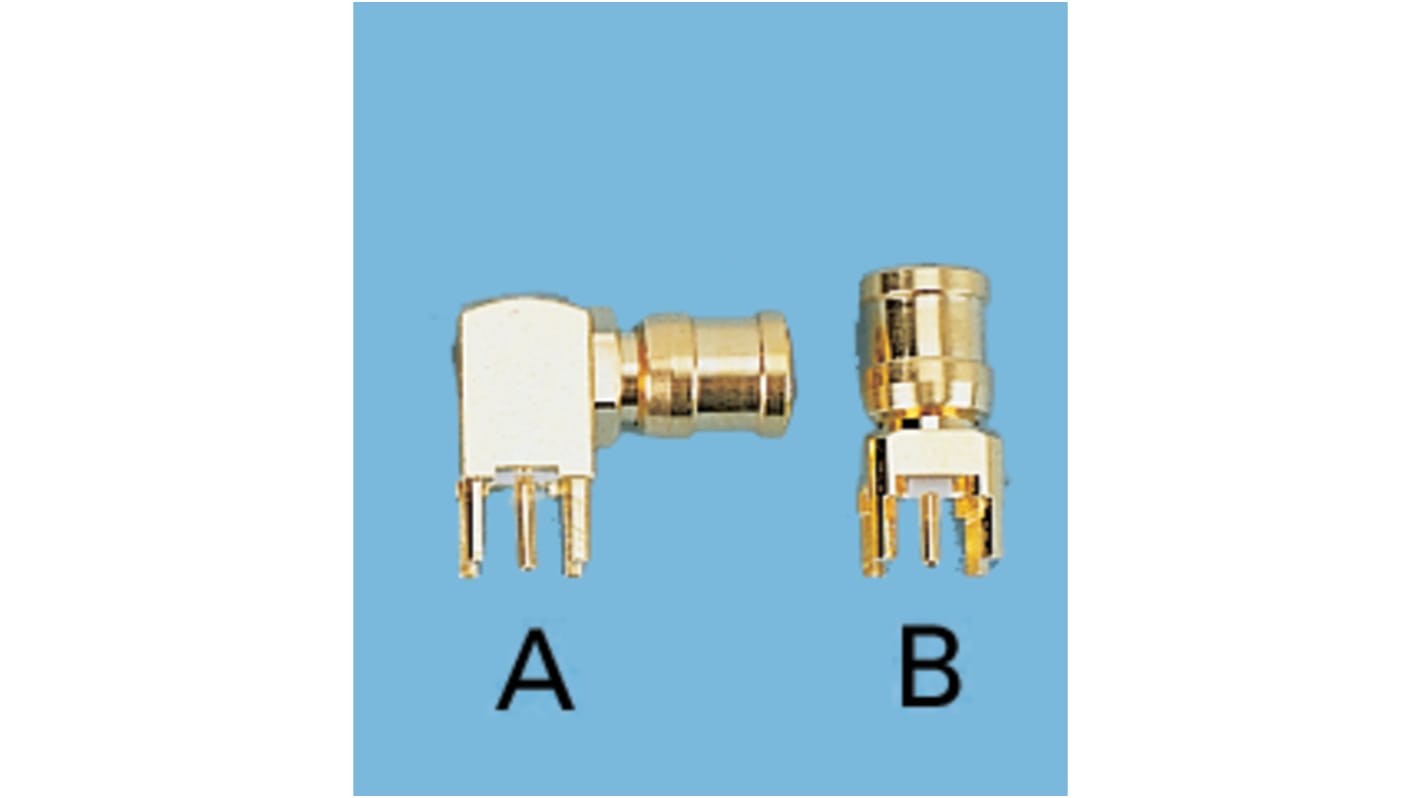

IMS, jack Through Hole SMB Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 124-9341
- Mfr. Part No.:
- 11.2520.001
- Brand:
- IMS
46 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£38.29
(exc. VAT)
£45.95
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £38.29 |
| 15 - 49 | £34.00 |
| 50 - 99 | £22.55 |
| 100 - 249 | £19.91 |
| 250 + | £13.86 |
- RS Stock No.:
- 124-9341
- Mfr. Part No.:
- 11.2520.001
- Brand:
- IMS
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
SMB female sockets for printed circuit boards
RS SMB RF Coaxial Connectors
SMB 50Ω connectors in clamp and crimp termination options.
Reliable and quick connect/disconnect system
Recommended for use with RG174A/ U cable
Recommended crimp tool 456-778
Recommended for use with RG174A/ U cable
Recommended crimp tool 456-778
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMB Connector |
| Gender | Female |
| Mounting Type | Through Hole |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Right Angle |
| Contact Material | Bronze |
| Contact Plating | Gold |
