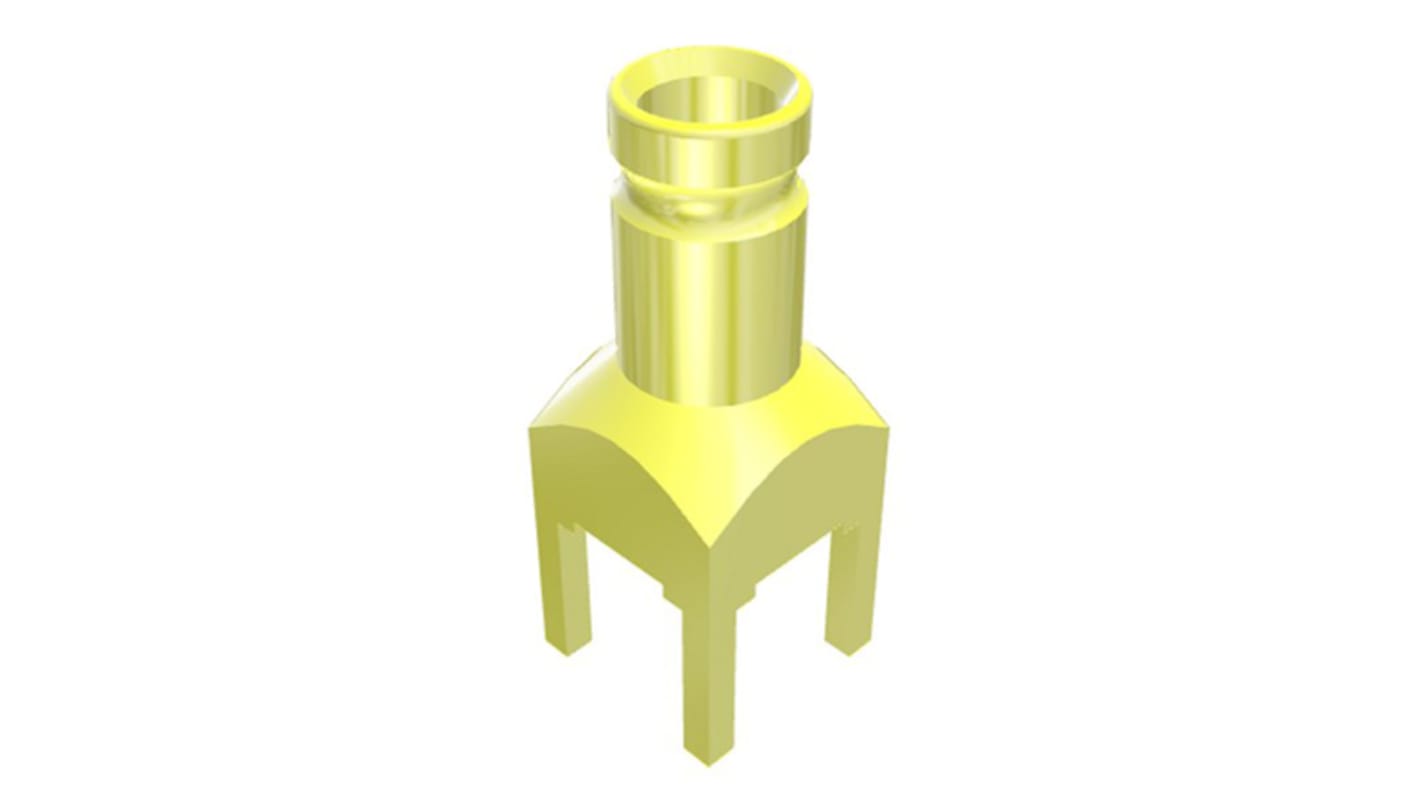

Samtec DIN7A Series PCB Female 1/2.3 Connector, 75 Ω, Straight Body Solder
- RS Stock No.:
- 123-6877
- Mfr. Part No.:
- DIN7A-J-P-GF-ST-TH1
- Brand:
- Samtec
Subtotal (1 unit)*
£4.51
(exc. VAT)
£5.41
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.51 |
*price indicative
- RS Stock No.:
- 123-6877
- Mfr. Part No.:
- DIN7A-J-P-GF-ST-TH1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Coaxial Connector Type | 1/2.3 Connector | |
| Product Type | Coaxial Connector | |
| Mount Type | PCB | |
| Impedance | 75Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Size | Standard | |
| Bulkhead | No | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Gold | |
| Polarity | Normal | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Series | DIN7A | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Coaxial Connector Type 1/2.3 Connector | ||
Product Type Coaxial Connector | ||
Mount Type PCB | ||
Impedance 75Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Size Standard | ||
Bulkhead No | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Polarity Normal | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Series DIN7A | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Samtec 1.0/2.3 PCB Mount Jacks
From Samtec, a series of 75 Ω DIN 1.0/2.3 PCB mount jacks. The 1.0/2.3 connectors have gold plated centre contacts and a PTFE insulator. The 1.0/2.3 jacks feature a push-pull coupling providing a secure and reliable connection allowing for quick mating and unmating. The compact design of these 1.0/2.3 connectors makes them ideal for high density board mounting for space critical applications.
Features and Benefits
Push-pull coupling
Gold plated inner and outer contacts
Small size for high density mounting
Applications
Data communications
Routers
Switching equipment
Video processors
Encoders
Telecom
Samtec 1.0/2.3 Range
