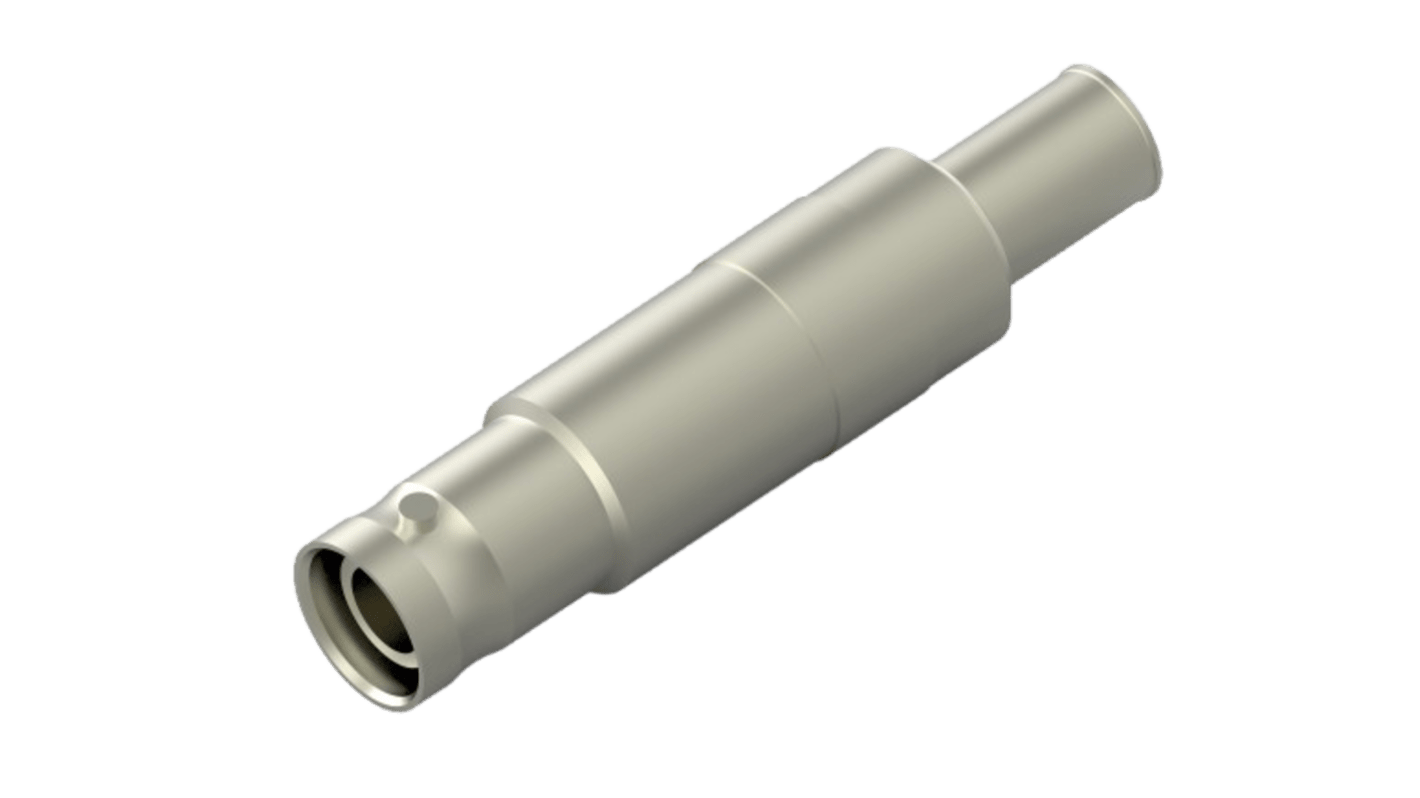

TE Connectivity 2250 Series Cable SHV Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 470-753
- Mfr. Part No.:
- 225087-5
- Brand:
- TE Connectivity
Subtotal (1 pack of 3 units)*
£193.30
(exc. VAT)
£231.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £193.30 | £64.433 |
*price indicative
- RS Stock No.:
- 470-753
- Mfr. Part No.:
- 225087-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coaxial Connector Type | SHV Connector | |
Mounting Type | Cable | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Straight | |
Series | 2250 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coaxial Connector Type SHV Connector | ||
Mounting Type Cable | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Series 2250 | ||
- COO (Country of Origin):
- MX
The TE Connectivity SHV jack is a high-performance connector designed for use in demanding RF applications. Made from durable brass with nickel plating, this connector ensures reliable performance in high voltage conditions, making it ideal for various telecom and industrial applications. The bayonet coupling mechanism provides a secure connection while allowing for easy mating and unmating. Operating at an impressive frequency of up to 0.3 GHz, this component is compatible with multiple RF cable types, ensuring versatility and ease of integration into existing systems. With its precise engineering and robust construction, this SHV jack guarantees consistent signal integrity and mechanical stability, even under challenging environmental conditions.
Designed for high voltage RF applications
Constructed from robust brass for enhanced durability
Features a secure bayonet coupling mechanism
Suitable for a wide array of RF cable types
Nickel plating ensures excellent corrosion resistance
Mechanical attachment features for secure connection
Easy to integrate into various systems and setups
Constructed from robust brass for enhanced durability
Features a secure bayonet coupling mechanism
Suitable for a wide array of RF cable types
Nickel plating ensures excellent corrosion resistance
Mechanical attachment features for secure connection
Easy to integrate into various systems and setups
