RS PRO, 100m, URM70 Coaxial, Unterminated75 Ω
- RS Stock No.:
- 521-8054
- Brand:
- RS PRO

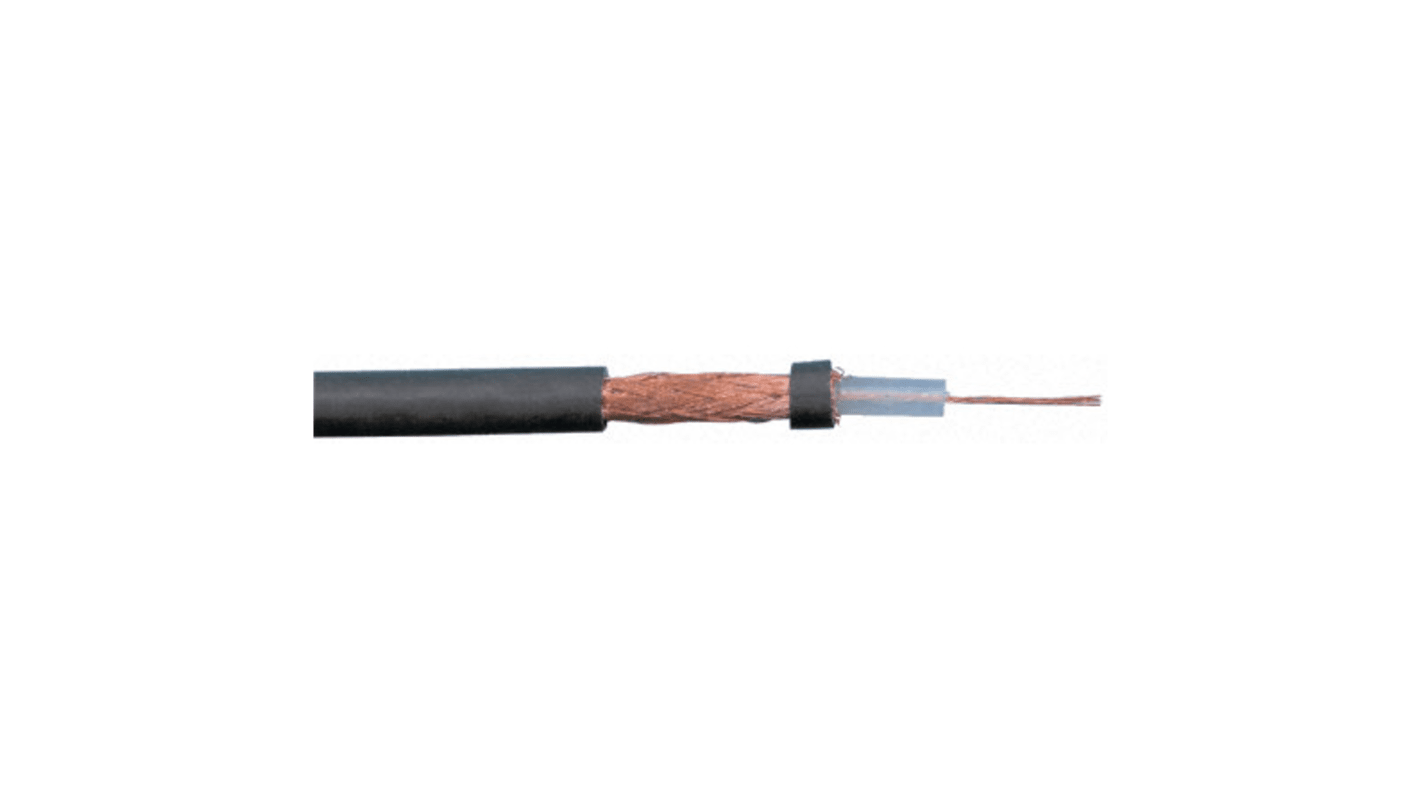

Image representative of range
Subtotal (1 reel of 100 metres)*
£168.97
(exc. VAT)
£202.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £168.97 | £1.69 |
*price indicative
- RS Stock No.:
- 521-8054
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | URM70 | |
| Outer Diameter | 5.8mm | |
| CPR Certification | Eca | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 15.2 dB/100m @ 100MHz, 21.8 dB/100m @ 200MHz, 39.1 dB/100m @ 600MHz, 51.7 dB/100m @ 1GHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Stranded | |
| Number of Strands | 7 | |
| Maximum Operating Temperature | +70°C | |
| Size of Strands | 0.2 mm | |
| Conductor Material | Tinned Copper | |
| Sheath Material | Flame Retardant Non-Corrosive (FRNC) | |
| Operating Temperature Range | -15 → +70 °C | |
| Velocity ratio | 66% | |
| Minimum Operating Temperature | -15°C | |
| Capacitance | 67pF/m | |
| Series | URM70NH | |
| Core Strands | 7/0.2 | |
| Insulation Material | PE | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type URM70 | ||
Outer Diameter 5.8mm | ||
CPR Certification Eca | ||
Characteristic Impedance 75 Ω | ||
Attenuation 15.2 dB/100m @ 100MHz, 21.8 dB/100m @ 200MHz, 39.1 dB/100m @ 600MHz, 51.7 dB/100m @ 1GHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Stranded | ||
Number of Strands 7 | ||
Maximum Operating Temperature +70°C | ||
Size of Strands 0.2 mm | ||
Conductor Material Tinned Copper | ||
Sheath Material Flame Retardant Non-Corrosive (FRNC) | ||
Operating Temperature Range -15 → +70 °C | ||
Velocity ratio 66% | ||
Minimum Operating Temperature -15°C | ||
Capacitance 67pF/m | ||
Series URM70NH | ||
Core Strands 7/0.2 | ||
Insulation Material PE | ||
- COO (Country of Origin):
- NL
URM70 LSF
7//0.2mm plain copper stranded conductor, solid polyethylene insulation, plain copper braiding in a black flame retardant halogen free sheath.
Connector / Cable group D
