Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Terminated/Unterminated	Unterminated
	Coaxial Type	RG179
	Outer Diameter	2.8mm
	CPR Certification	Fca
	Characteristic Impedance	75 Ω
	Attenuation	52.5 dB/100m @ 400MHz, 64.6 dB/100m @ 700MHz, 73.2 dB/100m @ 900MHz, 78.7 dB/100m @ 1GHz
	Length	50m
	Sheath Colour	Black
	Conductor Strand Type	Stranded
	Voltage Rating	2 kV
	Number of Strands	7
	Capacitance	64pF/m
	Maximum Operating Temperature	+70°C
	Shielding	Tinned Copper Braid
	Core Strands	14062
	Operating Temperature Range	-30 → +70 °C
	Size of Strands	38 AWG
	Conductor Material	Silver Plated Copper Clad Steel
	Series	MRG1791
	Velocity ratio	69.5%
	Insulation Material	TFE
	Sheath Material	Polyvinyl Chloride PVC
	Minimum Operating Temperature	-25°C

	Select all
	Brand RS PRO
	Terminated/Unterminated Unterminated
	Coaxial Type RG179
	Outer Diameter 2.8mm
	CPR Certification Fca
	Characteristic Impedance 75 Ω
	Attenuation 52.5 dB/100m @ 400MHz, 64.6 dB/100m @ 700MHz, 73.2 dB/100m @ 900MHz, 78.7 dB/100m @ 1GHz
	Length 50m
	Sheath Colour Black
	Conductor Strand Type Stranded
	Voltage Rating 2 kV
	Number of Strands 7
	Capacitance 64pF/m
	Maximum Operating Temperature +70°C
	Shielding Tinned Copper Braid
	Core Strands 14062
	Operating Temperature Range -30 → +70 °C
	Size of Strands 38 AWG
	Conductor Material Silver Plated Copper Clad Steel
	Series MRG1791
	Velocity ratio 69.5%
	Insulation Material TFE
	Sheath Material Polyvinyl Chloride PVC
	Minimum Operating Temperature -25°C

COO (Country of Origin):: NL

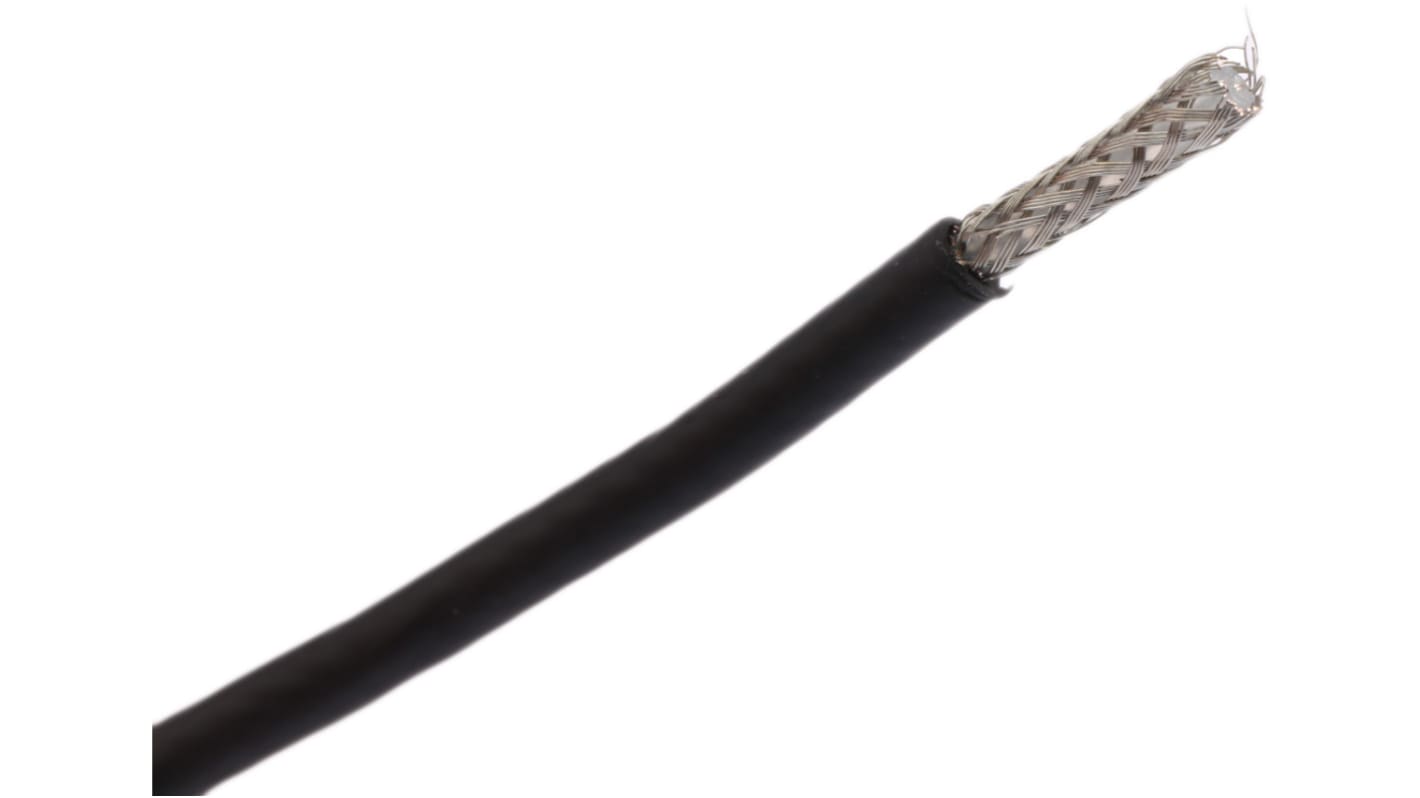

Belden RG179 Coaxial Cable, 75 ohm Capacitance, TFE Insulation - MRG1791.0050

This coaxial cable by Belden, with a capacitance of 75 ohms offers top-notch performance in various applications. It boasts high-quality materials and superior design, making it a reliable choice for your connectivity needs.

Features & Benefits

• Capacitance of 75 ohms ensures optimal signal transmission
• Silver plated copper clad steel conductor for enhanced conductivity
• TFE insulation for durability and flexibility
• High attenuation capability for reduced signal interference
• Black PVC sheathed design for protection and longevity
• Tinned copper braid shielding for maximum signal integrity
• Suitable for high temperature environments, with a temperature range of -25°C to +70°C

Applications

• Ideal for use in automation systems
• Suitable for electronic circuits and equipment
• Can be used for electrical installations in industrial settings

Can it withstand extreme temperatures?

Yes, this cable can operate efficiently in temperatures ranging from -25°C to +70°C.

Will it provide reliable signal transmission?

Yes, the high-quality design ensures optimal conductivity for superior signal integrity.

Is it suitable for industrial applications?

Yes, this coaxial cable is suitable for use in various industrial settings.

RS PRO, 50m, RG179 Coaxial, Unterminated75 Ω
