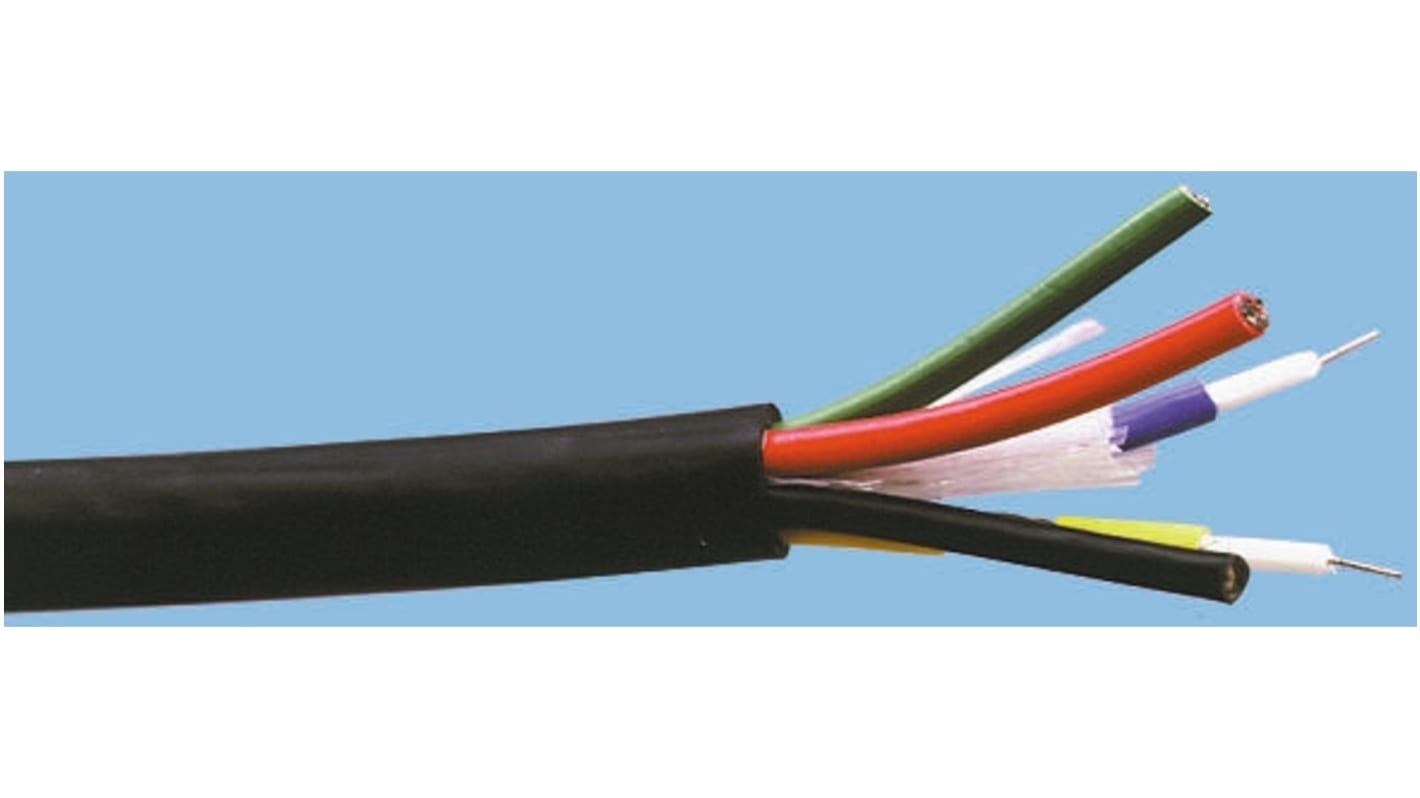

S2Ceb-Groupe Cae, 100m, RG179B/U Coaxial, Unterminated75 Ω
- RS Stock No.:
- 373-0158
- Mfr. Part No.:
- MC05
- Brand:
- S2Ceb-Groupe Cae
Stock information currently inaccessible
- RS Stock No.:
- 373-0158
- Mfr. Part No.:
- MC05
- Brand:
- S2Ceb-Groupe Cae
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | S2Ceb-Groupe Cae | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG179B/U | |
| Outer Diameter | 10mm | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 15.3 dB/100m @ 50MHz, 22 dB/100m @ 100MHz, 6.6 dB/100m @ 10MHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Solid | |
| Core Strands | 1/0.4 mm | |
| Size of Strands | 0.4 mm | |
| Insulation Material | PE | |
| Velocity ratio | 80% | |
| Minimum Operating Temperature | -30°C | |
| Number of Strands | 1 | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Operating Temperature Range | -30 → +85 °C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand S2Ceb-Groupe Cae | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG179B/U | ||
Outer Diameter 10mm | ||
Characteristic Impedance 75 Ω | ||
Attenuation 15.3 dB/100m @ 50MHz, 22 dB/100m @ 100MHz, 6.6 dB/100m @ 10MHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Solid | ||
Core Strands 1/0.4 mm | ||
Size of Strands 0.4 mm | ||
Insulation Material PE | ||
Velocity ratio 80% | ||
Minimum Operating Temperature -30°C | ||
Number of Strands 1 | ||
Sheath Material Polyvinyl Chloride PVC | ||
Operating Temperature Range -30 → +85 °C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- IT
