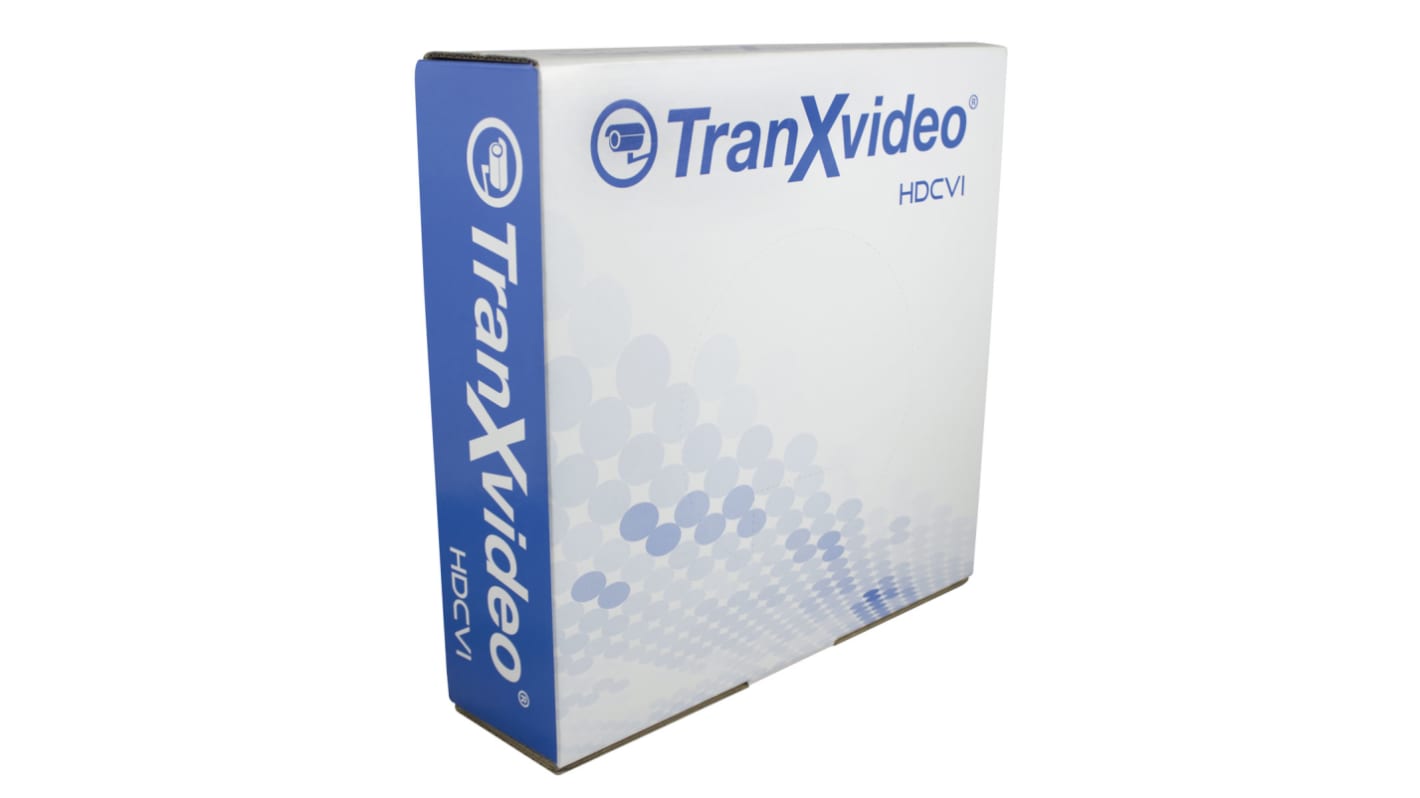

S2Ceb-Groupe Cae S2CEB Series, 250m, Solid Coaxial, Unterminated75 Ω
- RS Stock No.:
- 175-7240
- Mfr. Part No.:
- HDCVI28B200
- Brand:
- S2Ceb-Groupe Cae
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 175-7240
- Mfr. Part No.:
- HDCVI28B200
- Brand:
- S2Ceb-Groupe Cae
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | S2Ceb-Groupe Cae | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | Solid | |
| Outer Diameter | 4.5mm | |
| CPR Certification | Eca | |
| Characteristic Impedance | 75 Ω | |
| Attenuation | 43 dB/ 100 m @ 1500 MHz | |
| Length | 250m | |
| Sheath Colour | Blue | |
| Conductor Strand Type | Solid | |
| Fire Behaviour | Flame Retardant, Self-extinguishing | |
| Core Strands | 1/0.6 | |
| Series | S2CEB | |
| Minimum Operating Temperature | -10°C | |
| Size of Strands | 0.60 mm | |
| Shielding | Red copper braid | |
| Operating Temperature Range | - 10 → +80 °C | |
| Standards Met | Euroclass Eca | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Capacitance | 56pF/m | |
| Insulation Material | Foam PE | |
| Velocity ratio | 78% | |
| Maximum Operating Temperature | +80°C | |
| Conductor Material | Bare Copper | |
| Select all | ||
|---|---|---|
Brand S2Ceb-Groupe Cae | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type Solid | ||
Outer Diameter 4.5mm | ||
CPR Certification Eca | ||
Characteristic Impedance 75 Ω | ||
Attenuation 43 dB/ 100 m @ 1500 MHz | ||
Length 250m | ||
Sheath Colour Blue | ||
Conductor Strand Type Solid | ||
Fire Behaviour Flame Retardant, Self-extinguishing | ||
Core Strands 1/0.6 | ||
Series S2CEB | ||
Minimum Operating Temperature -10°C | ||
Size of Strands 0.60 mm | ||
Shielding Red copper braid | ||
Operating Temperature Range - 10 → +80 °C | ||
Standards Met Euroclass Eca | ||
Sheath Material Polyvinyl Chloride PVC | ||
Capacitance 56pF/m | ||
Insulation Material Foam PE | ||
Velocity ratio 78% | ||
Maximum Operating Temperature +80°C | ||
Conductor Material Bare Copper | ||
- COO (Country of Origin):
- CN
The CAE Group coaxial cable is unterminated to unterminated HDCVI28B200 coaxial type.
Colour: Blue
