RS PRO Male SMA to Male SMA, 500mm, RG316 Coaxial, Terminated50 Ω
- RS Stock No.:
- 283-4817
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£31.35
(exc. VAT)
£37.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 35 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £31.35 |
10 + | £25.79 |
*price indicative
- RS Stock No.:
- 283-4817
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Connector 1 | SMA | |
Terminated/Unterminated | Terminated | |
Coaxial Type | RG316 | |
Connector 2 | SMA | |
Connector 1 Gender | Male | |
Connector 2 Gender | Male | |
Connector 1 Orientation | Straight | |
Connector 2 Orientation | Straight | |
Outer Diameter | 2.5mm | |
Characteristic Impedance | 50 Ω | |
Length | 500mm | |
Sheath Colour | Brown | |
Conductor Strand Type | Stranded | |
Number of Strands | 7 | |
Sheath Material | FEP | |
Size of Strands | 0.17mm | |
Core Strands | 7/0.17mm | |
Conductor Material | Silver Plated Copper Clad Steel | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Connector 1 SMA | ||
Terminated/Unterminated Terminated | ||
Coaxial Type RG316 | ||
Connector 2 SMA | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 2 Orientation Straight | ||
Outer Diameter 2.5mm | ||
Characteristic Impedance 50 Ω | ||
Length 500mm | ||
Sheath Colour Brown | ||
Conductor Strand Type Stranded | ||
Number of Strands 7 | ||
Sheath Material FEP | ||
Size of Strands 0.17mm | ||
Core Strands 7/0.17mm | ||
Conductor Material Silver Plated Copper Clad Steel | ||
- COO (Country of Origin):
- GB

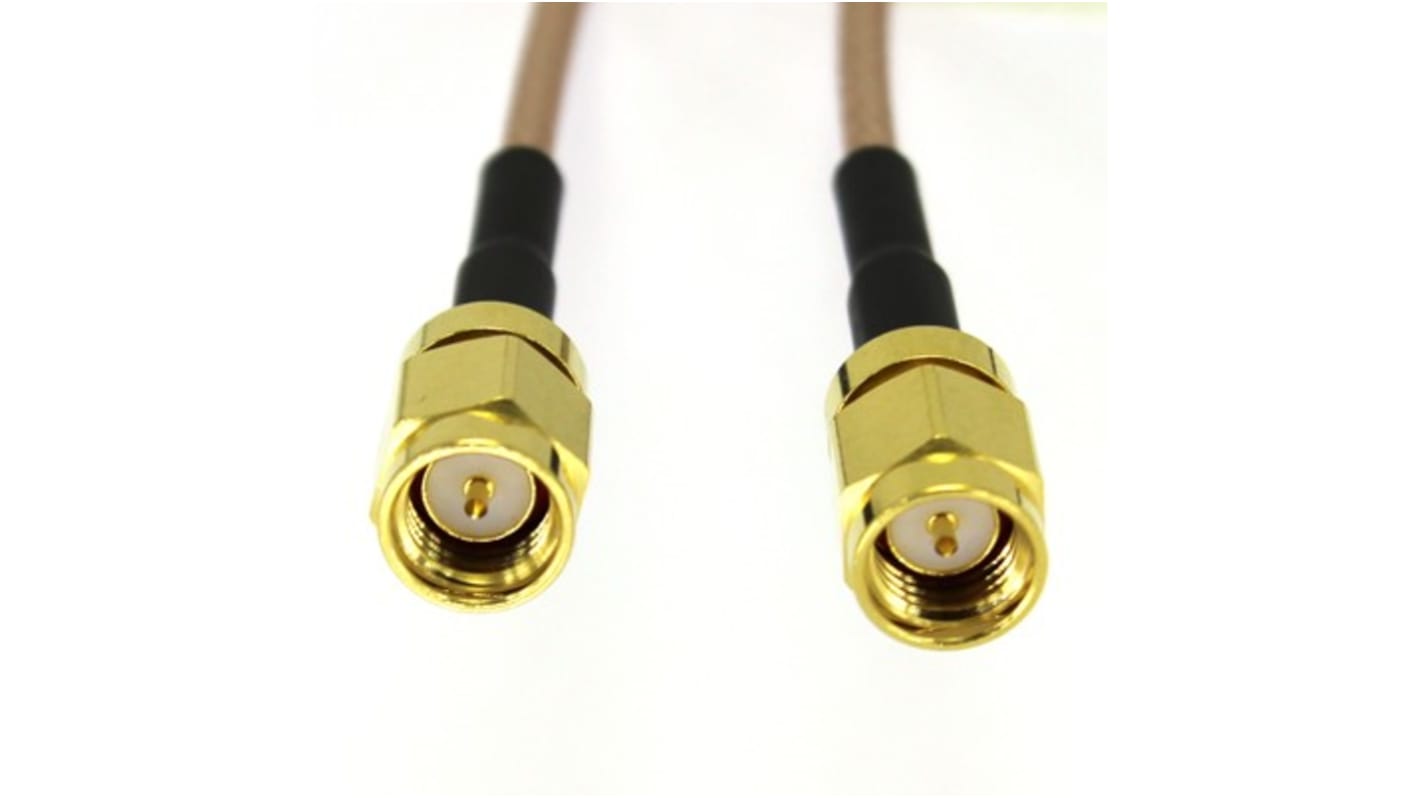

RS PRO 500mm SMA Plug to SMA Plug Coax Cable (50 Ω)
A 500mm RG316 coax cable terminated in a SMA to SMA (Sub-miniature A) plug providing a high quality connection in areas with limited space or as a pairing cable with cable extensions.
The SMA coax cable features a Fluorinated Ethylene Propylene (FEP) sheath offering excellent wear resistance with strain relief protecting against breaks and splits.
Featuring a Silver plated Copper clad Steel central pin for a highly stable and reliable connection the coaxial cable is ideal for industrial applications enabling high speed data transfer between devices.
The SMA coax cable features a Fluorinated Ethylene Propylene (FEP) sheath offering excellent wear resistance with strain relief protecting against breaks and splits.
Featuring a Silver plated Copper clad Steel central pin for a highly stable and reliable connection the coaxial cable is ideal for industrial applications enabling high speed data transfer between devices.
Features and Benefits
500mm coaxial cable assembly
SMA to SMA
Plug to plug
Male connection
RG316 coax cable
50 Ω impedance
FEP sheath
PTFE dielectric
2.5mm cable diameter
SMA to SMA
Plug to plug
Male connection
RG316 coax cable
50 Ω impedance
FEP sheath
PTFE dielectric
2.5mm cable diameter
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
