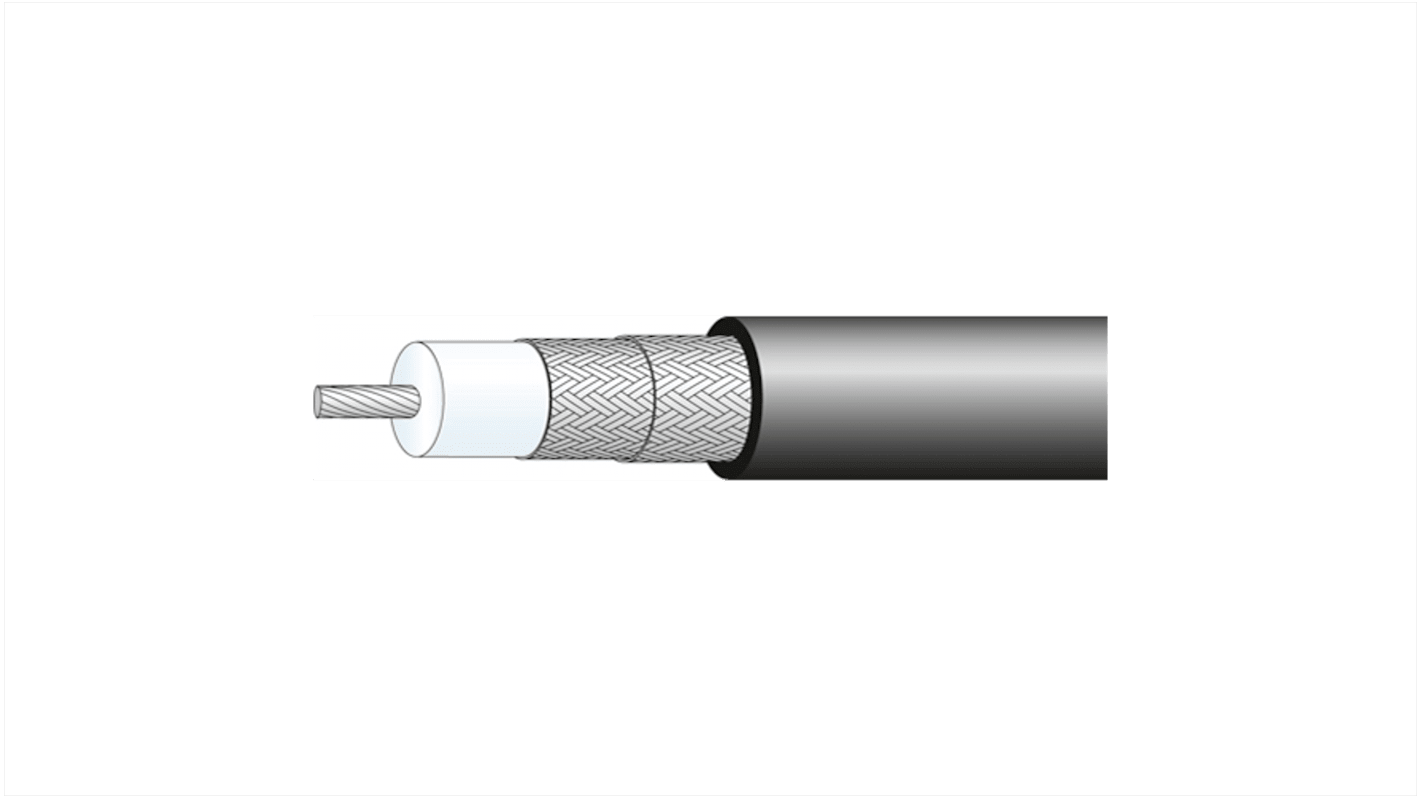

Huber+Suhner RADOX_RF_316_D Series, RG316/D Coaxial Coaxial Cable 50 Ω, Jet Black, Unterminated
- RS Stock No.:
- 240-8140
- Distrelec Article No.:
- 302-59-943
- Mfr. Part No.:
- RADOX_RF_316_D
- Brand:
- Huber+Suhner
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
£800.40
(exc. VAT)
£960.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 100 unit(s) shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 - 400 | £8.004 | £800.40 |
| 500 + | £7.78 | £778.00 |
*price indicative
- RS Stock No.:
- 240-8140
- Distrelec Article No.:
- 302-59-943
- Mfr. Part No.:
- RADOX_RF_316_D
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Terminated/Unterminated | Unterminated | |
| Product Type | Coaxial Cable | |
| Coaxial Type | RG316/D | |
| Voltage | 1.5kVrms | |
| Outside Diameter | 3.2mm | |
| Characteristic Impedance | 50Ω | |
| Conductor Type | Stranded | |
| Attenuation | 3.2 dB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Jacket Colour | Jet Black | |
| Standards/Approvals | UL 1581 § 1100, NFPA-130, 2012/19/EU (WEEE)), IEC 60332-3-24, 2000/53/EC (ELV)), EN 45545 HL3, CFR/JAR/CS Part 25 Appendix F, 1907/2006/EC (REACH)), EN 50305, 9.1.2, 2011/65/EU (RoHS - including 2015/863 and 2017/2102)), IEC 60754, EN 60332-1-2, EN 61034-2 | |
| Fire Behaviour | Flame Retardant, Highly Flame Retardant | |
| Conductor Material | Steel, Copper Silver Plated | |
| Series | RADOX_RF_316_D | |
| Jacket Material | Em104 | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Terminated/Unterminated Unterminated | ||
Product Type Coaxial Cable | ||
Coaxial Type RG316/D | ||
Voltage 1.5kVrms | ||
Outside Diameter 3.2mm | ||
Characteristic Impedance 50Ω | ||
Conductor Type Stranded | ||
Attenuation 3.2 dB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Jacket Colour Jet Black | ||
Standards/Approvals UL 1581 § 1100, NFPA-130, 2012/19/EU (WEEE)), IEC 60332-3-24, 2000/53/EC (ELV)), EN 45545 HL3, CFR/JAR/CS Part 25 Appendix F, 1907/2006/EC (REACH)), EN 50305, 9.1.2, 2011/65/EU (RoHS - including 2015/863 and 2017/2102)), IEC 60754, EN 60332-1-2, EN 61034-2 | ||
Fire Behaviour Flame Retardant, Highly Flame Retardant | ||
Conductor Material Steel, Copper Silver Plated | ||
Series RADOX_RF_316_D | ||
Jacket Material Em104 | ||
- COO (Country of Origin):
- CH
Huber+Suhner Coaxial Cable, 50Ω Characteristic Impedance, 3.2 dB Attenuation - RADOX_RF_316_D
This coaxial cable is designed to carry RF signals in demanding industrial and transport environments, offering a balance of electrical performance and environmental resilience for automation, electronics and electrical systems. It is an unterminated 50Ω RF cable meant for installations where a compact, flexible feedline is required and where flame performance and regulatory conformity are necessary.
Features and Benefits:
• Low attenuation 3.2 dB provides efficient signal transfer
• Rated for operation up to 105°C for high-temperature use
• Withstands -40°C for cold-climate installations
• 1.5 kVrms withstands elevated voltage events
• Silver-plated stranded steel conductor improves conductivity and durability
• Jet black Em104 jacket offers flame-retardant mechanical protection
• Rated for operation up to 105°C for high-temperature use
• Withstands -40°C for cold-climate installations
• 1.5 kVrms withstands elevated voltage events
• Silver-plated stranded steel conductor improves conductivity and durability
• Jet black Em104 jacket offers flame-retardant mechanical protection
Applications
• Suitable for on-board rail and mass-transit signal links where fire standards matter
• Ideal for interconnects in industrial RF test rigs and automation systems
• Used with high-density wiring looms in aerospace and avionics installations
• Can be used for shielded connections in control cabinets and instrumentation panels
• Ideal for interconnects in industrial RF test rigs and automation systems
• Used with high-density wiring looms in aerospace and avionics installations
• Can be used for shielded connections in control cabinets and instrumentation panels
What conductor construction is used to balance strength and conductivity?
A stranded steel core with a silver-plated copper exterior combines mechanical robustness with improved surface conductivity for high-frequency transmission.
How does the cable manage fire-safety requirements in public-transport applications?
The cable is manufactured to meet stringent flame-behaviour criteria, including standards for low smoke and flame performance suitable for transport environments.
Is the cable supplied ready-terminated for immediate connectorisation?
It is provided unterminated to allow Custom Connector fitting and assembly to match specific system requirements.
What temperature range can it reliably operate within?
The cable is specified for continuous use from -40°C up to 105°C to cover both low-temperature storage and high-heat operating conditions.
