RS PRO, 100m, Solid Coaxial, Unterminated75 Ω

View all Coaxial Cable

Subtotal (1 reel of 100 metres)*

£82.90

(exc. VAT)

£99.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£82.90£0.829

*price indicative

Coaxial-Adapters
Coaxial Adapters
Don't forget your Coaxial Adapters!
Shop Coaxial Adapters
RS Stock No.:
216-3679
Distrelec Article No.:
304-04-532
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Terminated/Unterminated

Unterminated

Coaxial Type

Solid

Outer Diameter

6.1mm

Characteristic Impedance

75 Ω

Attenuation

29dB/100m @ 400Mhz

Length

100m

Sheath Colour

Black

Fire Behaviour

Flame Retardant, Self-extinguishing

Conductor Strand Type

Solid

Capacitance

67pF/m

Shielding

Red copper braid

Standards Met

Euroclass Eca

Operating Temperature Range

-10 °C→+70 °C

Number of Strands

1

Core Strands

1 X 0.58

Minimum Operating Temperature

-10°C

Conductor Material

Bare Copper

Velocity ratio

0.66

Size of Strands

0.58 mm

Maximum Operating Temperature

+70°C

Sheath Material

PVC

Insulation Material

PE

COO (Country of Origin):
CN

RS PRO Coaxial Cables


Introducing the range of RS PRO Coaxial Cables, ideal for creating connections via aerial sockets or for extending existing cables. The 100 m, 50-ohm coaxial extension cable has unterminated ends for ultimate flexibility in cabling applications and has been designed with solid copper clad steel core. In addition to this, the cable assembly is double shielded thanks to the layer of PE and additional braiding to ensure durability and protection from damage both internally and externally. The cable has a highly durable and flexible PVC outer jacket for optimum protection and performance for signal and satellite transmission, especially when the connector points are being moved around from set up to set up. These RS PRO coaxial cables have been designed with the highest quality and versatility in mind, making it an ideal addition to any application or environment requiring coaxial cable assembly setups.

Features and Benefits:


  • This range of RS PRO coaxial cable assemblies are an ideal addition to any professional set up for tv and aerial sockets or cable extension applications

  • Designed to be multi-functional, this cable is used for ultimate versatility, suitable for attaching to an existing cable as an extension or to create a new connection

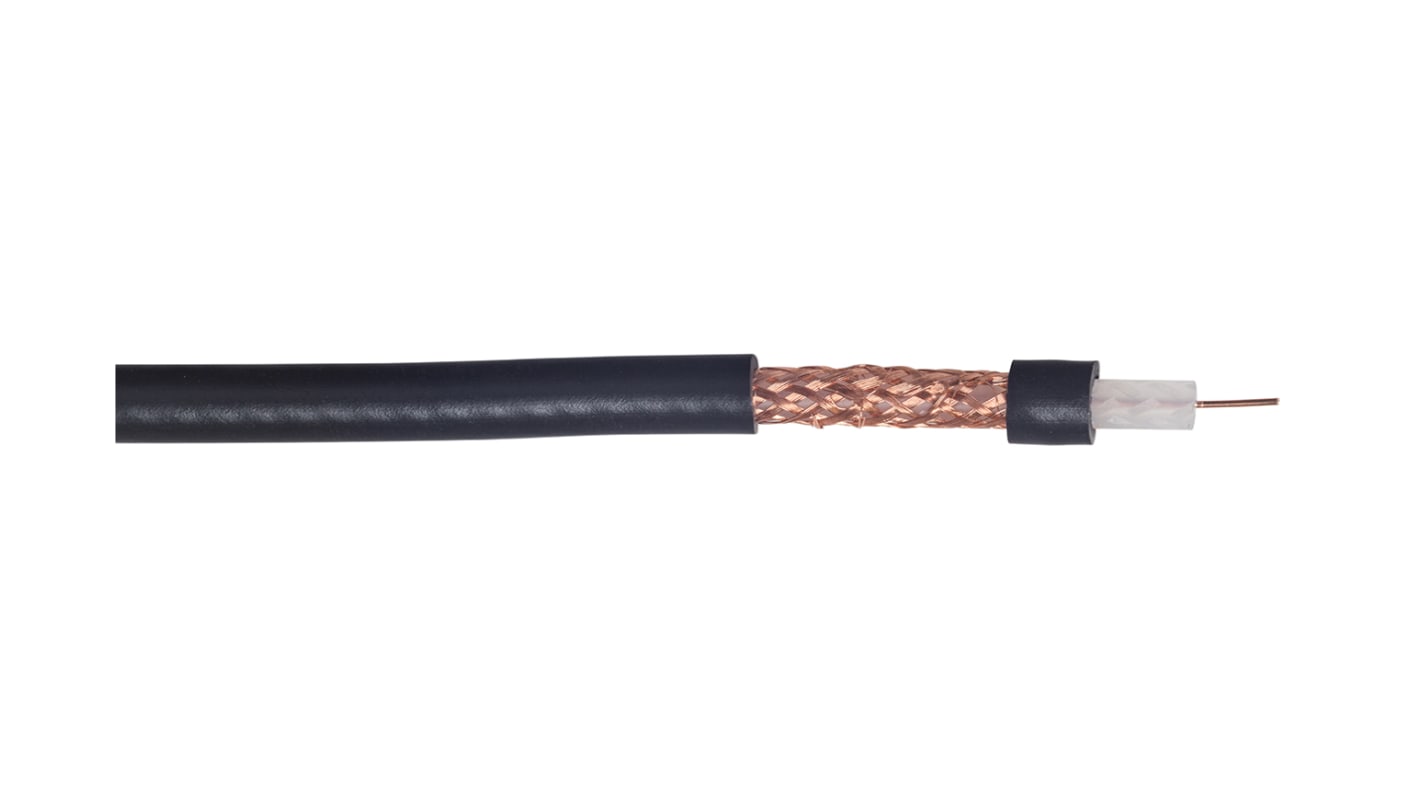

  • The cable’s inner core is a solid copper clad steel core with a Polyethylene (PE) surrounding and braiding around it, as well as PVC (Polyvinyl Chloride) outer sheath for extra durability and flexibility

  • These cables from RS PRO provide the highest quality sound and video output and offer different length audio video cable assemblies available for convenience

  • Available in 100 m reel

  • RoHS compliant

Applications:


Coaxial cables are used in a range of applications for audio, video and signal transmission, especially aerials, set-top boxes, tv and audio. These types of cables are high performance with additional features to reduce signal interference and provide high-quality output. Coaxial cable assemblies are versatile and are designed with a variety of different sheath colours and in different lengths to suit all of your requirements. These cables are most commonly used in:
  • TV Aerials and Antennas

  • Satellite TV Boxes

  • Radios

  • Receivers

  • Wi-Fi Routers

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
