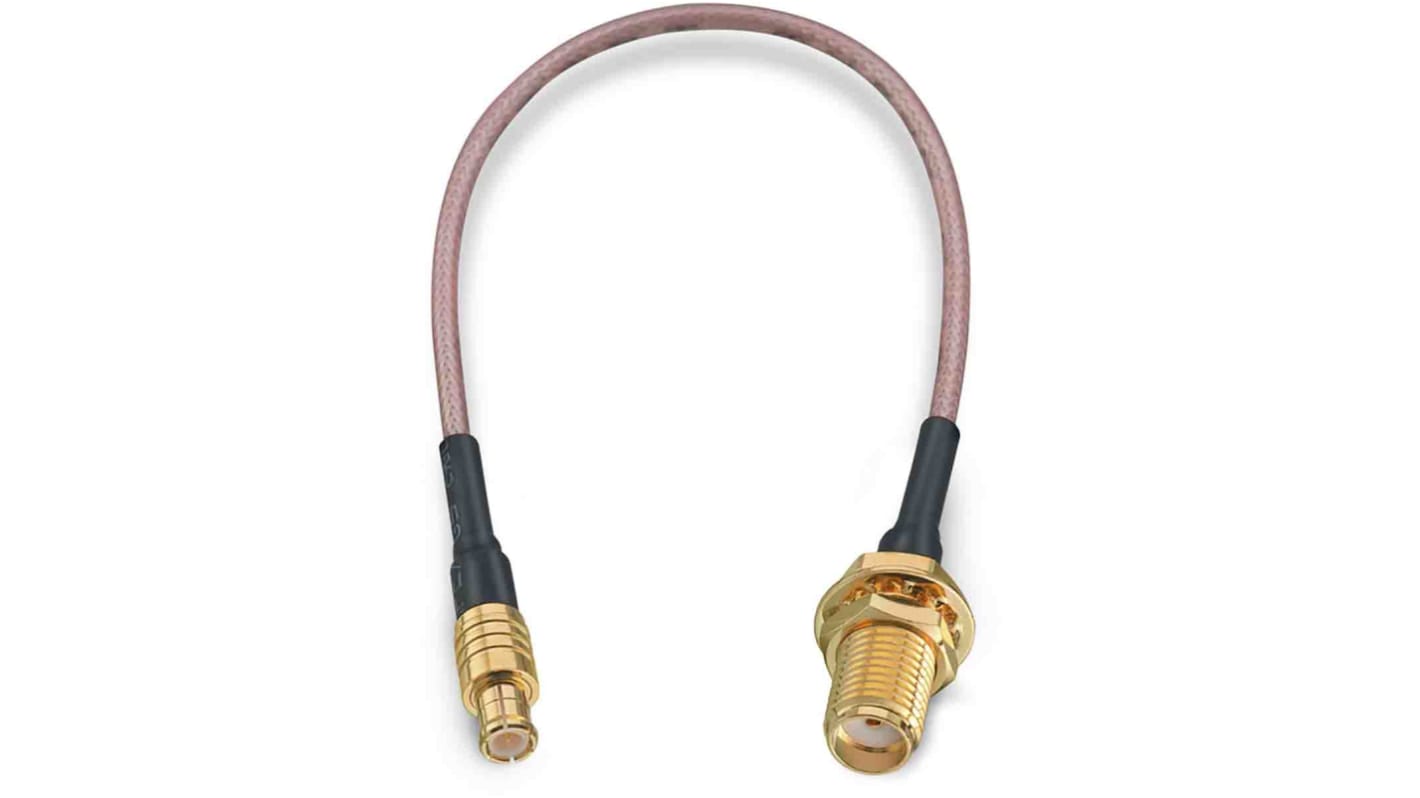

Wurth Elektronik Female SMA to Male MCX, 152.4mm, RG178 Coaxial, Terminated50 Ω
- RS Stock No.:
- 194-5988
- Mfr. Part No.:
- 65503206515304
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 10 units)*
£202.29
(exc. VAT)
£242.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 70 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 40 | £20.229 | £202.29 |
| 50 - 90 | £18.388 | £183.88 |
| 100 + | £16.851 | £168.51 |
*price indicative
- RS Stock No.:
- 194-5988
- Mfr. Part No.:
- 65503206515304
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Terminated/Unterminated | Terminated | |
| Connector 1 | SMA | |
| Coaxial Type | RG178 | |
| Connector 2 | MCX | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Male | |
| Connector 2 Orientation | Straight | |
| Outer Diameter | 1.8mm | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 0.83 dB | |
| Length | 152.4mm | |
| Maximum Operating Temperature | +155°C | |
| Minimum Operating Temperature | -55°C | |
| Conductor Material | Beryllium Copper | |
| Insulation Material | PTFE | |
| Shielding | Braid | |
| Operating Temperature Range | -55 → +155 °C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Terminated/Unterminated Terminated | ||
Connector 1 SMA | ||
Coaxial Type RG178 | ||
Connector 2 MCX | ||
Connector 1 Gender Female | ||
Connector 2 Gender Male | ||
Connector 2 Orientation Straight | ||
Outer Diameter 1.8mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 0.83 dB | ||
Length 152.4mm | ||
Maximum Operating Temperature +155°C | ||
Minimum Operating Temperature -55°C | ||
Conductor Material Beryllium Copper | ||
Insulation Material PTFE | ||
Shielding Braid | ||
Operating Temperature Range -55 → +155 °C | ||
- COO (Country of Origin):
- TW
SMA Bulkhead Jack to MCX Straight Plug, Flexible Cable RG-178/U, WR-CXASY
Flexible Cable RG-178/U with a straight SMA Jack to a straight MCX Plug. Frequenzy is up to 3 GHz with an Impedance of 50 Ω and an Insertion Loss of 0.83 dB max.. The Cable length is 152.4 mm with a minimum Bend Radius of 10.2 mm and a Nominal Outer Cable Diameter of 1.8 mm.
Flexible Cable RG-178/U with a straight SMA Jack to a straight MCX Plug. Frequenzy is up to 3 GHz with an Impedance of 50 Ω and an Insertion Loss of 0.83 dB max.. The Cable length is 152.4 mm with a minimum Bend Radius of 10.2 mm and a Nominal Outer Cable Diameter of 1.8 mm.
