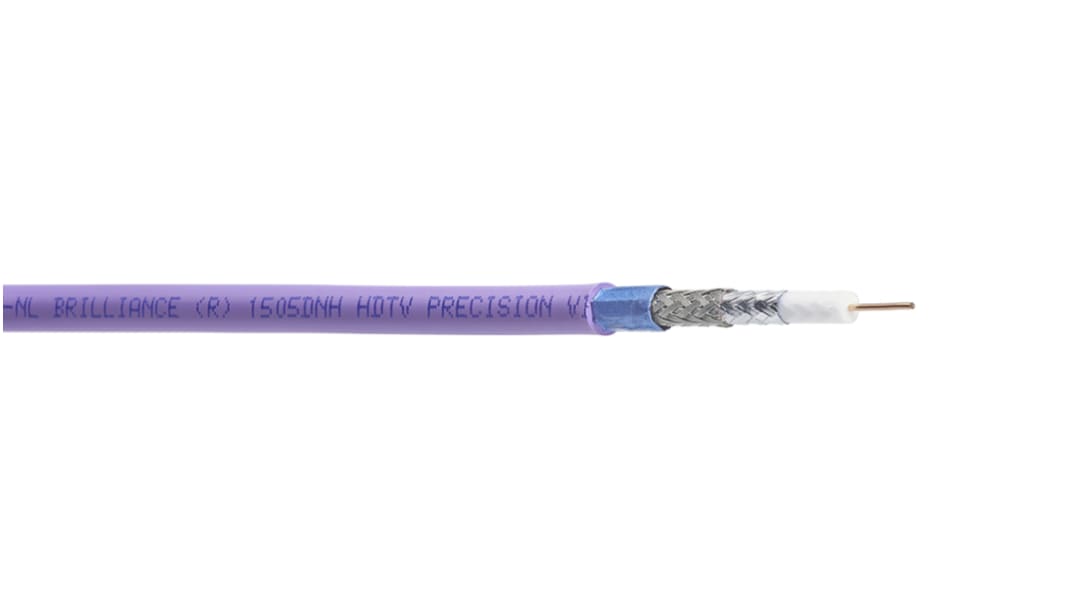

Belden 1505DNH Series, 500 m, RG59/U Coaxial SDI Coaxial Cable 75 Ω, Purple, Unterminated
- RS Stock No.:
- 187-6108
- Mfr. Part No.:
- 1505DNH.00500
- Brand:
- Belden
Subtotal (1 reel of 500 metres)*
£2,048.00
(exc. VAT)
£2,457.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £4.096 | £2,048.00 |
*price indicative
- RS Stock No.:
- 187-6108
- Mfr. Part No.:
- 1505DNH.00500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | SDI Coaxial Cable | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG59/U | |
| American Wire Gauge | 20AWG | |
| Outside Diameter | 5.92mm | |
| Characteristic Impedance | 75Ω | |
| Attenuation | 3 dB | |
| Conductor Type | Solid | |
| Minimum Operating Temperature | -30°C | |
| Cable Length | 500m | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | Euroclass Dca | |
| Jacket Colour | Purple | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant | |
| Jacket Material | Fluorinated Ethylene Propylene | |
| Conductor Material | Bare Copper | |
| Series | 1505DNH | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type SDI Coaxial Cable | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG59/U | ||
American Wire Gauge 20AWG | ||
Outside Diameter 5.92mm | ||
Characteristic Impedance 75Ω | ||
Attenuation 3 dB | ||
Conductor Type Solid | ||
Minimum Operating Temperature -30°C | ||
Cable Length 500m | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals Euroclass Dca | ||
Jacket Colour Purple | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH), Flame Retardant | ||
Jacket Material Fluorinated Ethylene Propylene | ||
Conductor Material Bare Copper | ||
Series 1505DNH | ||
Applications
Low loss HDTV/SDI Digital coax used in Analogue and digital video circuits and high quality applications. The outer conductor is designed for high screening attenuation and low transfer impedance. The cable is suitable for indoor and outdoor use.
