Wurth Elektronik Male SMA to Male SMA, 304.8mm, RG58 Coaxial, Terminated50 Ω
- RS Stock No.:
- 181-0095
- Distrelec Article No.:
- 301-54-572
- Mfr. Part No.:
- 65503503530501
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£14.79
(exc. VAT)
£17.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 85 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £14.79 |
| 10 - 49 | £13.64 |
| 50 - 99 | £12.62 |
| 100 - 499 | £11.77 |
| 500 + | £11.02 |
*price indicative
- RS Stock No.:
- 181-0095
- Distrelec Article No.:
- 301-54-572
- Mfr. Part No.:
- 65503503530501
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Connector 1 | SMA | |
| Terminated/Unterminated | Terminated | |
| Connector 2 | SMA | |
| Coaxial Type | RG58 | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Male | |
| Outer Diameter | 4.95mm | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 0.3 dB | |
| Length | 304.8mm | |
| Sheath Colour | White | |
| Voltage Rating | 335 V ac | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Conductor Material | Brass | |
| Insulation Material | PTFE | |
| Shielding | Braid | |
| Operating Temperature Range | -20 → +80 °C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Connector 1 SMA | ||
Terminated/Unterminated Terminated | ||
Connector 2 SMA | ||
Coaxial Type RG58 | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Outer Diameter 4.95mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 0.3 dB | ||
Length 304.8mm | ||
Sheath Colour White | ||
Voltage Rating 335 V ac | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Conductor Material Brass | ||
Insulation Material PTFE | ||
Shielding Braid | ||
Operating Temperature Range -20 → +80 °C | ||
- COO (Country of Origin):
- TW

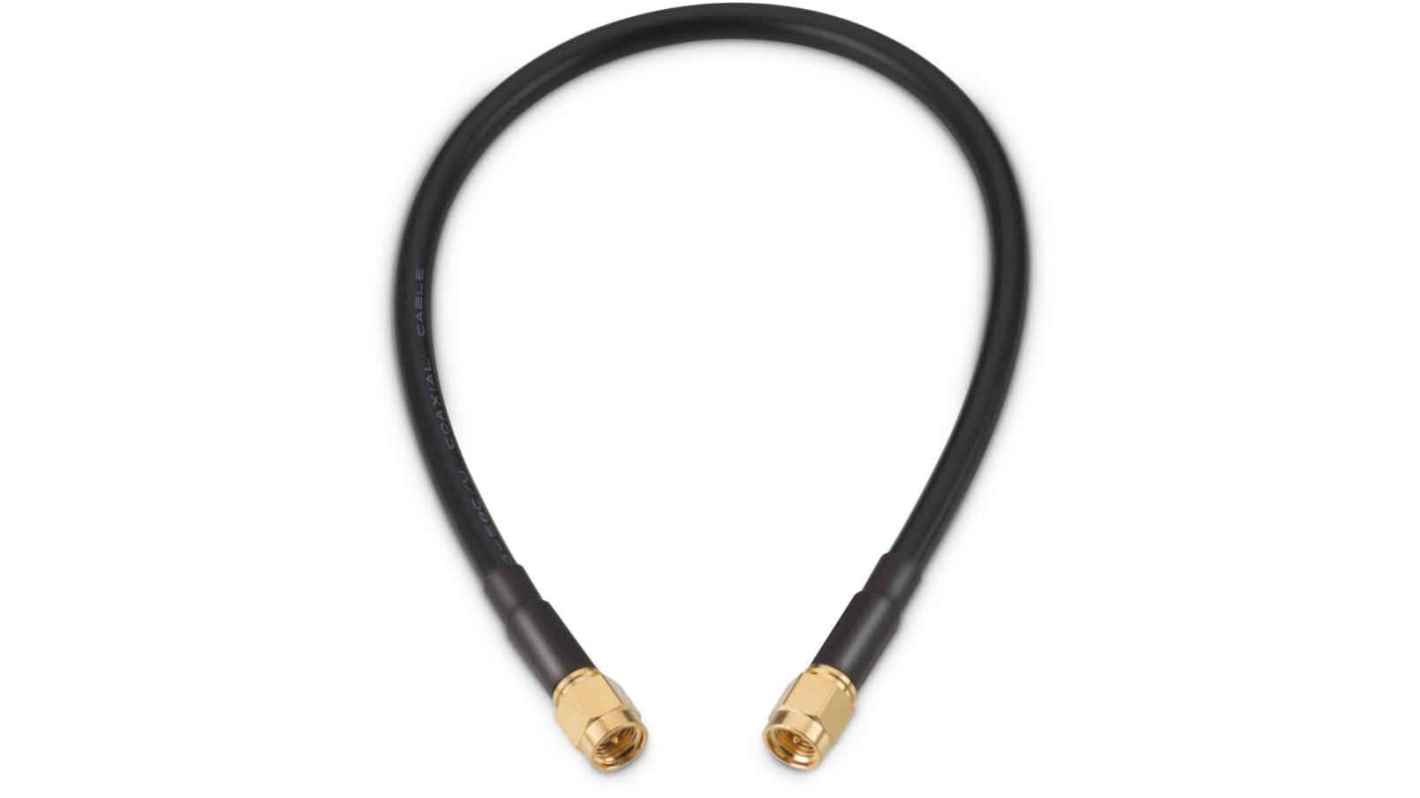

The Wurth Elektronic WR-CXASY is a straight SMA plug to straight SMA Plug, RG-58 C/U flexible cable having a braid cable shielding and a length of 304.8 mm. It has a brass body material.
RoHS compliant
Operating temperature ranges between -20°C upto +80°C
500 mating cycles
Minimum bend radius : 49.5 mm
Operating temperature ranges between -20°C upto +80°C
500 mating cycles
Minimum bend radius : 49.5 mm
