Wurth Elektronik Male SMA to Male SMA, 304.8mm, RG316 Coaxial, Terminated50 Ω
- RS Stock No.:
- 180-9962
- Mfr. Part No.:
- 65503503530505
- Brand:
- Wurth Elektronik
Subtotal (1 bag of 10 units)*
£153.14
(exc. VAT)
£183.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 40 unit(s) shipping from 03 November 2025
- Plus 90 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 + | £15.314 | £153.14 |
*price indicative
- RS Stock No.:
- 180-9962
- Mfr. Part No.:
- 65503503530505
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Connector 1 | SMA | |
| Terminated/Unterminated | Terminated | |
| Connector 2 | SMA | |
| Coaxial Type | RG316 | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Male | |
| Outer Diameter | 2.49mm | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 1.2 dB | |
| Length | 304.8mm | |
| Sheath Colour | White | |
| Voltage Rating | 250 V ac | |
| Maximum Operating Temperature | +165°C | |
| Minimum Operating Temperature | -55°C | |
| Insulation Material | PTFE | |
| Operating Temperature Range | -55 → +165 °C | |
| Conductor Material | Brass | |
| Shielding | Braid | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Connector 1 SMA | ||
Terminated/Unterminated Terminated | ||
Connector 2 SMA | ||
Coaxial Type RG316 | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Outer Diameter 2.49mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 1.2 dB | ||
Length 304.8mm | ||
Sheath Colour White | ||
Voltage Rating 250 V ac | ||
Maximum Operating Temperature +165°C | ||
Minimum Operating Temperature -55°C | ||
Insulation Material PTFE | ||
Operating Temperature Range -55 → +165 °C | ||
Conductor Material Brass | ||
Shielding Braid | ||
- COO (Country of Origin):
- TW

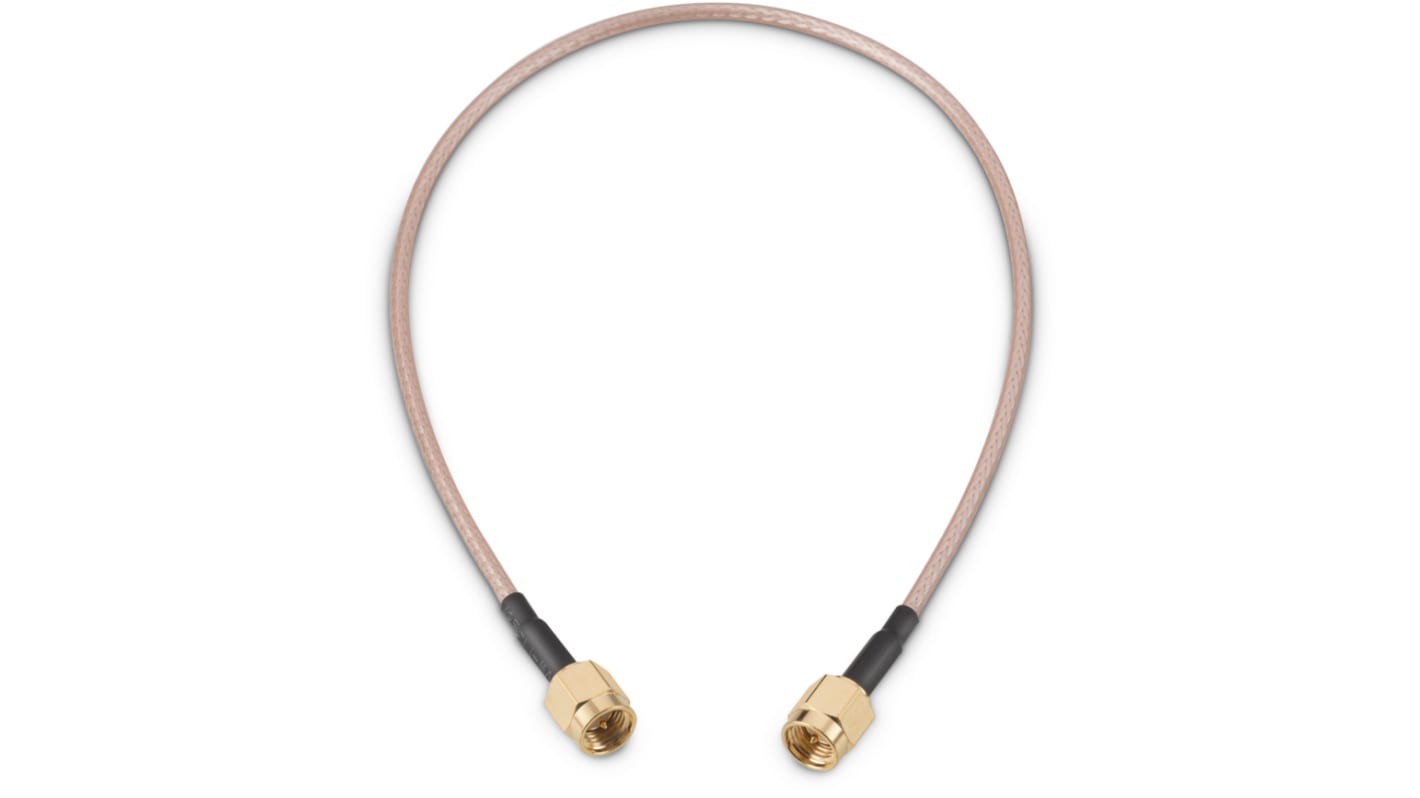

The Wurth Elektronic WR-CXASY is a straight SMA plug to straight SMA plug, RG-316/U flexible cable having a braid cable shielding and a length of 304.8 mm. It has a brass body material.
RoHS compliant
Operating temperature ranges between -55°C upto +165°C
500 mating cycle
Minimum bend radius : 12.7 mm
Operating temperature ranges between -55°C upto +165°C
500 mating cycle
Minimum bend radius : 12.7 mm
