RS PRO Straight 50Ω Coax Adapter TNC Socket to TNC Socket 11GHz
- RS Stock No.:
- 793-3629
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£22.39
(exc. VAT)
£26.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 243 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £22.39 |
| 15 - 49 | £20.80 |
| 50 + | £19.93 |
*price indicative
- RS Stock No.:
- 793-3629
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | TNC Socket to TNC Socket | |
| Adapter Type A | TNC | |
| Adapter Type B | TNC | |
| Gender A | Female | |
| Gender B | Female | |
| Impedance | 50Ω | |
| Body Orientation | Straight | |
| Operating Frequency | 11GHz | |
| Contact Plating | Gold | |
| Length | 39.5±0.3mm | |
| Body Plating | Nickel | |
| Contact Material | Brass | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type TNC Socket to TNC Socket | ||
Adapter Type A TNC | ||
Adapter Type B TNC | ||
Gender A Female | ||
Gender B Female | ||
Impedance 50Ω | ||
Body Orientation Straight | ||
Operating Frequency 11GHz | ||
Contact Plating Gold | ||
Length 39.5±0.3mm | ||
Body Plating Nickel | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TW
RS PRO Straight 50 Ω Coax Adapter TNC Socket to TNC Socket 11 GHz

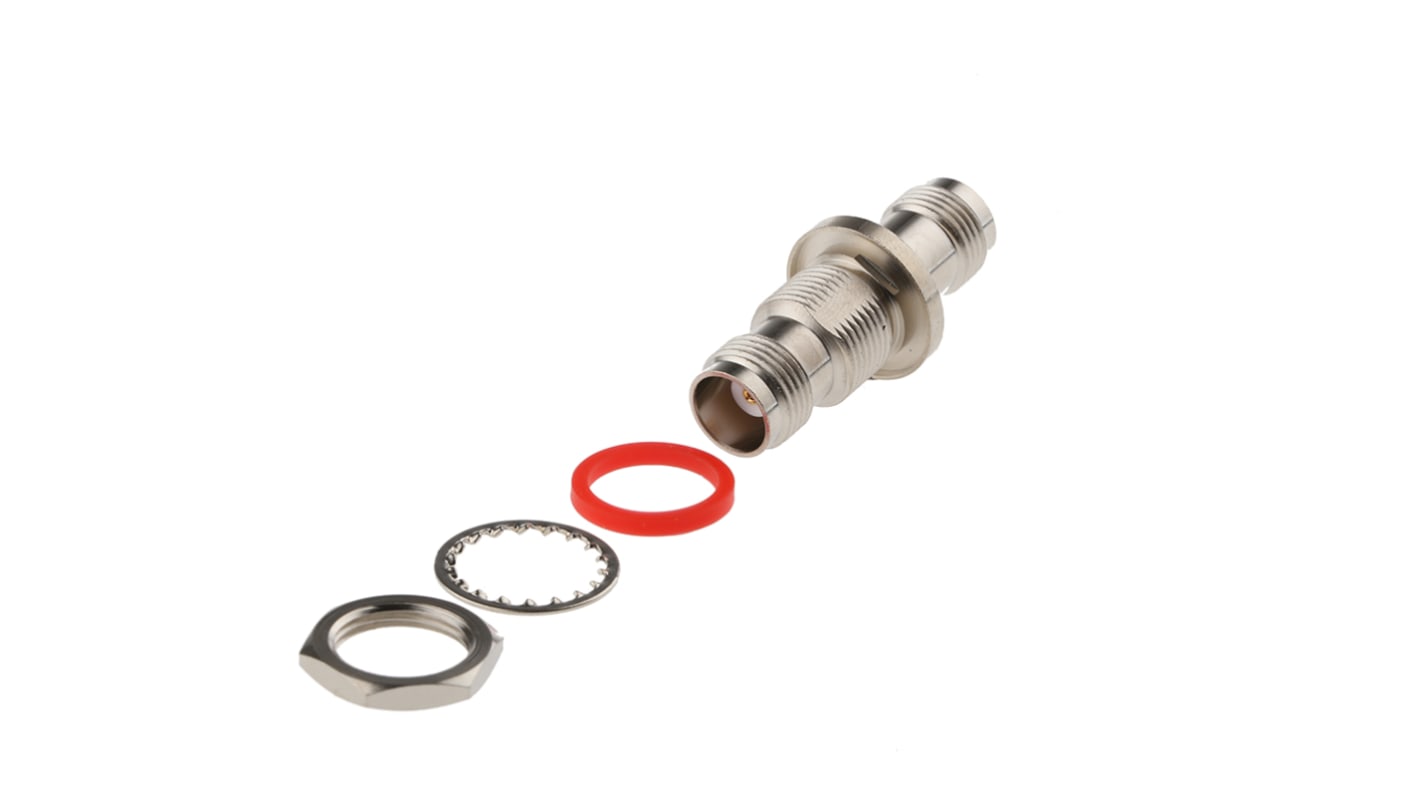

This coax bulkhead connector from RS PRO is suitable for effectively passing a signal through a panel. The 50 Ω TNC socket connectors on either side allow the coaxial cables to be simply plugged in without needing any tools or crimping, while the supplied silicone O-ring and nut allow an IP68 (Ingress Protection) waterproof connection to be established through the panel. The connector has a flat side, allowing a non-circular hole to be made, to prevent the device from rotating in the hole.
This connector is suitable for radio frequency signals and microwave signals up to 11 GHz and would typically be used for radio communications equipment such as Wi-Fi networks or high-frequency voice transmission. Fitting this connector is as simple as drilling a hole, fitting the O-ring, passing the connector through, fitting the crush washer and then tightening the nut.
This connector is suitable for radio frequency signals and microwave signals up to 11 GHz and would typically be used for radio communications equipment such as Wi-Fi networks or high-frequency voice transmission. Fitting this connector is as simple as drilling a hole, fitting the O-ring, passing the connector through, fitting the crush washer and then tightening the nut.
Features and Benefits
• TNC-socket-to-TNC-socket adapter type
• Type A is a female TNC adapter
• Type B is a female TNC adapter
• Straight body orientation
• Nickel body plating
• Brass contact material
• Gold contact plating
• Impedance of 50 Ω
• Length of 39.5 mm ± 0.3 mm
• Operating frequency of 11 GHz
• Type A is a female TNC adapter
• Type B is a female TNC adapter
• Straight body orientation
• Nickel body plating
• Brass contact material
• Gold contact plating
• Impedance of 50 Ω
• Length of 39.5 mm ± 0.3 mm
• Operating frequency of 11 GHz
