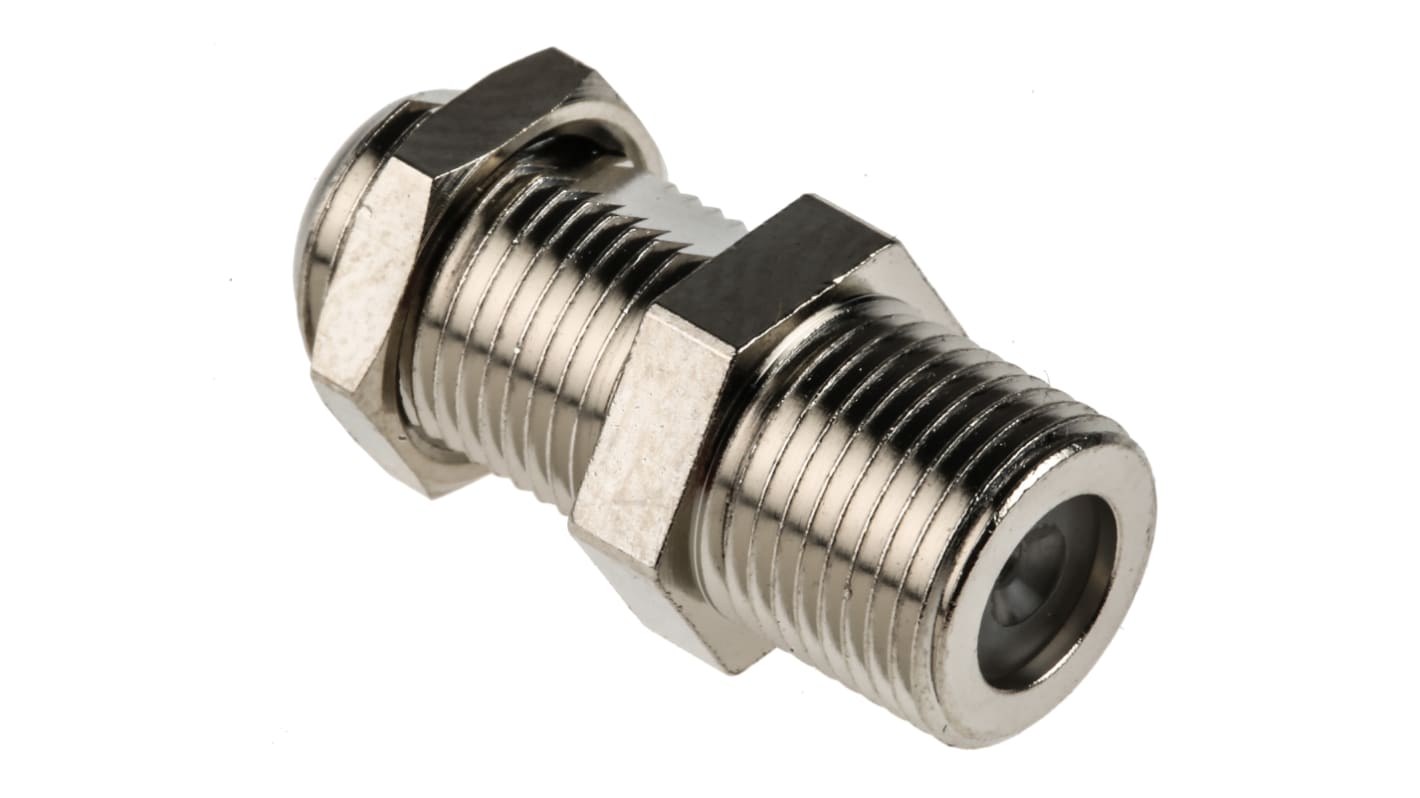

Straight 75Ω RF Adapter Type F Socket to Type F Socket 1GHz

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS PRO coaxial adapters

From RS PRO comes a range high quality and great value f series coaxial adapters, these coaxial type adapters have been designed to provide a effective method of connecting coaxial cable assemblies through a panel mounting connection.
Manufactured out of industry standard components, these connectors are most commonly used for connecting radio and television broadcast equipment.

Features and benefits

  • Impedance of 50 ohms

  • Operating frequency of 1 GHz

  • Straight shaped body

  • Nickel body

  • Copper Alloy contact material

  • UHF Plug to BNC Socket

Applications

Coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;

  • Test and measurement

  • Communication systems

  • GPS equipment

  • Antennas

  • Wi-fi equipment

  • Aerospace

  • Broadcast

  • Audio and video

What is impedance?

Impedance is an electric current’s opposition being measured when the voltage has been applied.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Note

Cable centre acts as pin.

Adaptors

Approvals

-

RS 'F' Series

Nickel plated brass bodies with Delrin insulation
Frequency range dc to 1GHz

Plugs

In screw-on and crimp versions
Screw-on type have an internal thread which bites into braid

Sockets

Available in front and rear mounting
Supplied with locking nut and washer

Adaptors

Available in 'F' to 'F' and 'F' to BNC

Specifications
Attribute Value
Adapter Type F Socket to F Socket
Adapter Type A Type F
Adapter Type B Type F
Gender A Female
Gender B Female
Impedance 75Ω
Body Orientation Straight
Operating Frequency 1GHz
Length 23.5±0.3mm
Body Plating Nickel
Contact Material Copper Alloy
4755 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.998
(exc. VAT)
£ 1.198
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£0.998
£4.99
125 - 495
£0.946
£4.73
500 - 1245
£0.87
£4.35
1250 - 2495
£0.812
£4.06
2500 +
£0.774
£3.87
*price indicative
