Save 4% when you buy 10 units
Subtotal (1 unit)*
£6.85
(exc. VAT)
£8.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 135 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.85 |
10 + | £6.53 |
*price indicative
- RS Stock No.:
- 282-6938
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | SMB Jack to SMB Jack | |
Adapter Type A | SMB | |
Adapter Type B | SMB | |
Gender A | Jack | |
Gender B | Jack | |
Impedance | 50Ω | |
Body Orientation | Straight | |
Polarity | Normal | |
Operating Frequency | 4GHz | |
Contact Plating | Gold | |
Length | 17.6mm | |
Body Plating | Gold | |
Contact Material | Phosphor Bronze | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type SMB Jack to SMB Jack | ||
Adapter Type A SMB | ||
Adapter Type B SMB | ||
Gender A Jack | ||
Gender B Jack | ||
Impedance 50Ω | ||
Body Orientation Straight | ||
Polarity Normal | ||
Operating Frequency 4GHz | ||
Contact Plating Gold | ||
Length 17.6mm | ||
Body Plating Gold | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- TW

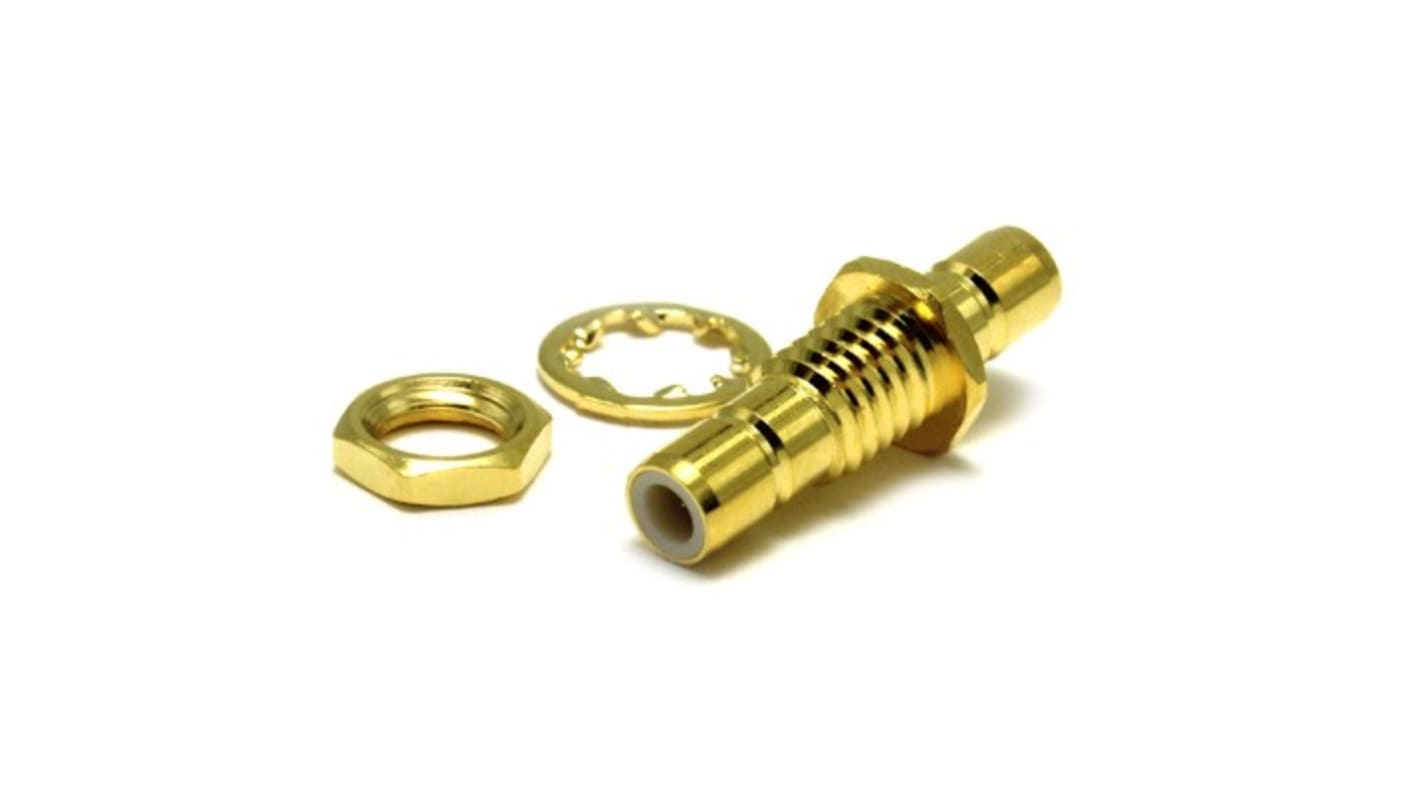

RS PRO 4GHz SMB Bulkhead Jack to Jack Coaxial Adaptor (50 Ω)
A SMB Bulkhead jack to jack coax adaptor providing a simple and permanent connection for SMB plugs through bulkheads and panels.
The SMB coax adaptor or Sub-miniature B adaptor features a snap in coupling and is supplied with a retaining clip and nut for secure connection and vibration protection.
Constructed with a tough Gold plated Brass body for strength along with excellent wear and corrosion resistance and Gold plated Phosphor Bronze contacts providing a strong and stable signal transmission.
The SMB adaptor benefits from a wide operating temperature of -55 to +155°C making it suitable for use in an extensive range of environments and equipment.
Features and Benefits
4GHz SMB Bulkhead adapter
Jack to jack
50 Ω impedance
PTFE insulation
IP40 rated
Wide temperature range of -55 to +155°C
17.6 x 6.35mm in length
6.35g in weight
Standards and Approvals: IEC 61169-8
