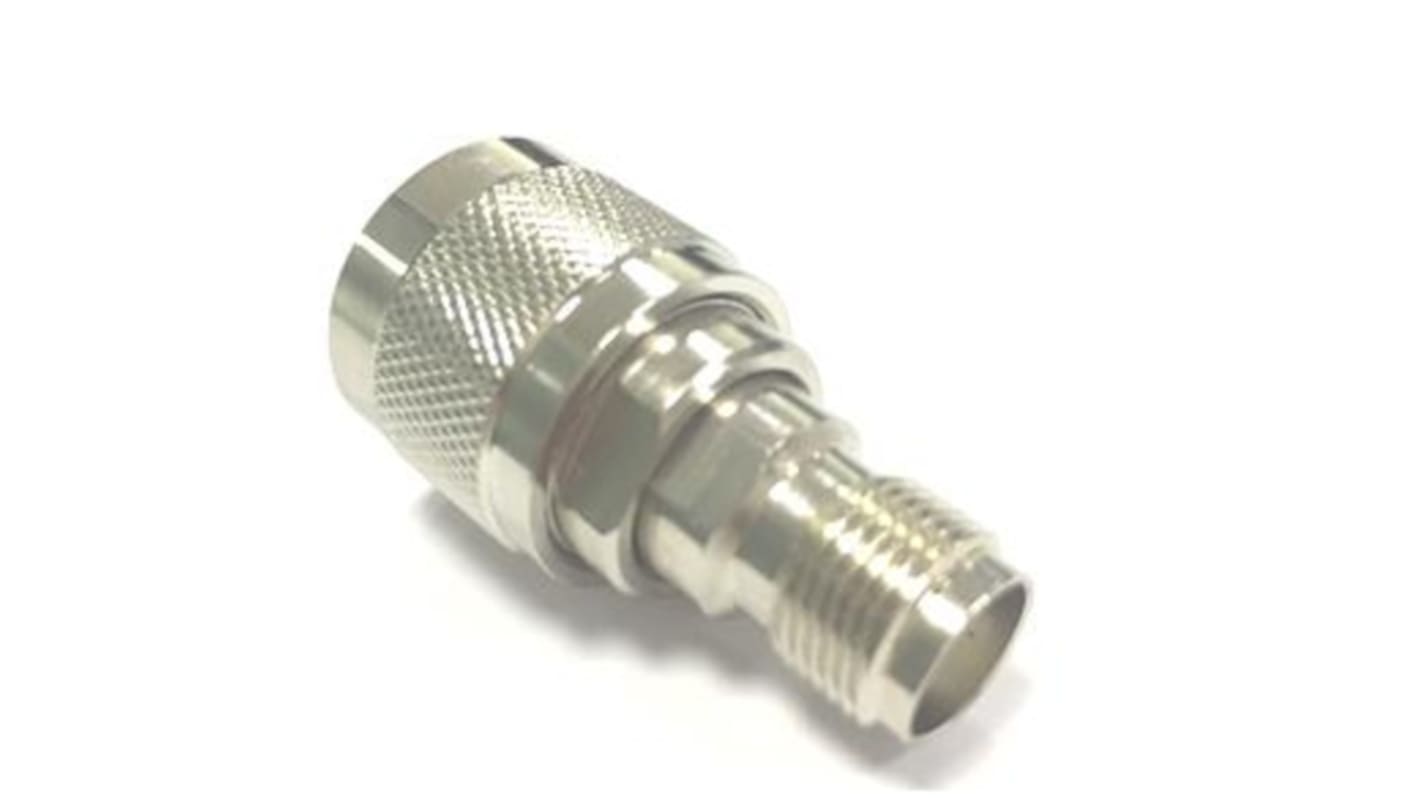

RS PRO Straight 50Ω Coaxial Adapter Type N Plug to TNC Socket 11GHz
- RS Stock No.:
- 217-7795
- Distrelec Article No.:
- 304-02-940
- Brand:
- RS PRO
Subtotal (1 unit)*
£10.49
(exc. VAT)
£12.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 426 unit(s) ready to ship
- Plus 51 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £10.49 |
*price indicative
- RS Stock No.:
- 217-7795
- Distrelec Article No.:
- 304-02-940
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | N Plug to TNC Socket | |
Adapter Type A | Type N | |
Adapter Type B | TNC | |
Gender A | Male | |
Gender B | Female | |
Impedance | 50Ω | |
Body Orientation | Straight | |
Operating Frequency | 11GHz | |
Contact Plating | Nickel | |
Body Plating | Nickel | |
Cable Type | Coaxial | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type N Plug to TNC Socket | ||
Adapter Type A Type N | ||
Adapter Type B TNC | ||
Gender A Male | ||
Gender B Female | ||
Impedance 50Ω | ||
Body Orientation Straight | ||
Operating Frequency 11GHz | ||
Contact Plating Nickel | ||
Body Plating Nickel | ||
Cable Type Coaxial | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
RS PRO Coaxial Adapter – N-Type Male to TNC Female Socket
From the trusted RS PRO brand, a useful coaxial adapter that provides transitions between coaxial connectors. The adapter is made from high-quality materials designed to provide an efficient means of connecting coaxial cable assemblies through panel-mount connections. Upon inspection, the RF adapter has a threaded male N-type connector at one end and at the other end, a female TNC twist connection socket that ensures quick connection and disengagement without risk of damage to coaxial cables.
Why would need this coaxial adapter?
There are many types of coaxial cables terminated with various types of end connectors. Coaxial adapters are the ideal solution to adapt cable assemblies to the required connection. This RF coaxial adapter is a high-quality component designed to mate with female and male coaxial cable assemblies with the appropriate end connector. The adapter features a rugged nickel-plated body, gold-plated centre pin contact, and insulation for excellent electrical conductivity.
Features and Benefits
- Adapter: N-Type male to TNC female
- Body Plating Nickel
- Contact Material: Brass
- Contact Plating: Nickel
- Insulation
Electrical Specification
- Temperature Range: -65°C ∼+165°C
- Characteristic Impedance: 50Ω
- Frequency Range: 0∼11GHz
- Working Voltage: 1000V
- Insulation Resistance: ≥1000MΩ
- Medium Pressure: 1000V(rms)
- VSWR: ≤1.3
- Working Life 500 Cycles
Things to consider!
High-quality RF and video signals are only as good as the components and materials used to carry the signals. RS PRO offers an extensive range of high-quality industry-standard coaxial cables and adapters that compliments all your coaxial installation needs. Browse our offer using the improved filters to find your ideal solution.
Applications
- Audio
- Communications & Networking
- RF Communications
- Video & Vision
- Datacom
- Telecom
