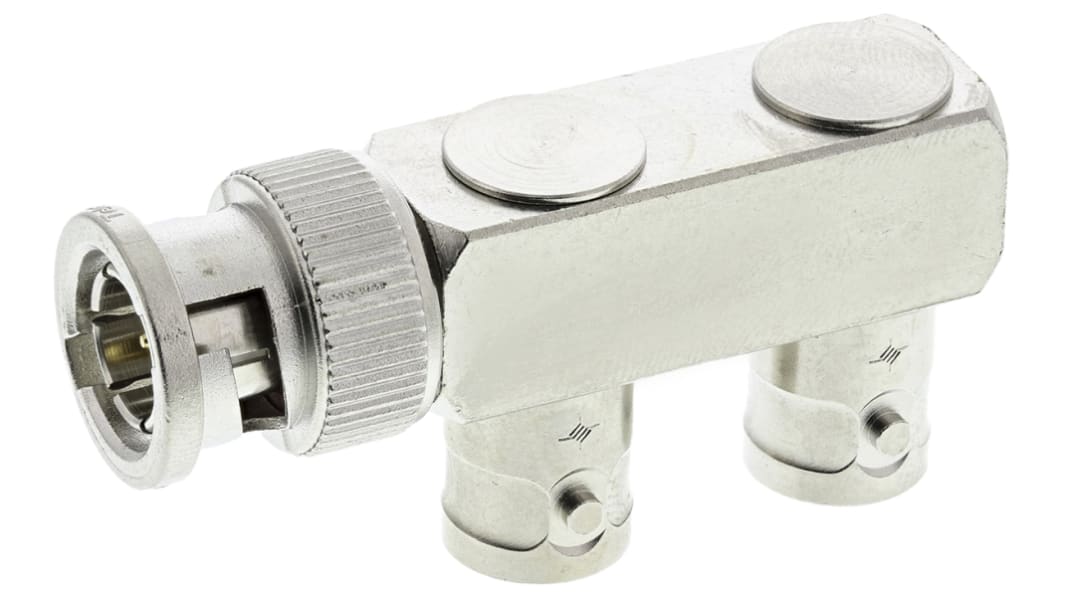

Telegartner T 75 Ω RF Adapter 4GHz Female Female
- RS Stock No.:
- 112-0830
- Mfr. Part No.:
- J01005A0003
- Brand:
- Telegartner
Bulk discount available
Subtotal (1 unit)*
£27.10
(exc. VAT)
£32.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 36 unit(s) shipping from 27 April 2026
- Plus 5 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £27.10 |
| 15 - 49 | £26.12 |
| 50 - 99 | £24.20 |
| 100 - 249 | £23.25 |
| 250 + | £20.51 |
*price indicative
- RS Stock No.:
- 112-0830
- Mfr. Part No.:
- J01005A0003
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telegartner | |
| Adapter Type | BNC T Adapter | |
| Product Type | RF Adapter | |
| Converts From Type | BNC | |
| Converts to Type | BNC | |
| Impedance | 75Ω | |
| Mount Type | Cable | |
| Orientation | T | |
| Polarity | Normal | |
| Operating Frequency | 4GHz | |
| Contact Plating | Gold | |
| Body Plating | Copper Zinc Alloy | |
| Converts From Gender - Contact | Male | |
| Converts to Gender - Connector | Female | |
| Coupling Style | Bayonet | |
| Converts From Gender - Connector | Female | |
| Converts to Gender - Contact | Female | |
| Cable Type | Coaxial | |
| Length | 47.1mm | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Telegartner | ||
Adapter Type BNC T Adapter | ||
Product Type RF Adapter | ||
Converts From Type BNC | ||
Converts to Type BNC | ||
Impedance 75Ω | ||
Mount Type Cable | ||
Orientation T | ||
Polarity Normal | ||
Operating Frequency 4GHz | ||
Contact Plating Gold | ||
Body Plating Copper Zinc Alloy | ||
Converts From Gender - Contact Male | ||
Converts to Gender - Connector Female | ||
Coupling Style Bayonet | ||
Converts From Gender - Connector Female | ||
Converts to Gender - Contact Female | ||
Cable Type Coaxial | ||
Length 47.1mm | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
- COO (Country of Origin):
- DE
Telegartner 50 Ω and 75 Ω BNC T-Piece Adapters
From Telegartner, a range of 50 Ω and 75 Ω Tee adapters. The plug to 2 x socket and socket to 2 x socket adapters have gold plated beryllium copper contacts and a PTFE insulator. Featuring a simple bayonet coupling mechanism the adapters can be used up to 4 GHz. Requiring only a quarter turn to connect and disconnect this connection method makes the BNC adapters one of the most commonly used RF adapters around.
Features and Benefits
• Bayonet coupling
• Up to 4 GHz
Applications
• Signal
• Data
• Video transmission
BNC series in accordance with IEC 169-8
This HF plug connector is the most commonly used coaxial connection. It features a compact design and a bayonet cap, and is user-friendly and moisture-proof. Spring-mounted CuBe2 contact parts, gold-plated internal conductors and PTFE insulated parts with CuZn39Pb3 nickel-plated housing parts. The product always comes complete with assembly instructions.
