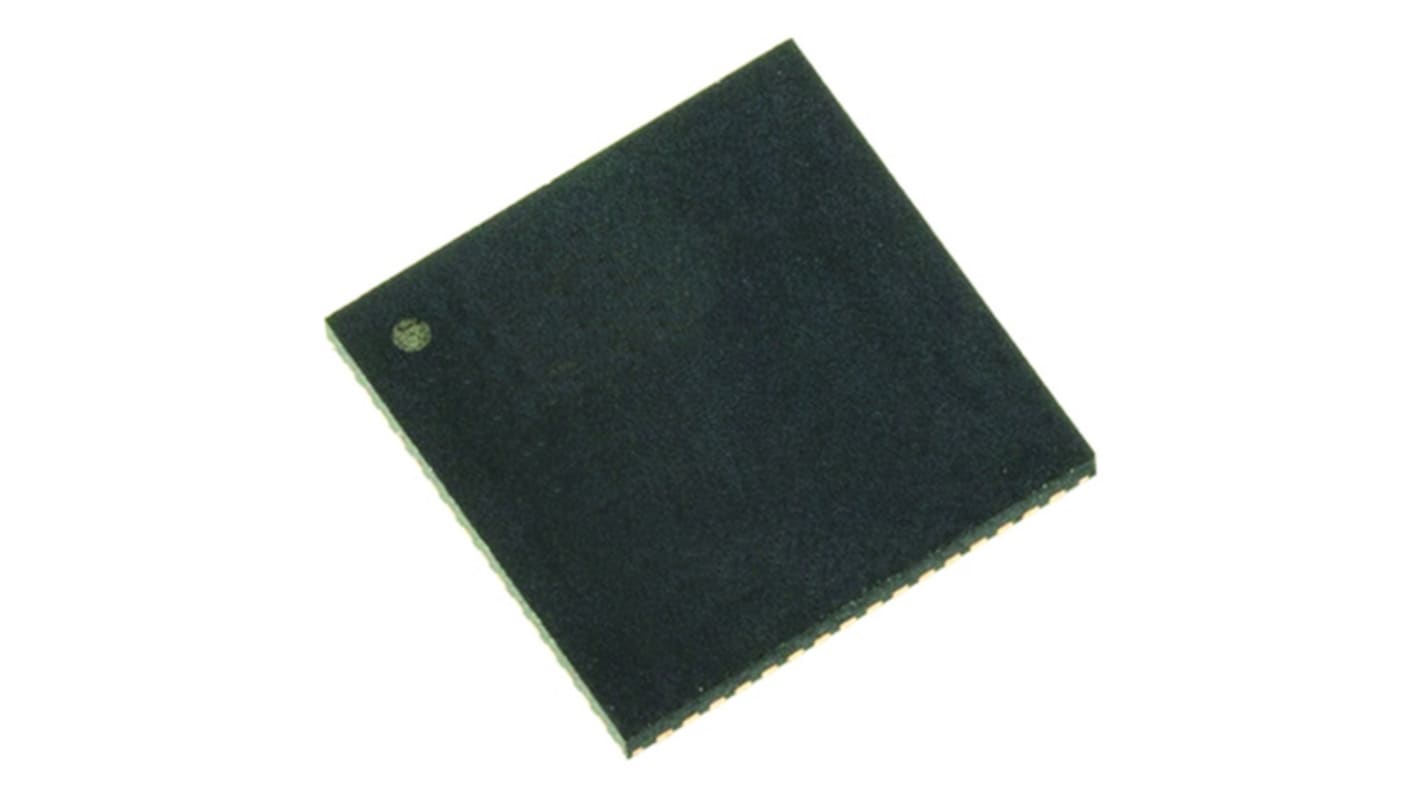

Si5347A-A-GM, Frequency Multiplier 4, 0.0001 → 712.5 MHz, 64-Pin QFN

View all Clock Synthesizers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
880-6979
Mfr. Part No.:
Si5347A-A-GM
Brand:
Silicon Labs
Find similar products by selecting one or more attributes.
Select all

Brand

Silicon Labs

Maximum Output Frequency

712.5MHz

Mounting Type

Surface Mount

Number of Elements per Chip

4

Package Type

QFN

Minimum Output Frequency

0.0001MHz

Pin Count

64

Maximum Supply Current

240 mA

Dimensions

9 x 9 x 0.85mm

Maximum Input Frequency

750MHz

Height

0.85mm

Length

9mm

Maximum Operating Supply Voltage

3.47 V

Maximum Operating Temperature

+85 °C

Minimum Operating Supply Voltage

3.14 V

Minimum Operating Temperature

-40 °C

Width

9mm

COO (Country of Origin):
US

Si5346 Si5347 Dual/Quad DSPLL Clock Multipliers


These jitter attenuating clock multipliers combine either two or four DSPLL and provide access to any of the four inputs and provide low jitter clocks on any of the outputs.
The Silicon Labs Si5346 has two DSPLL and housed in a 44-Pin QFN package (7x7mm)
The Silicon Labs Si5347 has four DSPLL and housed in a 64-Pin QFN package (9x9mm)

- Each DSPLL generates any output frequency from any input frequency.
- Input frequency range:
- Differential: 8 kHz to 750MHz
- LVCMOS: 8 kHz to 250MHz
- Output frequency range:
- Differential: up to 712.5MHz
- LVCMOS: up to 250MHz
- Ultra low jitter - less than 100 fs typical (12kHz-20MHz)
- Configurable outputs compatible with LVDS, LVPECL, LVCMOS, CML and HCSL with programmable signal amplitude.
