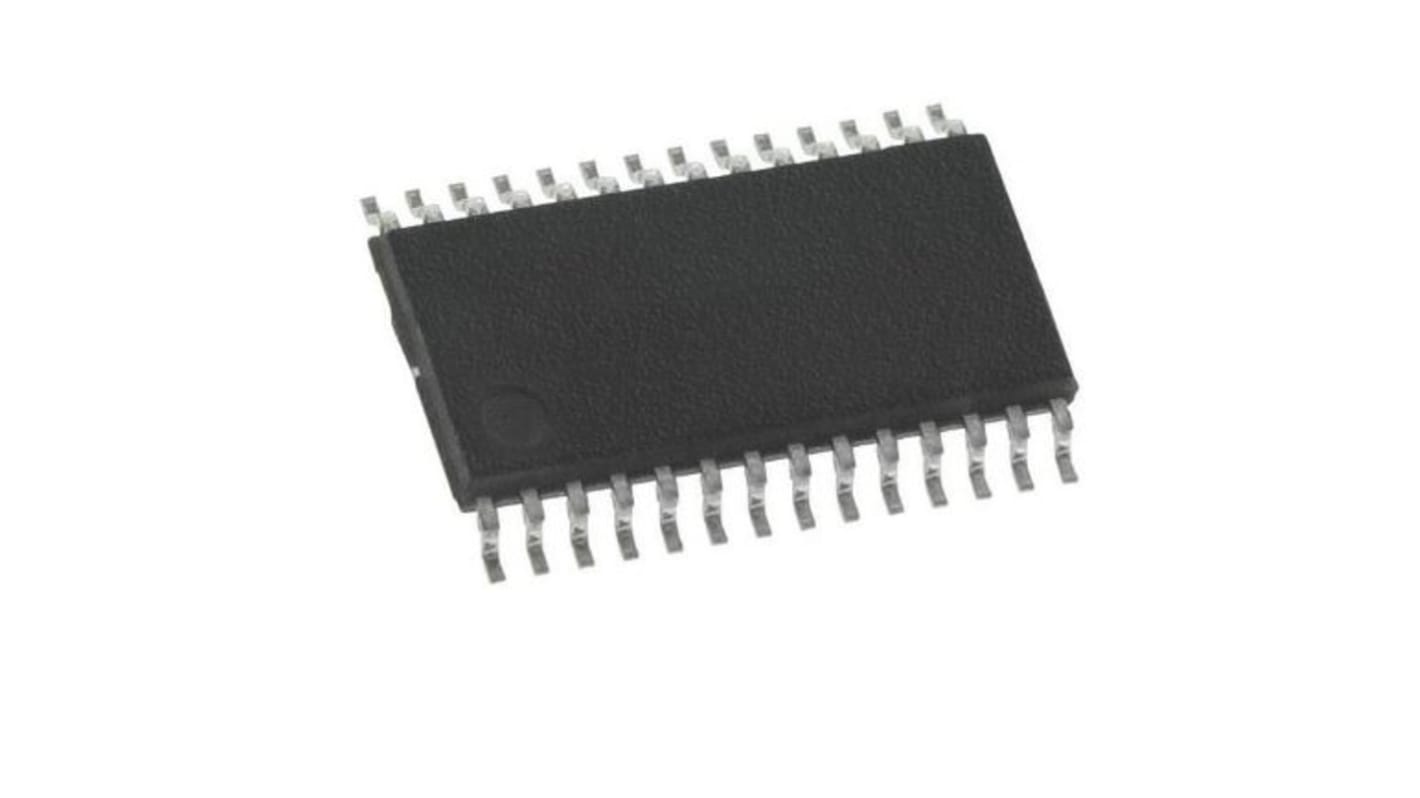

Renesas Electronics PLL Clock Generator 4 28-Pin 3.47 V TSSOP
- RS Stock No.:
- 216-6266
- Mfr. Part No.:
- 9FG104EGILFT
- Brand:
- Renesas Electronics
Subtotal (1 reel of 2000 units)*
£7,110.00
(exc. VAT)
£8,532.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £3.555 | £7,110.00 |
*price indicative
- RS Stock No.:
- 216-6266
- Mfr. Part No.:
- 9FG104EGILFT
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | PLL Clock Generator | |
| Maximum Output Frequency | 400MHz | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 28 | |
| Maximum Input Frequency | 400MHz | |
| Number of Outputs | 4 | |
| Minimum Supply Voltage | 3.14V | |
| Maximum Supply Voltage | 3.47V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 9.7mm | |
| Width | 4.4 mm | |
| Height | 1mm | |
| Series | 9FG104EGILFT | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type PLL Clock Generator | ||
Maximum Output Frequency 400MHz | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 28 | ||
Maximum Input Frequency 400MHz | ||
Number of Outputs 4 | ||
Minimum Supply Voltage 3.14V | ||
Maximum Supply Voltage 3.47V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 9.7mm | ||
Width 4.4 mm | ||
Height 1mm | ||
Series 9FG104EGILFT | ||
Automotive Standard No | ||
The Renesas Electronics ICS9FG104E is a frequency generator that provides 4 differential HCSL output pairs. It can be used to drive PCIe Gen1/2, SATA and USB3.0 devices. The part can use either a 14.31818 MHz or 25 MHz crystal. The 9FG104E can also be driven by a reference input clock instead of a crystal. It provides outputs with cycle-to-cycle jitter of less than 50 ps and output-to-output skew of less than 35 ps.
Generates common frequencies from 14.318MHz or 25MHz
Crystal or reference input
4 - 0.7V current-mode HCSL output pairs
Supports Serial-ATA at 100MHz
Two spread spectrum modes: -0.5% down spread and +/-0.25% center spread; Lower EMI
