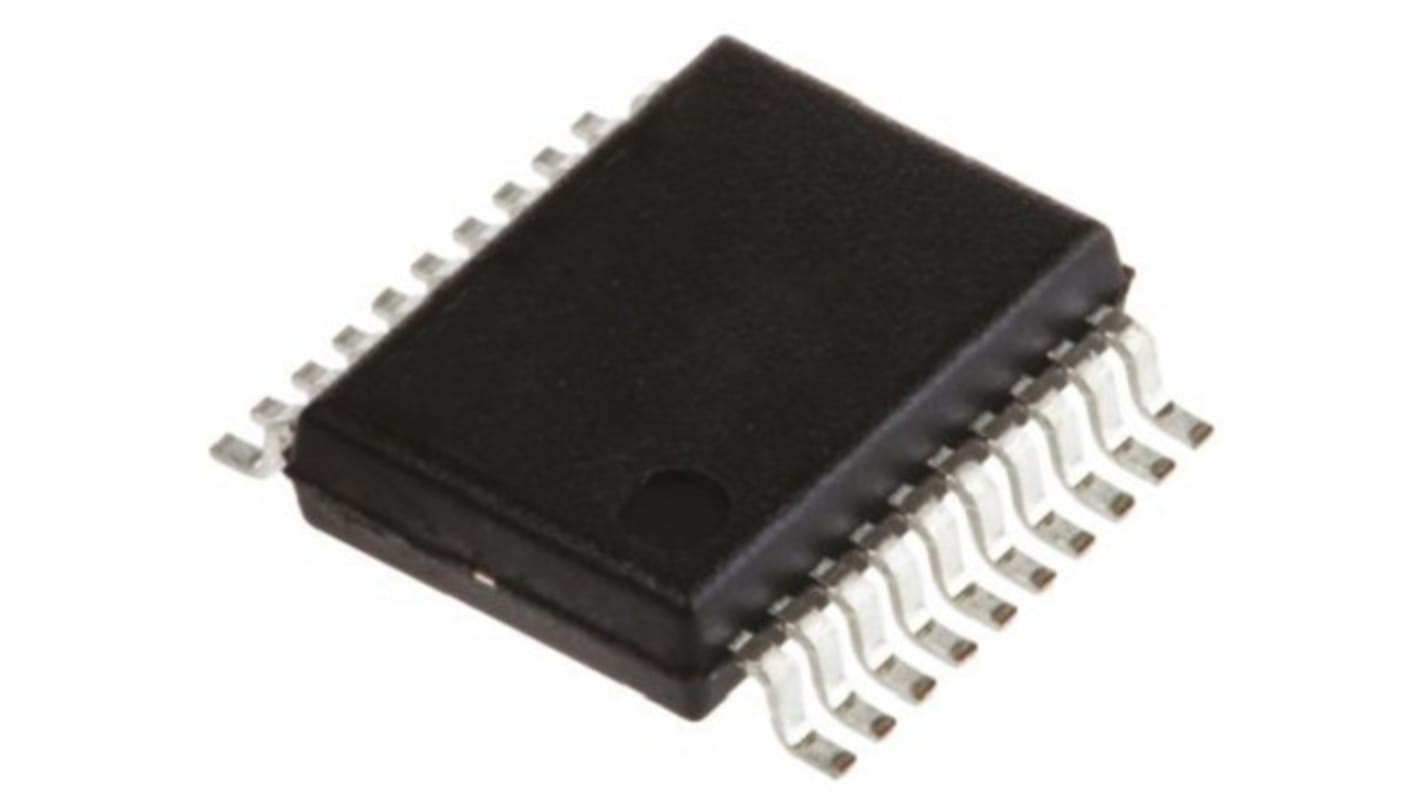

Renesas Electronics 49FCT3805PYG8 Clock Buffer, 20-Pin SSOP
- RS Stock No.:
- 262-8952
- Mfr. Part No.:
- 49FCT3805PYG8
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.15
(exc. VAT)
£6.20
(inc. VAT)
Add 60 units to get free delivery
In Stock
- 1,485 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.03 | £5.15 |
| 50 - 95 | £0.876 | £4.38 |
| 100 - 245 | £0.722 | £3.61 |
| 250 - 495 | £0.67 | £3.35 |
| 500 + | £0.594 | £2.97 |
*price indicative
- RS Stock No.:
- 262-8952
- Mfr. Part No.:
- 49FCT3805PYG8
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Clock Buffer | |
| Package Type | SSOP | |
| Minimum Supply Voltage | -0.5V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 4.6V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Series | IDT49FCT3805/A | |
| Automotive Standard | No | |
| Maximum Output Frequency | 1GHz | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Clock Buffer | ||
Package Type SSOP | ||
Minimum Supply Voltage -0.5V | ||
Pin Count 20 | ||
Maximum Supply Voltage 4.6V | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Series IDT49FCT3805/A | ||
Automotive Standard No | ||
Maximum Output Frequency 1GHz | ||
The Renesas Electronics Clock driver is non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fan-out and its own output enable control. The device has a heartbeat monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The clock driver offers low capacitance inputs with hysteresis. The clock driver is designed for high speed clock distribution where signal quality and skew are critical.
0.5 micron CMOS technology
Very low CMOS power levels
Two independent output banks with 3-state control
Inputs can be driven from 3.3V or 5V components
