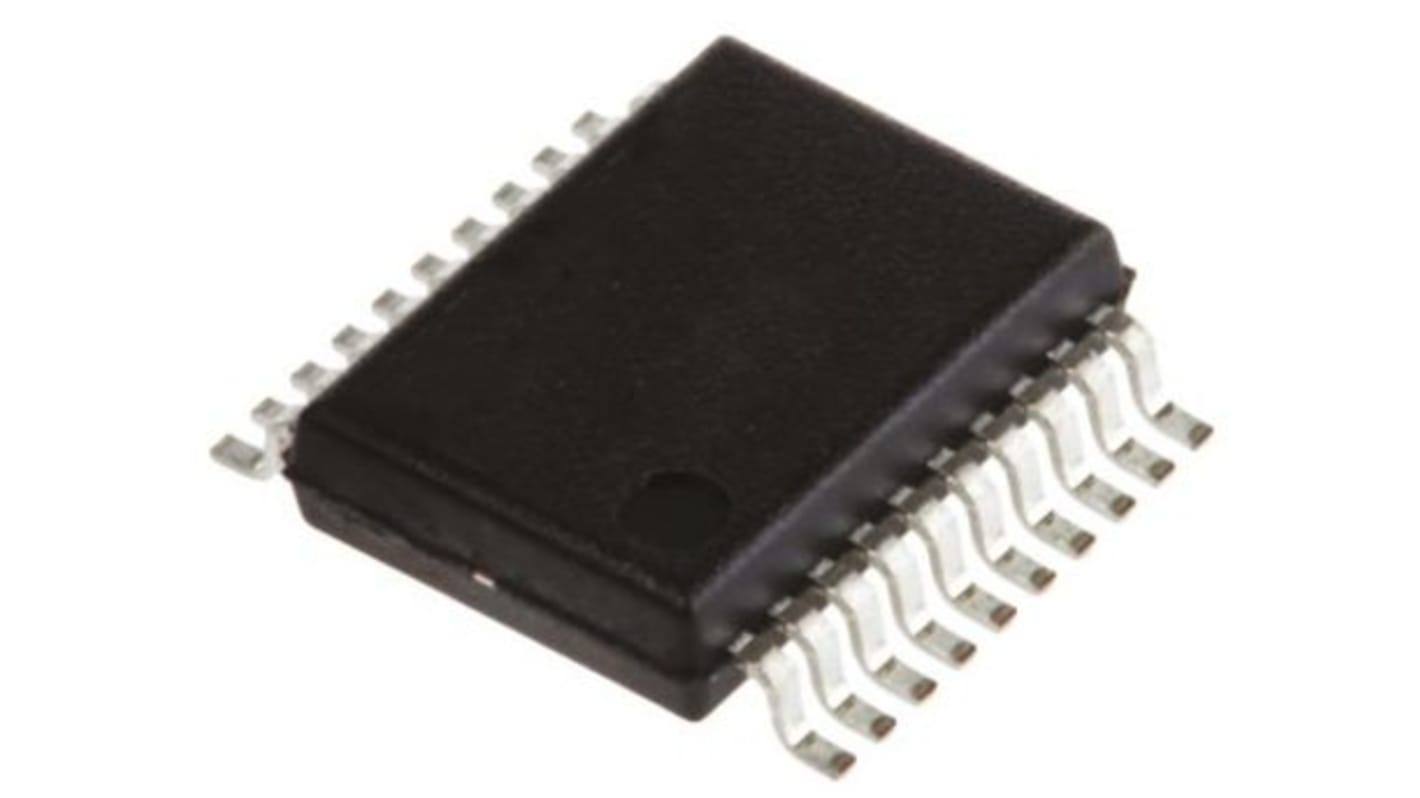

Renesas Electronics 49FCT3805EPYGI PLL Clock Driver, 20-Pin 5 SSOP
- RS Stock No.:
- 217-7824
- Mfr. Part No.:
- 49FCT3805EPYGI
- Brand:
- Renesas Electronics
Subtotal (1 pack of 5 units)*
£17.20
(exc. VAT)
£20.65
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1,215 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.44 | £17.20 |
*price indicative
- RS Stock No.:
- 217-7824
- Mfr. Part No.:
- 49FCT3805EPYGI
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | PLL Clock Driver | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.3V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | 49FCT3805E | |
| Width | 5.3 mm | |
| Height | 1.72mm | |
| Length | 7.2mm | |
| Number of Outputs | 5 | |
| Maximum Output Frequency | 166MHz | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type PLL Clock Driver | ||
Mount Type Surface | ||
Package Type SSOP | ||
Pin Count 20 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.3V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series 49FCT3805E | ||
Width 5.3 mm | ||
Height 1.72mm | ||
Length 7.2mm | ||
Number of Outputs 5 | ||
Maximum Output Frequency 166MHz | ||
Automotive Standard No | ||
The Renesas Electronics FCT3805 is a 3.3 volt clock driver built using advanced CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT3805 offers low capacitance inputs.
0.5 MICRON CMOS Technology
Guaranteed low skew < 500ps (max.)
Very low duty cycle distortion < 1.0ns (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
Inputs can be driven from 3.3V or 5V components
Two independent output banks with 3-state control
1:5 fanout per bank
"Heartbeat" monitor output
VCC = 3.3V ± 0.3V
Available in SSOP, SOIC, and QSOP packages
